h Set the transceiver to CH 2 (band center, narrow de-
viation) via the “Channel” box on the “Alignment” win-
dow.
i Click the left mouse button on the “Start” button.
j Move the Slide Bar, as needed as, so that the deviation
meter reading is 0.45 kHz ± 0.1 kHz.
k Press the “OK” box to lock in the new data.

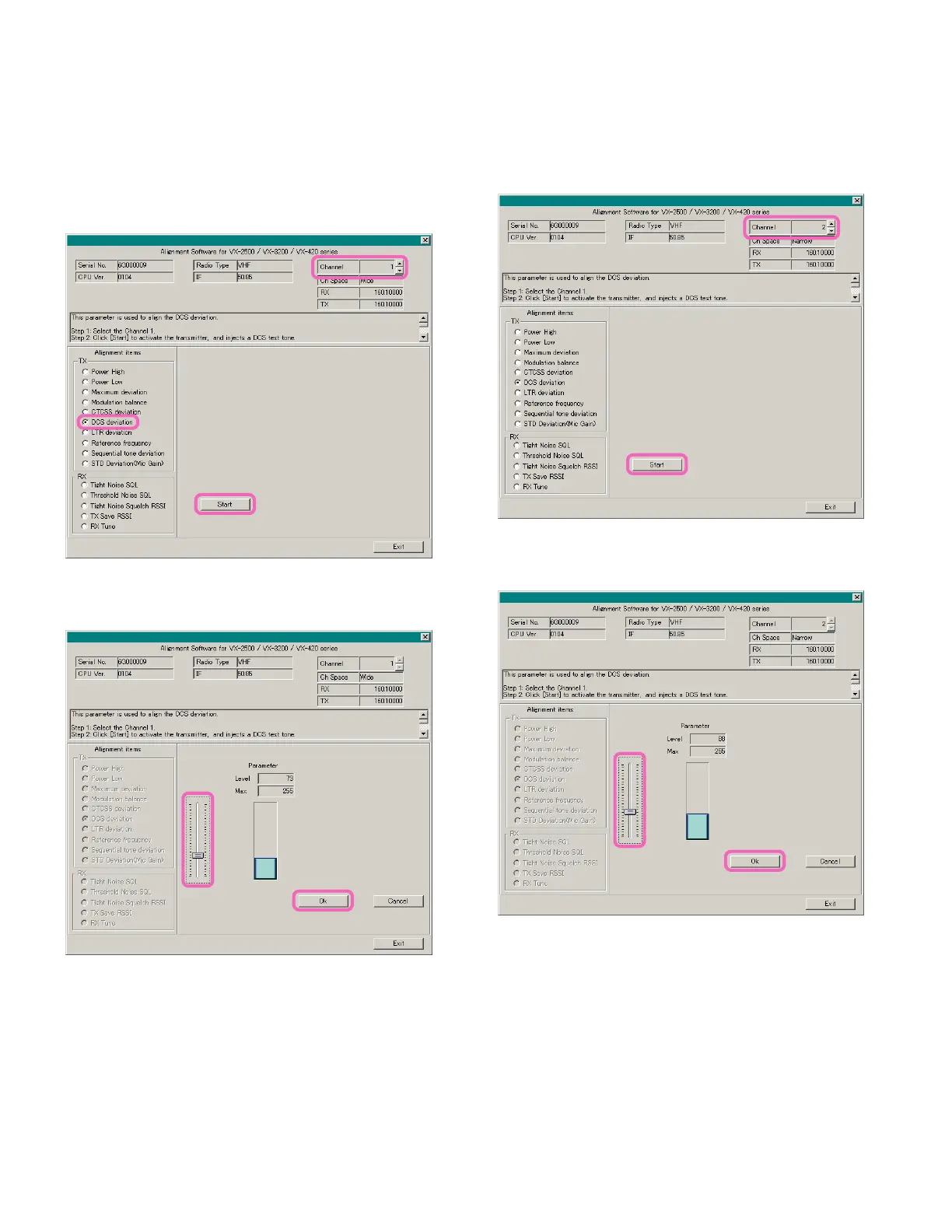

DCS Deviation
c Set the transceiver to CH 1 (band center, wide devia-
tion) via the “Channel” box on the “Alignment” win-
dow previously.
d Click the left mouse button on the “DCS Deviation”
button.
e Click the left mouse button on the “Start” button.
f Move the Slide Bar, as needed as, so that the deviation
meter reading is 0.6 kHz ± 0.1 kHz.
g Press the “OK” box to lock in the new data.
c
d
e
f
g
h
i
j
k
Alignment
To Next Page
