LMV321IDCKR (R3x)
(Q2064)
DA221 (K)
(D2020)
DTA144EE (16)
(Q2039)
2SC4081 (B)
(Q2006, 2034, 2037,
2044, 2045)
2SA1576A (F)
(Q2004, 2066)
CPH6102 (AB)
(Q2007)
IMZ2A (Z2)
(Q2003)
NJM2070M
(Q2005)
LTST-S326KGJRKT
(D2039)
DTC114TE (04)
(Q2035, 2046)
BR93L86RFVM-WTR
(Q2036)
NJM12904R
(Q2054)
LC87F7BC8A
(Q2047)
BD4835FVE (DR)
(Q2040)
UMX1N (X1)
(Q2002, 2024)
A B
2
C D E F G
1
3
4

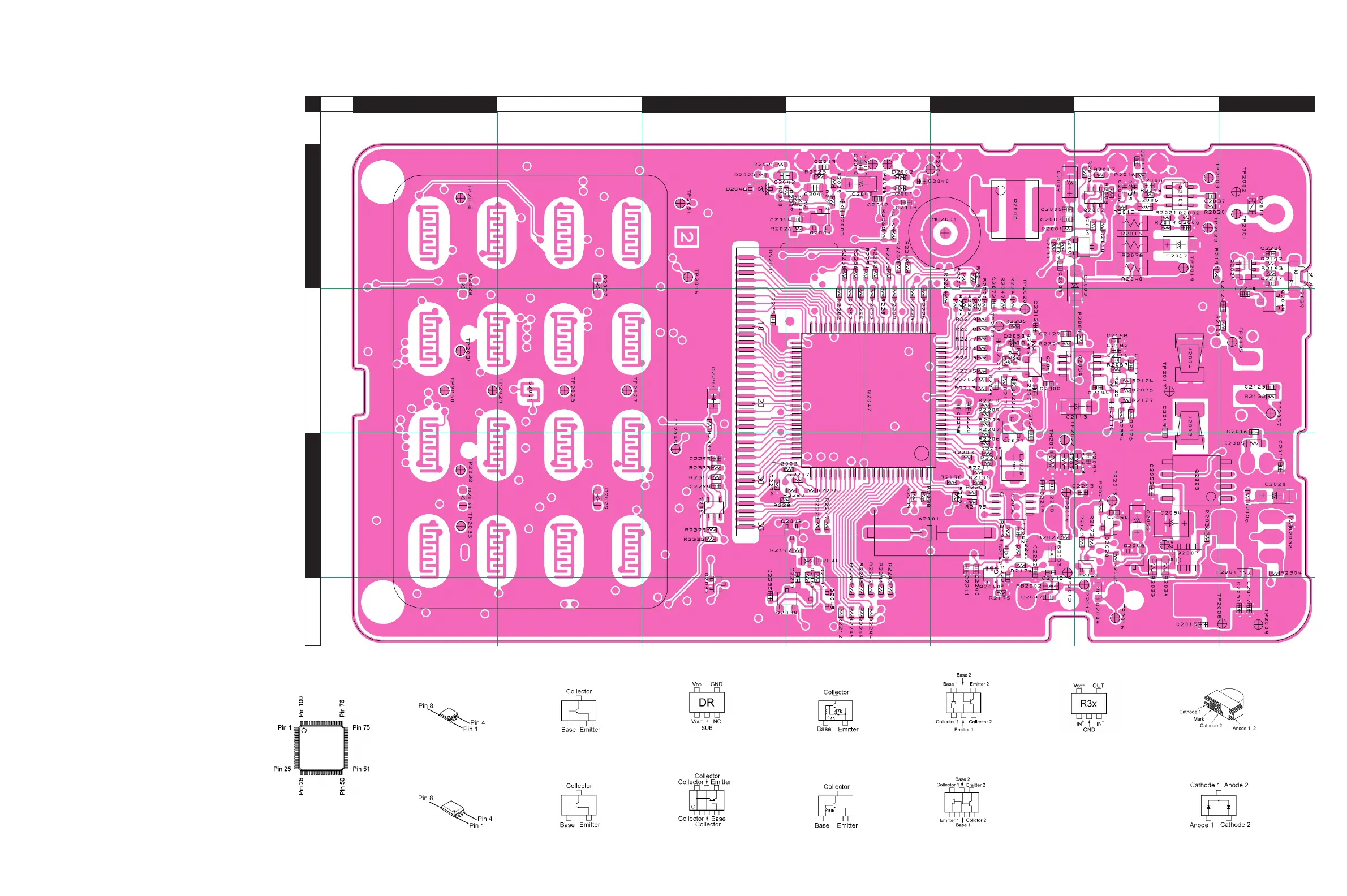

Parts Layout (Side A)
MAIN-2 Unit (Lot. 6 ~)
