Vertical Express LD-16 - Westinghouse Interlocks Model E5 A (364 AK_)

LD-16 Door Operator - Modernization Clutch Assemblies
October 2021 - 88420 v.1.0
A-5
Clutch Assemblies
(continued)

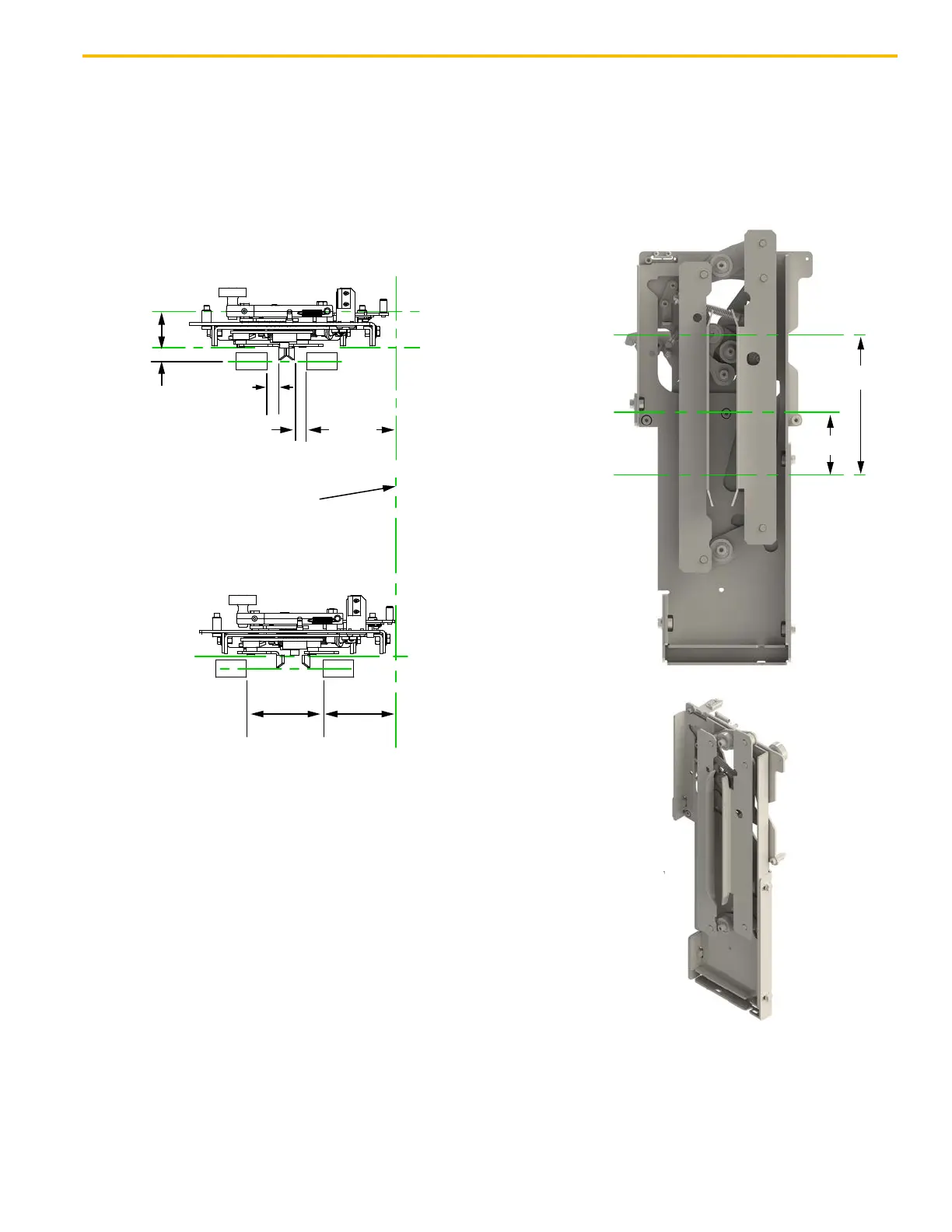

3.805"
8.535"
Top of
Door
Track
Center of
Interlock
Blocks
Clear
Opening
• When using this clutch with side opening doors,
locate the door operator so that the center line
of the door closed stop aligns with the strike side
of the clear opening.
• Dimensions to interlock rollers on this page are
for reference only.
• TKE LH shown, RH opposite.
Isometric View
3
w
1.894"
4.823"
.787"
.688"
.295"
4.823"
CLUTCH RETRACTED
Operator
Hanger
Plate
CLUTCH ENGAGED
Center Line of
Door Closed Stop
(Daylight Line for
Side Opening Doors)
Car
Sill
Line
2.079"-2.630"
Car
Sill
Line
Westinghouse Interlocks Model E5A (364AK_)
