Single-Speed Side-Opening Doors LD-16 Door Operator - Modernization
8 © Vertical Express
Single-Speed Side-Opening Doors
Integral Cab Header Installation
1. Ensure that the car will run on runbug operation.
2. Remove the doors and the related door components and keep these items if they
will be reused. Keep all removed components until elevator is running. See Figure 1.

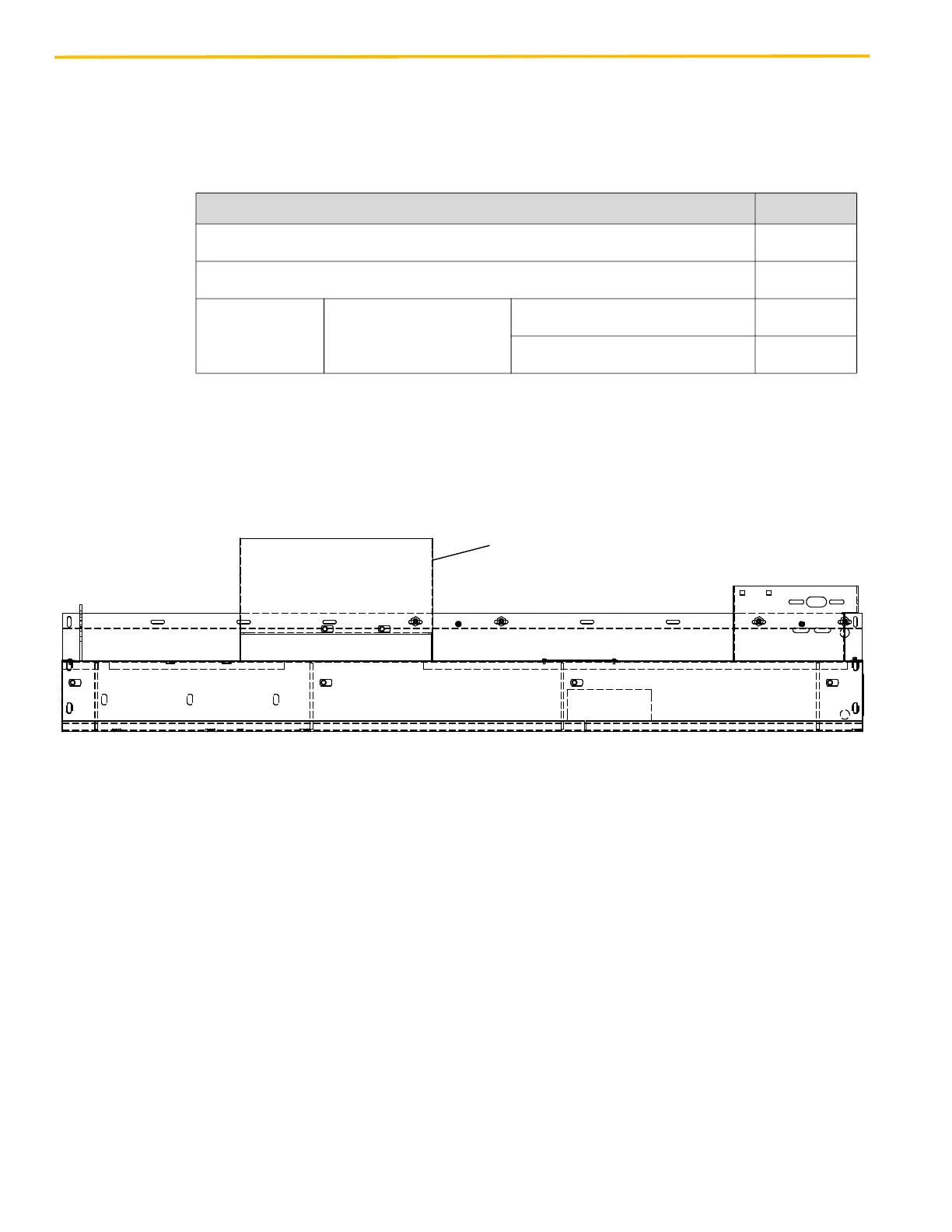

Figure 1 - Header Modifications
3. Remove the existing door operator wiring harness and the Car Top Station (CTS).
4. Remove all door operator parts and components that interfere with new equipment.
5. Remove part of the header (for clearance of the mounting angles) so that it is even
with the top of the header. See Figure 2 on page 9.
6. Use the included hardware to install the mounting angles. See Figure 3 on page 9
for Dimension C.
Other Installation Configurations Starts on
Single-Speed Center-Opening Doors Integral Cab Header page 21
Two-Speed Side-Opening Doors Integral Cab Header page 15
Existing Cab Not Integral Cab Header
“Universal MOD Kit (200CJD)” page 28
“Separate Header Installation” page 35
If MOD is on an existing TKE linear door
operator, retain the rear support cover and
the ¼" hardware used for the car top box.
• Header shown is for a TKE linear operator, 42'' opening width.
• Headers for HD and other widths will be different.
