Car Door Panel Adjustment
1. Move the door hanger(s) to the fully closed position against the LD-16 bumper. See
Figure 42.
For center-opening doors: secure the door hanger(s) with a cable tie for easier
adjustment.
2. Adjust doors until the upper and lower leading edge of door panel makes contact
with either the LD-16 bumper or the opposite door panel on center-opening doors.
3. Verify that the door-to-sill clearance is between
3
/
16
" and
5
/
16
".

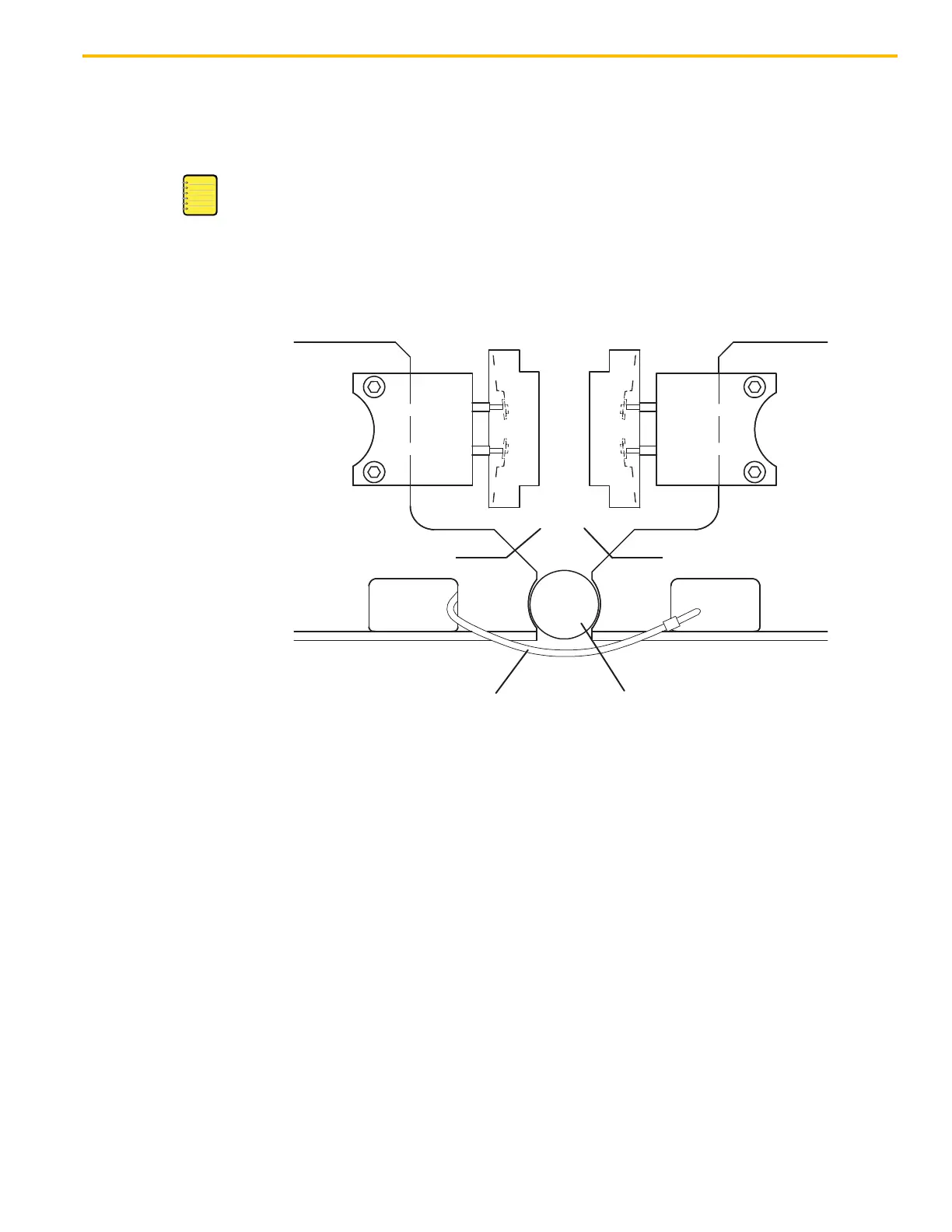

Figure 42 - Door Hanger Fully Closed Position Against Bumper
4. Use a 13 mm wrench to tighten the eccentric bolt; then tighten the mounting bolts.
See Figure 43 on page 48.
5. Set a
1
/
4
" –
3
/
8
" required gap (per code) between the transom, the returns, and the
door panel.
a. Loosen the
1
/
2
" bolts that attach the interface angle to the top of the car door.
b. Tighten the
1
/
2
" hardware.
6. Install the gibs.
7. Verify that the car door travels freely along the entire path of travel and also
maintains a
1
/
4
" –
3
/
8
" gap during travel.

Door Hanger
Bumper
Cable Tie
Door Hanger
(center-opening
door shown)
