Vertical Express LD-16 - DIP Switch Settings

LD-16 Door Operator - Modernization Clutch Installation and Adjustment
October 2021 - 88420 v.1.0
53
Adjust Door Contacts and Door Lock Contact (Relating Cable Adjustment)
Center-Opening Doors
1. Verify the distance from the bumpers to the pendants is equal for both pendants.
If the distance is not equal:
a. Loosen the set screw on the rope guide (relating cable rope guide).
b. Move the car door hanger until the distance is equal for both pendants.
c. Tighten the set screws on the rope guide.
All Other Doors
2. When the door lock pins are just touching the door contacts, verify that the mea-
surement between the door hanger and the bumper is
1
/
8
". See Figure 48.
If the measurement is not
1
/
8
":
a. Loosen the screws.
b. Move the bracket(s).
c. Verify that the measurement is
1
/
8
".

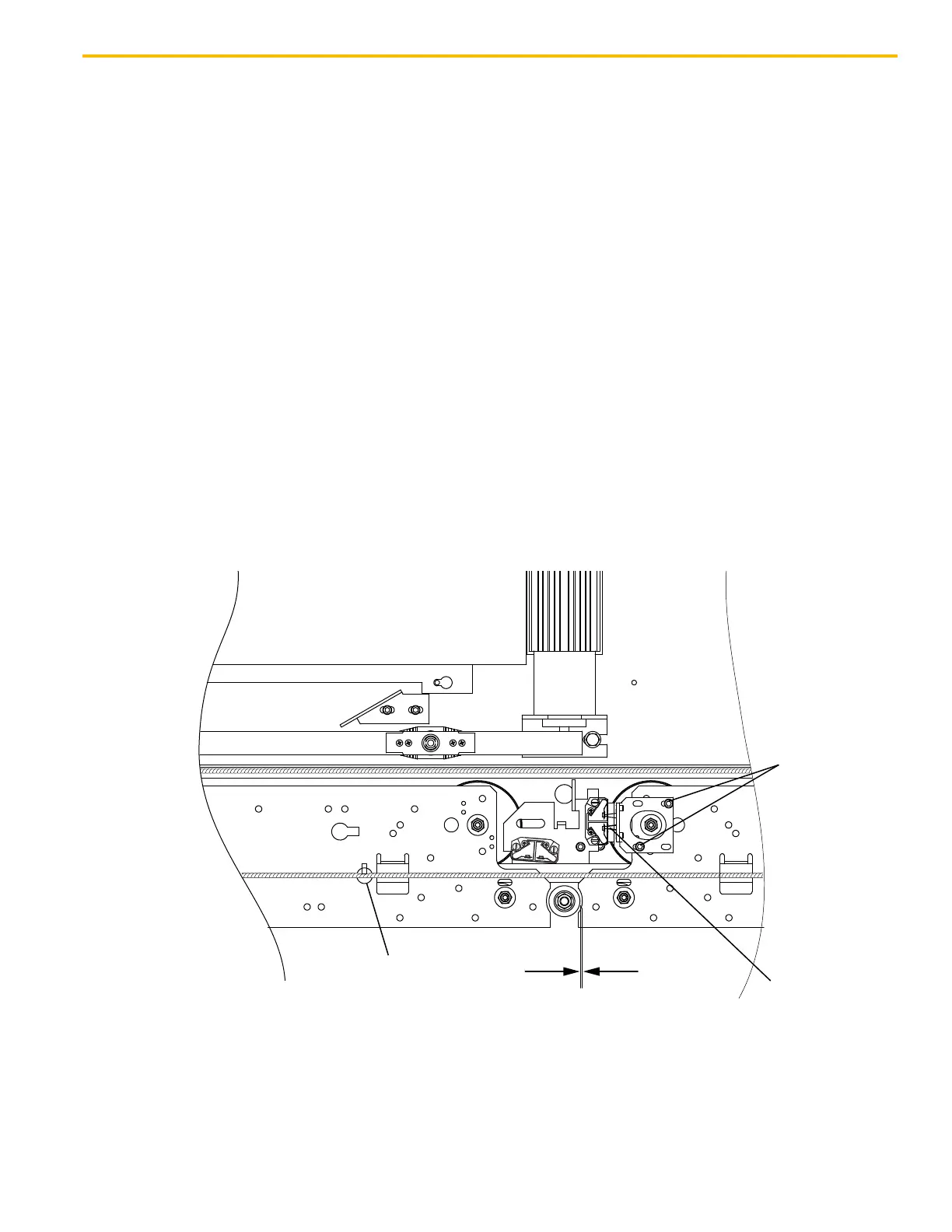

Figure 48 - Adjust Door Contacts/Door Lock Contact (Center-Opening Shown)
Loosen Screws
Rope Guide
Gate Contact
Shorting Bar
ƺȚ
