LD-16 Door Operator - Modernization Electronic Setup & Adjustment
October 2021 - 88420 v.1.0
61
DIP Switch Settings
Disconnect power from door operator when changing DIP Switch settings.
Verify DIP Switch settings. See Figure 55 below and Tables 1 and 2 on page 62.

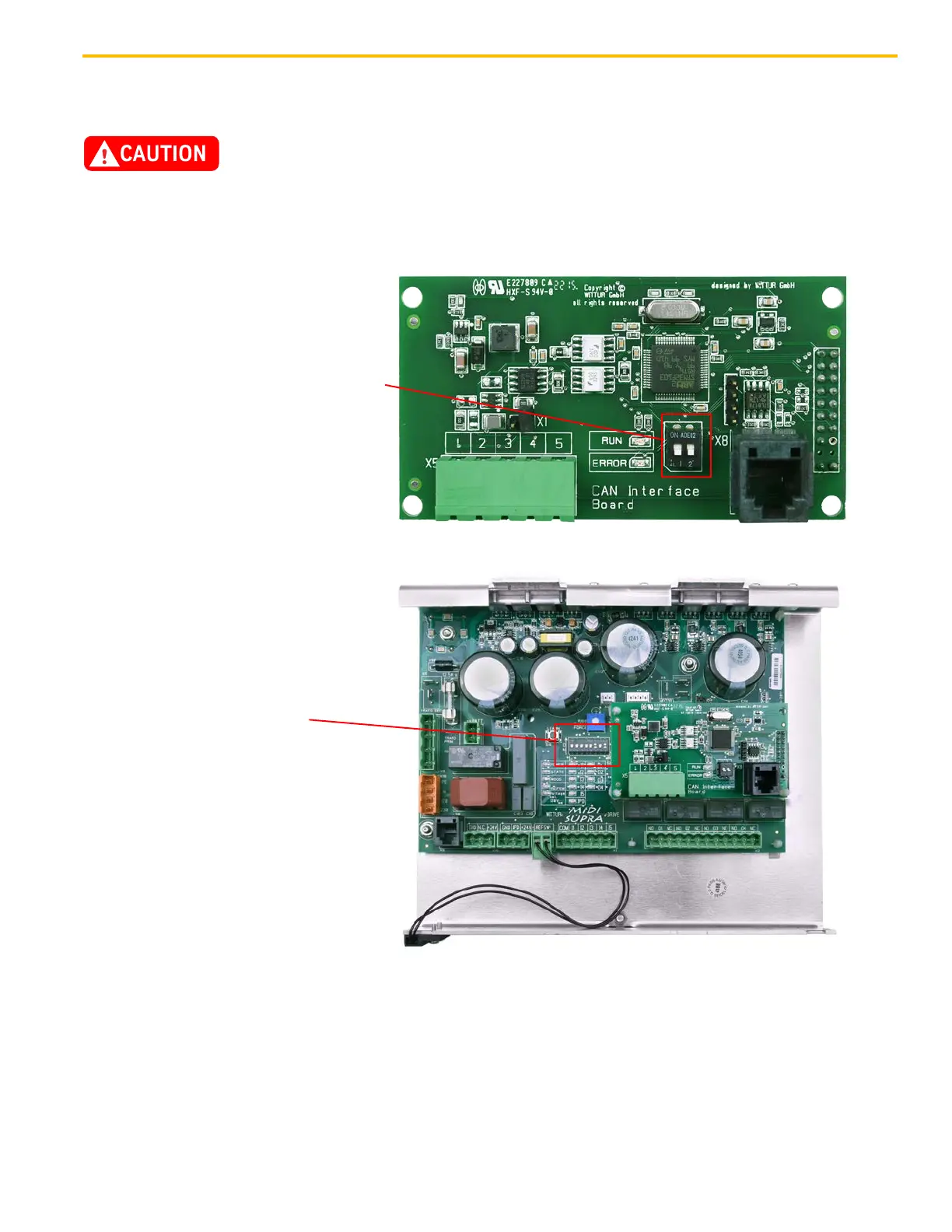

Figure 55 - DIP Switch Default Settings
CAN Interface Board
Door Operator Control Board
Serial Communications
DIP Switch 2 & 8 = ON
All Others = OFF
Discrete Interface
DIP Switch 2 = ON
DIP Switch 1, 3, 4, 7 = OFF
DIP Switch 5 & 6 = Desired Speed
Pattern - See Table 1 on page 62.
DIP Switch 1: Front = OFF, Rear = ON
DIP Switch 2: OFF
