Vertical Express LD-16 - Block LD-16 Clutch Open

New/Existing Car Door Panel Installation LD-16 Door Operator - Modernization
48 © Vertical Express
Car Door Panel Adjustment
(continued)

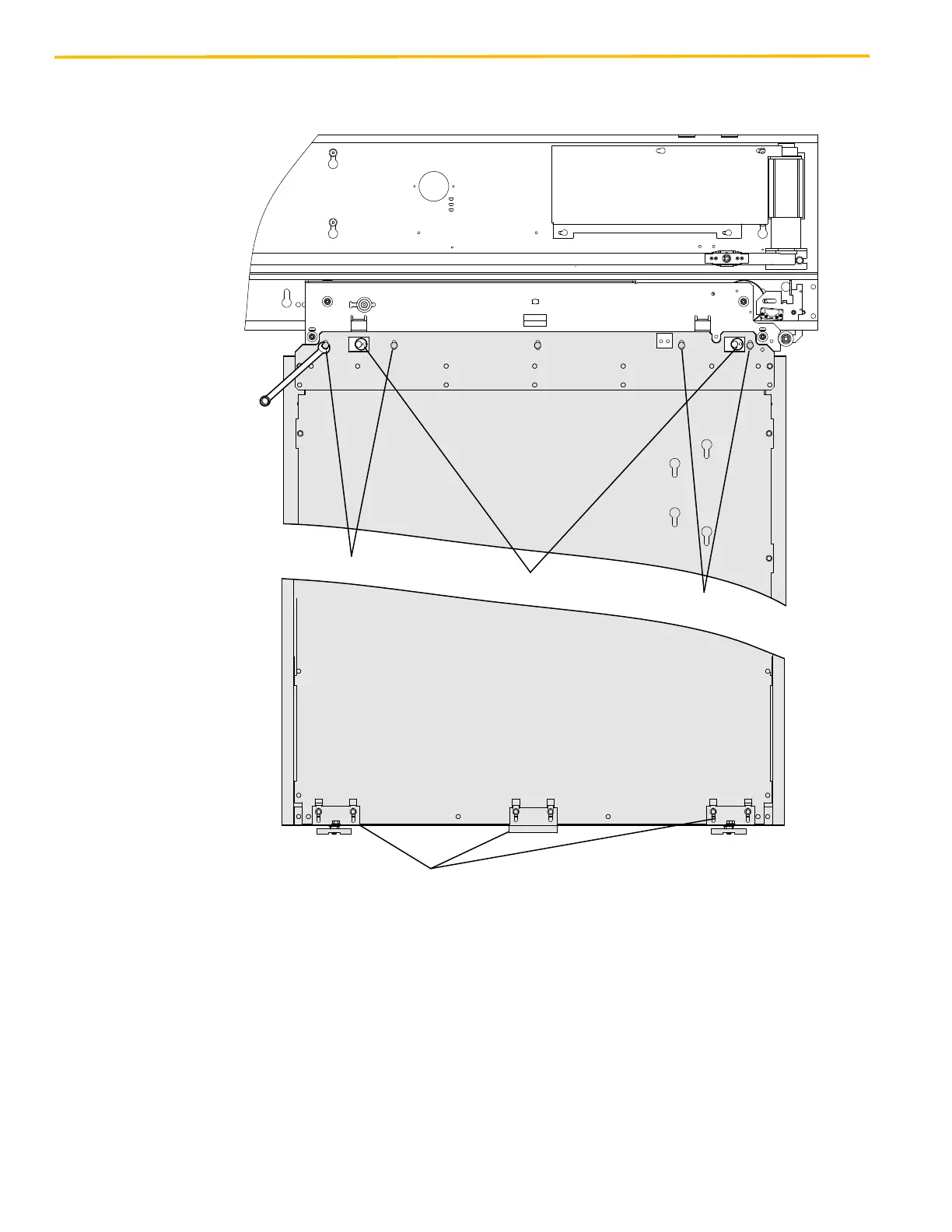

Figure 43 - Tighten Mounting Bolts
Set Eccentrics on the Car Door Hanger
1. Verify that the gap between the upthrust roller and the rail is
1
/
64
".
2. If the upthrust roller needs adjustment, loosen the nut and use the Allen wrench to
turn the roller shaft.
8 mm Hardware
8 mm Hardware
Door Gibs
Eccentric Bolts
