Existing Cab Header Installation
(continued)
Universal MOD Kit (200CJD)
1. Remove any doors or equipment that may interfere with the LD-16 Door Operator.
2. Install the strut. See Figure 23.
• The strut may require notching depending on job conditions. This applies to all
parts in the Universal MOD Kit.
• The dimensions shown in the following drawings are reference points and
apply to TKE or Dover equipment ONLY.
a. Place the strut above the cab transom face or the return per the applicable
dimensions:
• Single-Speed and Center-Opening: 1
1
/
16
"
• Two-Speed and Two-Speed Center-Opening:
5
/
8
"
b. Cut off the excess material.

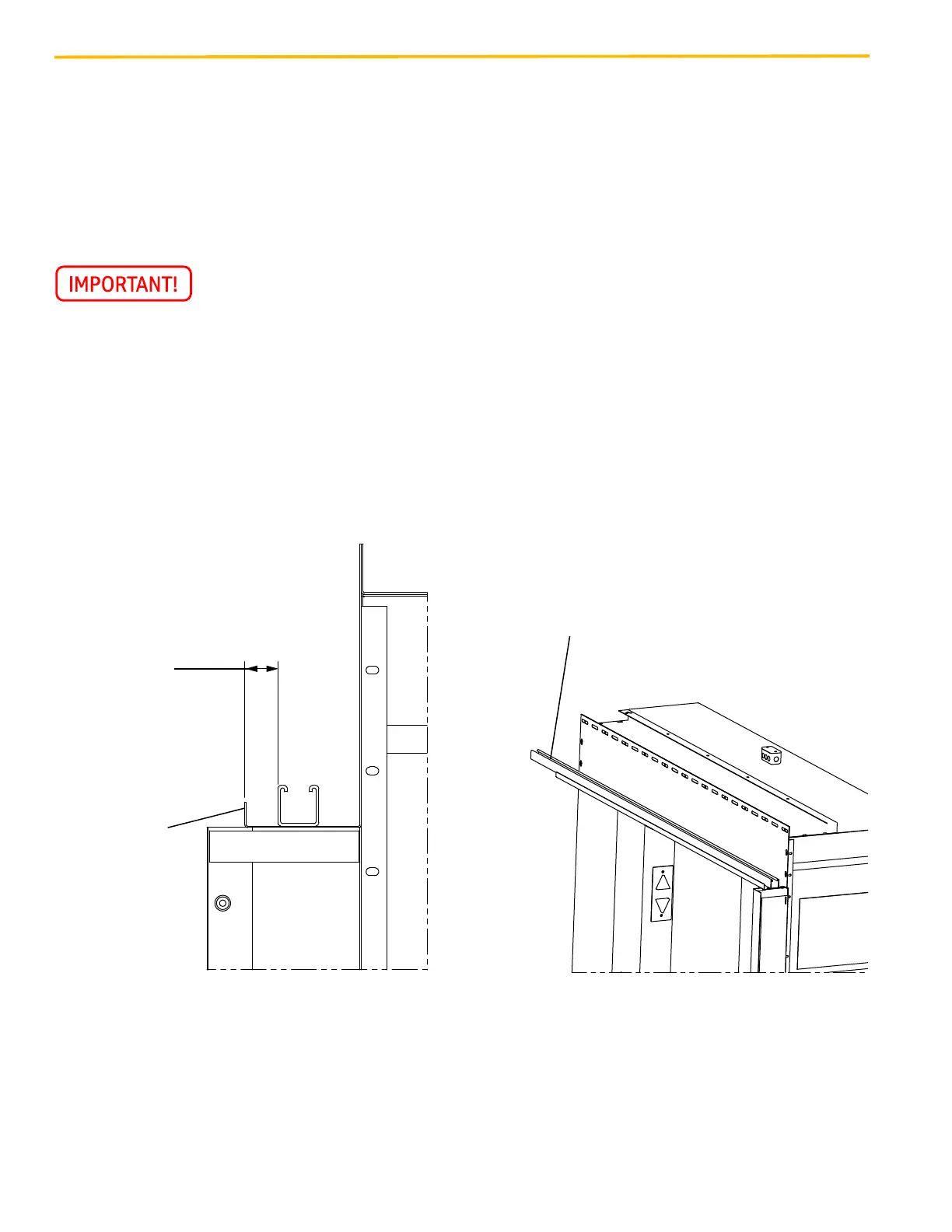

Figure 23 - Strut Installation
Cab Transom
Face or Return
qÛÃôûðĀûǏĀûNģđ¦°ôô
SS, CO:
1ƣƭƍƒ"
2S, 2SCO: ƼȚ
Dimensions shown are reference points and apply to TKE or Dover equipment ONLY.
