Vertical Express LD-16 - Clutch Operating Space

LD-16 Door Operator - Modernization Clutch Assemblies
October 2021 - 88420 v.1.0
A-7

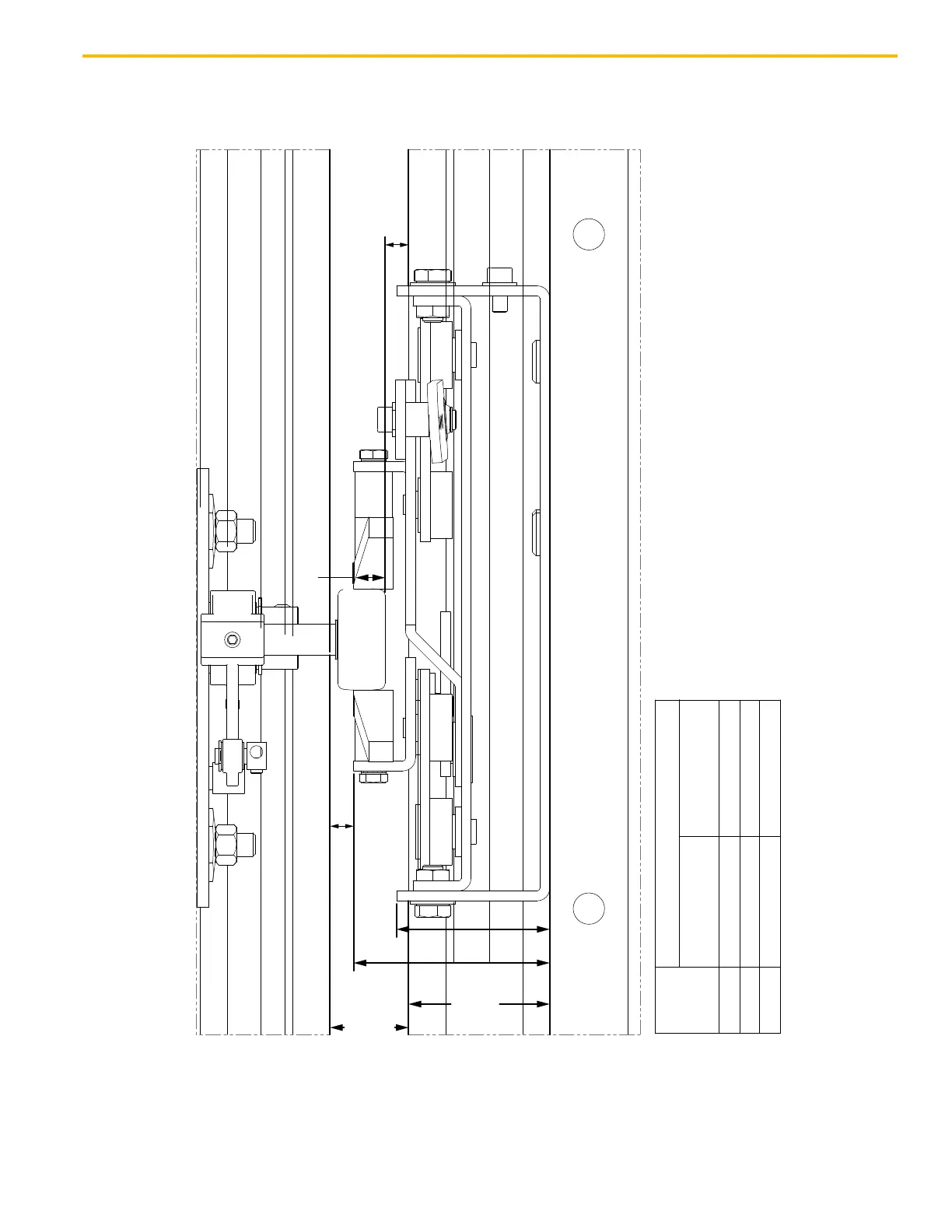

Clutch Operating Space
Sill
To
Sill
Required Space Car Door To Car Sill
For .375 Running
Clearance
For .250 Running
Clearance
1.250
1.566
1.441
1.000
1.816
1.691
0.900 1.916 1.791
364AG Shown
.375 typ. (0.250 min.)
Running Clearance
3.347
2.441
Clutch Height
2.441
Clutch Base
.500 typ. (0.400 min.)
Engagement
.375 typ. (0.250 min.)
Running Clearance
1.250 typ.
(0.900 min.)
Sill to Sill
2.250 typ.
Car Door
to Car Sill
