LD-16 Door Operator - Modernization Existing Cab Header Installation
October 2021 - 88420 v.1.0
29
Universal MOD Kit
(continued)
3. Use the included hardware to install the door operator mounting angles to the strut.
See Figure 24 on page 29.
• Single-Speed and Center-Opening = 1
1
/
16
" (to have
5
/
16
" door panel to cab
running clearance).
• Two-Speed and Two-Speed Center-Opening =
5
/
8
"
4. Use the included hardware to install the door operator header to the mounting
angle. See Figure 24 on page 29.
For side-opening: align one end of the header plate with the clear opening.

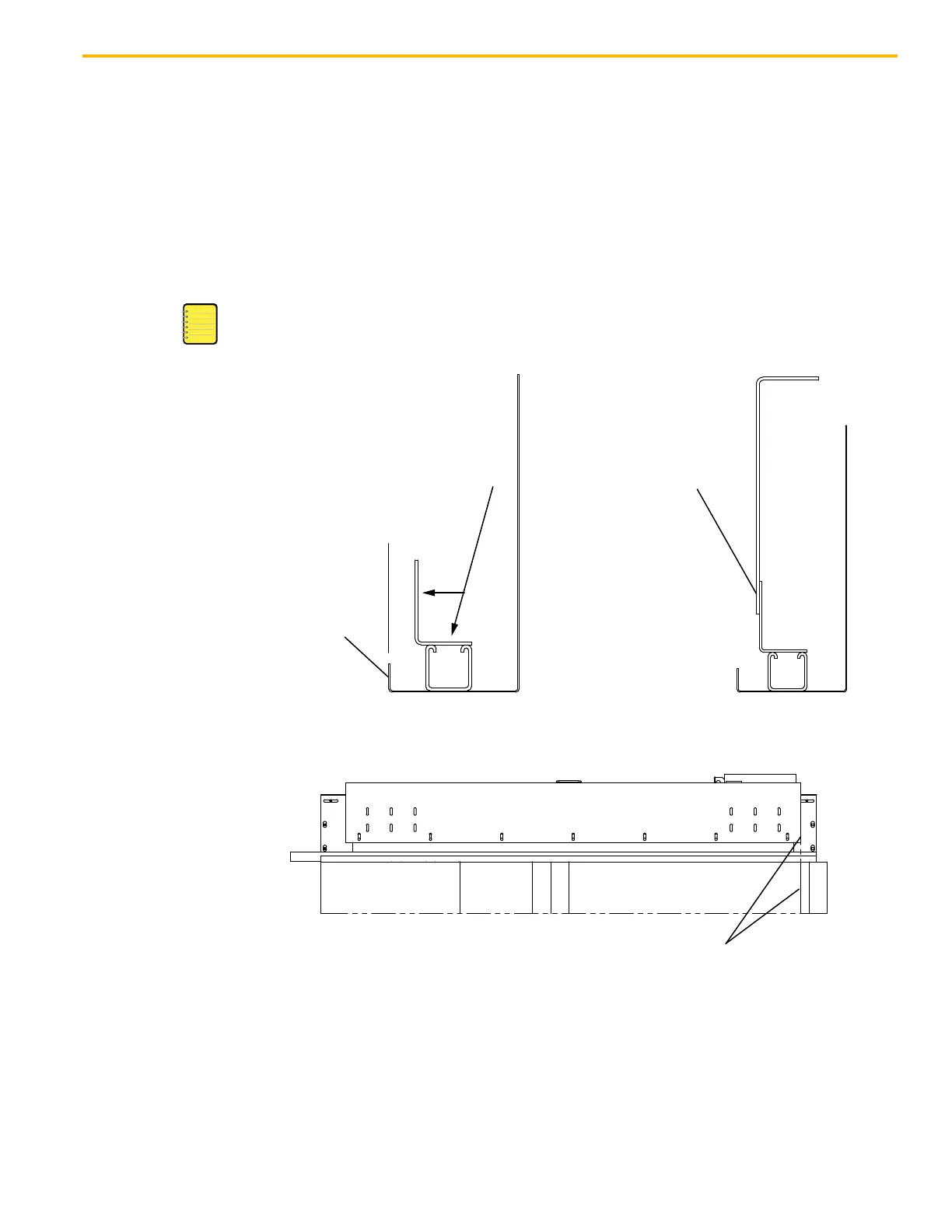

Figure 24 - Mounting Angles and Header Installation
For Side-Opening: Align One End of the Header Plate with the Clear Opening
Attach Angle to Strut
Face of Cab
Transom & Return
Attach Header to Angle
