Vertical Express LD-16 - Page 111

LD-16 Door Operator - Modernization Harness Assembly Diagrams
October 2021 - 88420 v.1.0
A-15

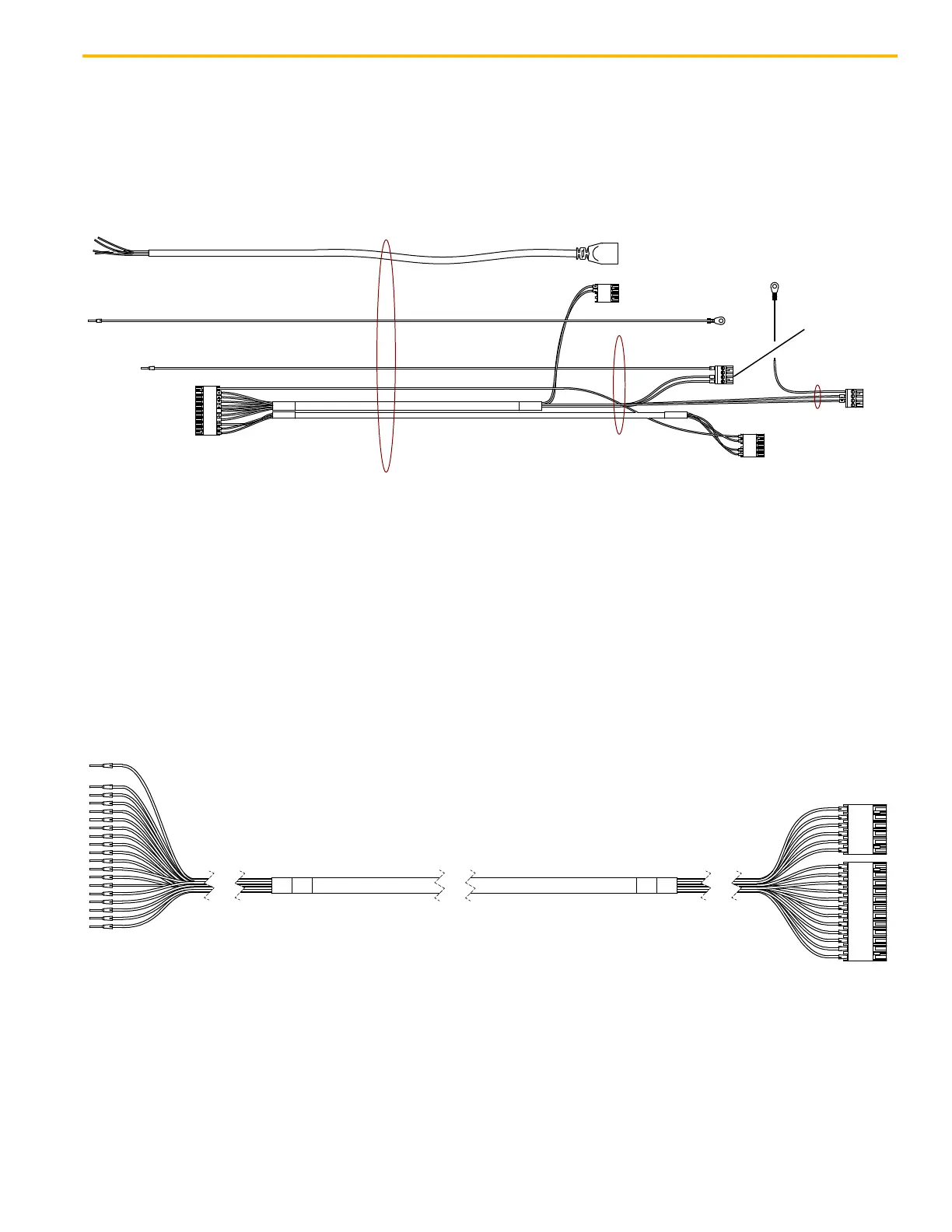

Harness Assembly Diagrams - COP Extension, 462AEN_
(continued)
OPERF
CAN
X19
STOP
BLK/BRN = L10
WHT/BLU = L20
PIN 1
PIN 1
PIN 1
PIN 1
PIN 1
GATE
Type: CTB
Use: Front, No Inspection Station
Print No: 462AEN004
X1
X2
Type: Discrete
Use: Add On
Print No: Front, 462AEN005
Print No: Rear, 462AEN006
