LD-16 Door Operator - Modernization Existing Cab Header Installation
October 2021 - 88420 v.1.0
33
Universal MOD Kit
(continued)

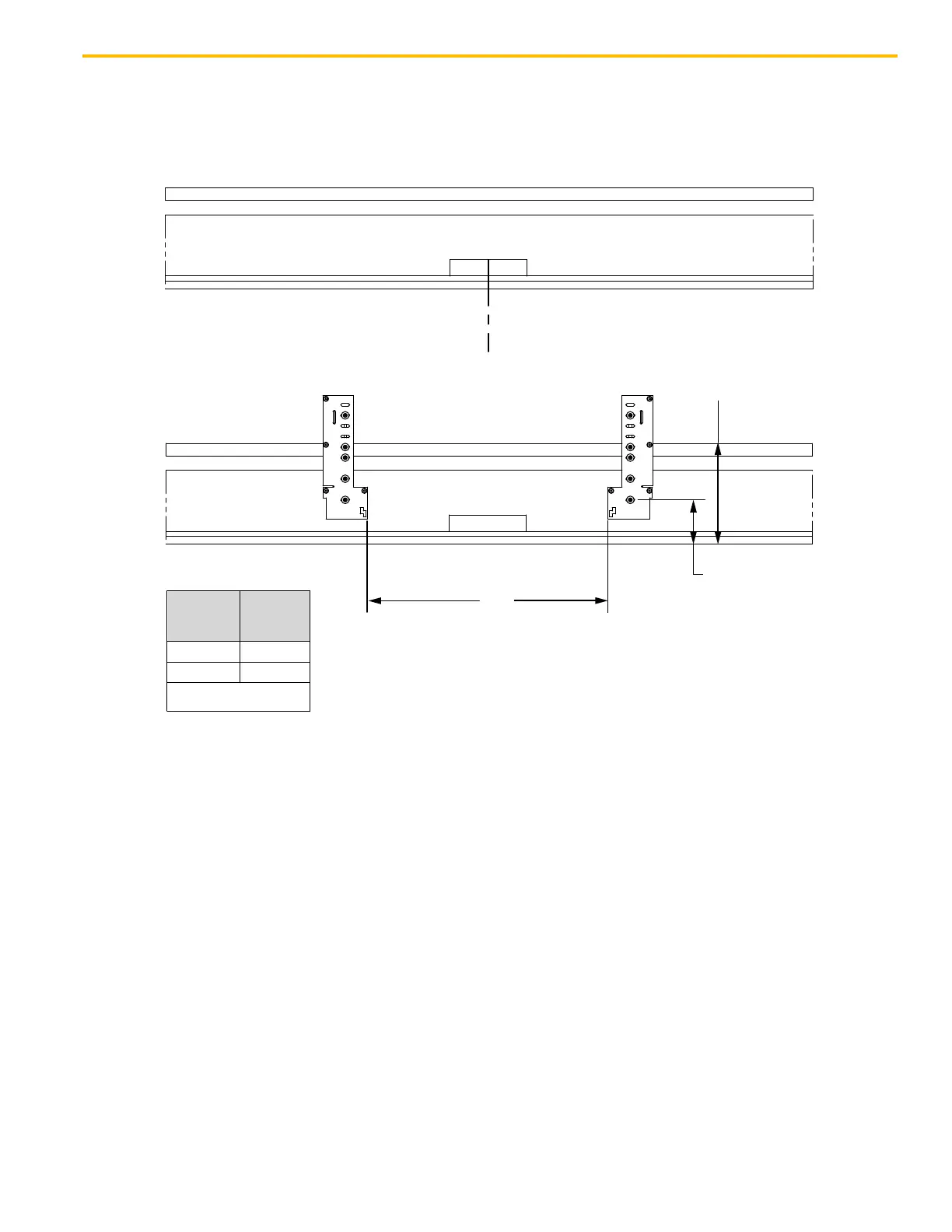

Figure 28 - Center-Opening Fixing Brackets
CO
Clear
Opening
B
32 - 54
56 - 60
31 ƞƭІЋ
41 ƞƭІЋ
(all dim. in inches)
Center of Clear Opening
B
Clear Opening
13 ƠƭЈЇ"
(for ¾" door lap)
5
ƤƧƭЈЇ"
(for ¾" door lap)
Dimensions shown are reference points and apply to TKE or Dover equipment ONLY.
