Vertical Express LD-16 - Car Door Panel Adjustment

LD-16 Door Operator - Modernization Separate Header Installation
October 2021 - 88420 v.1.0
39
Separate Header Installation
(continued)

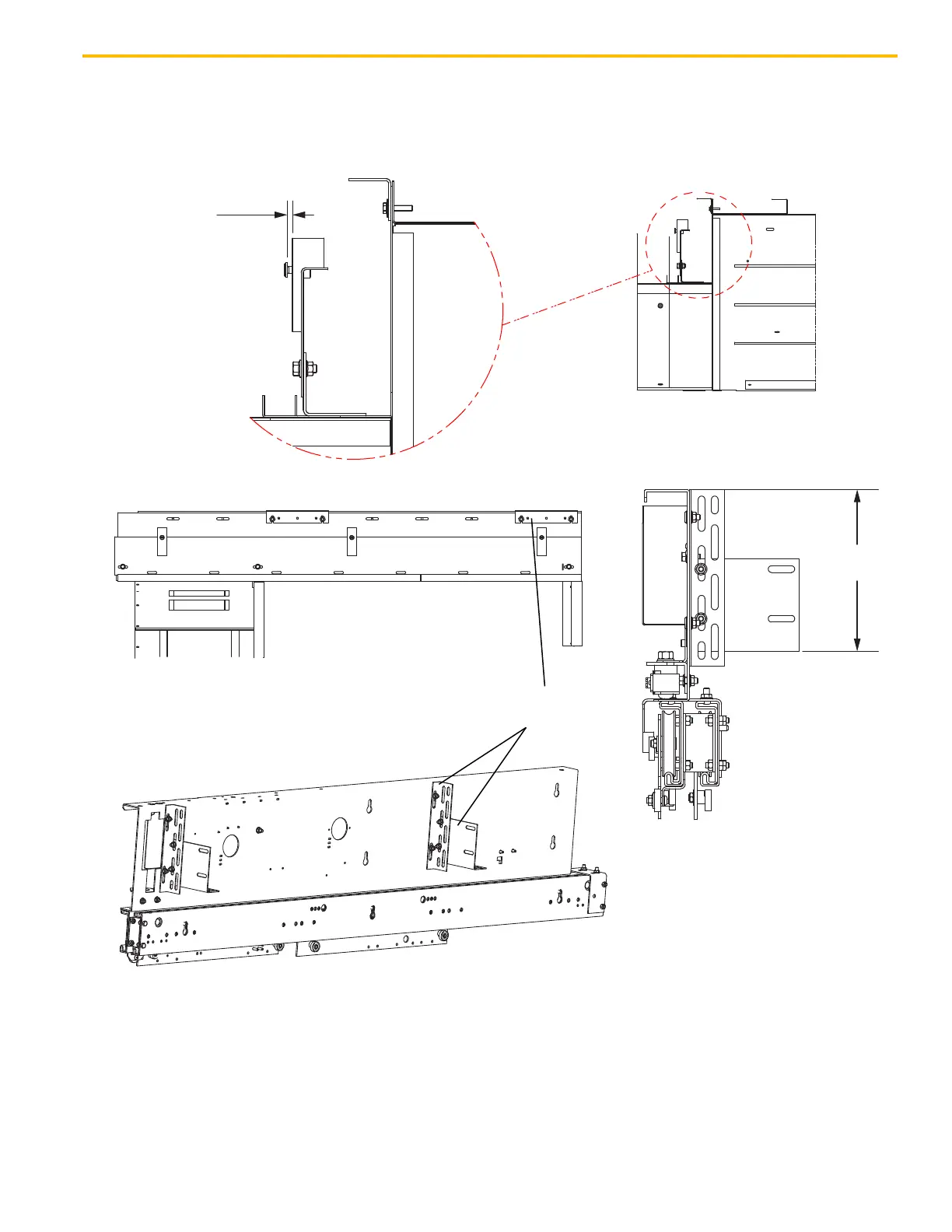

Figure 34 - Door Track and Mounting Angles Installation
9.0"
¼" ȉ ƻ"
Door Track Gap
Mounting Angles
Dimensions shown are reference points and apply to TKE or Dover equipment ONLY.
