4.2.8 Configuration Screen
The Configuration screen is used to set specific parameters and control functions.

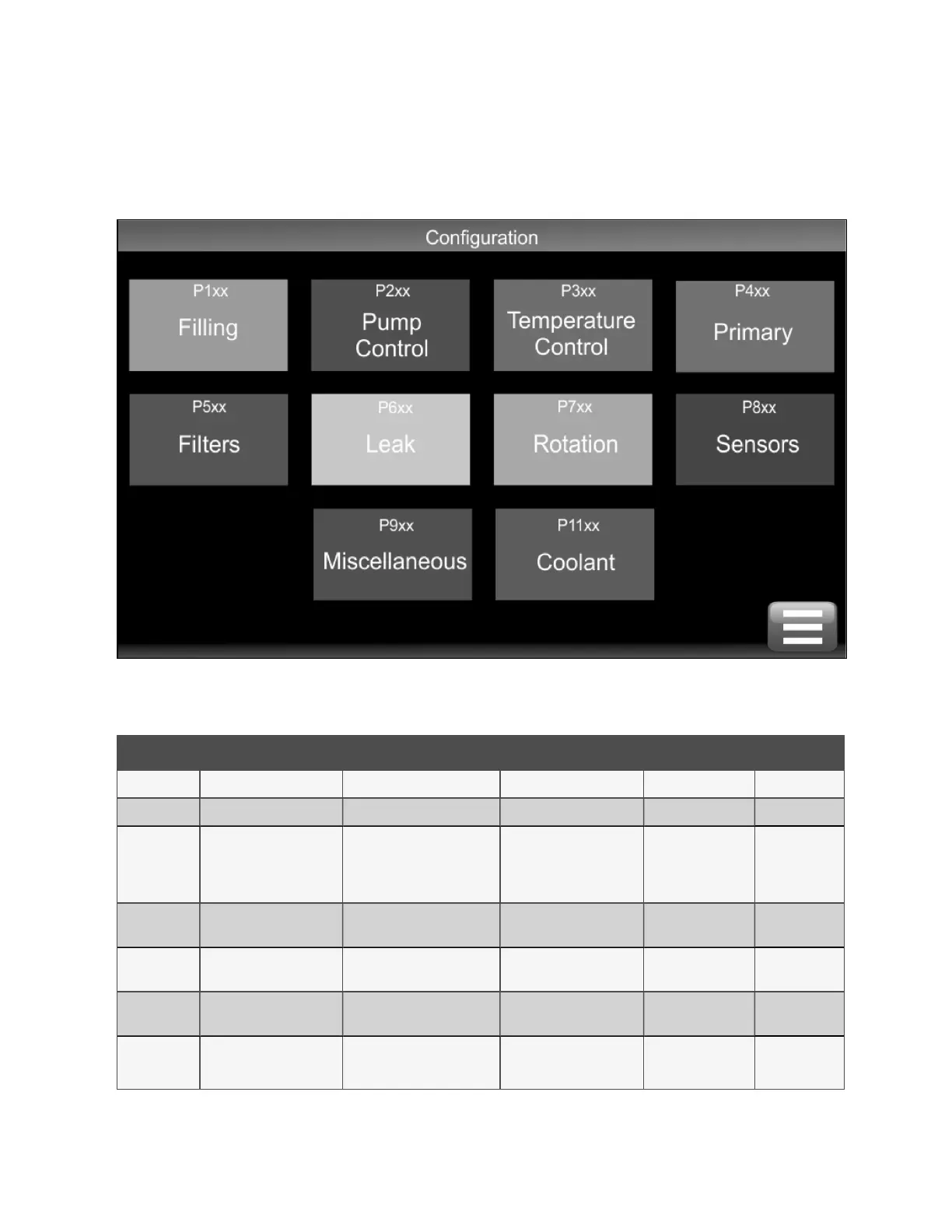

Figure 4.8 Control System Configuration Screen
NOTE: Parameter IDs shown in italics below are only accessible with the Engineer login code.
ID Title Description Default Range Unit
P101 Fill Pressure Start threshold for fill pump 0.8 0.3 TO 1.0 bar
P102 Fill Hysteresis Stop hysteresis for fill pump 0.2 0.1 to 0.5 bar
P103 Fill Pump Run Period
Time for level sensor to make,
or fill pressure to be satisfied,
prior to alarm (when unit is
online)
1 1 to 15 min
P104 Level Sensor Delay
Level sensor response time,
prior to alarm
1 1 to 6 secs
P105 Fill Start Delay Period
Delay prior to pump start after
initiate signal
10 1 to 600 secs
P106 Fill Warning Delay Period
Delay prior to Check Make Up
alarm activated
5 0 to 50 secs
P107 Group Fill
Group Fill
0 = No, 1 = Yes
0 0—1 —
Table 4.18 Configuration—Filling
