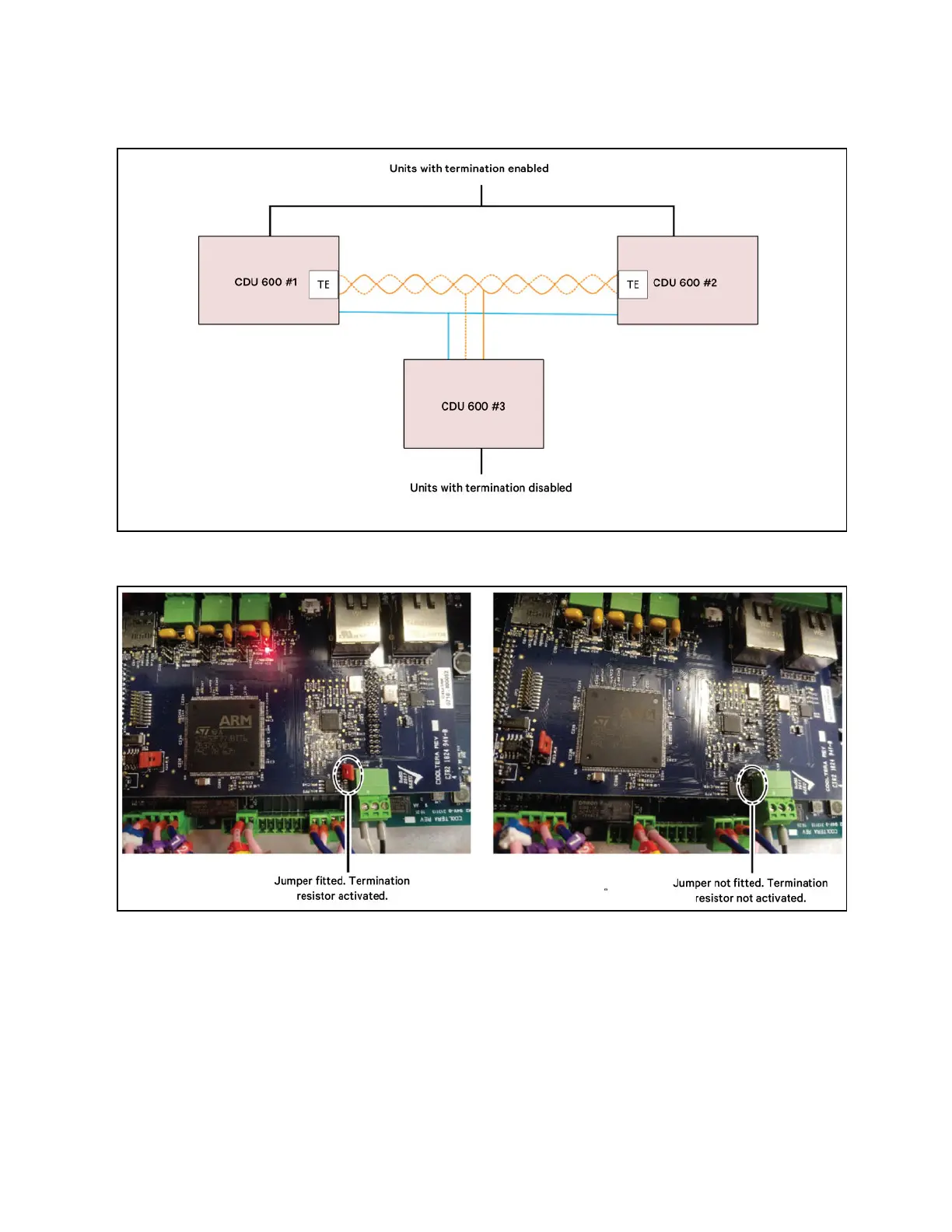

Figure 6.4 CANbus Network Termination Resistors Wiring
Figure 6.5 CANbus Network Termination Resistors
5.3.3 Group Control—Network Addresses
Each CoolChip CDU 600 must be given a unique address. A CDU 600 network address should be allocated to each unit in
ascending order, starting from 1.
The CDU 600 network address is configured via Setup screen > Group Control > Unit Address (P081). Configure each CDU
600 so that it is aware of the other CDU 600 devices on the network:
Proprietary and Confidential ©2025 Vertiv Group Corp. 63
Vertiv™ CoolChip CDU 600 Operation and Maintenance Guide
