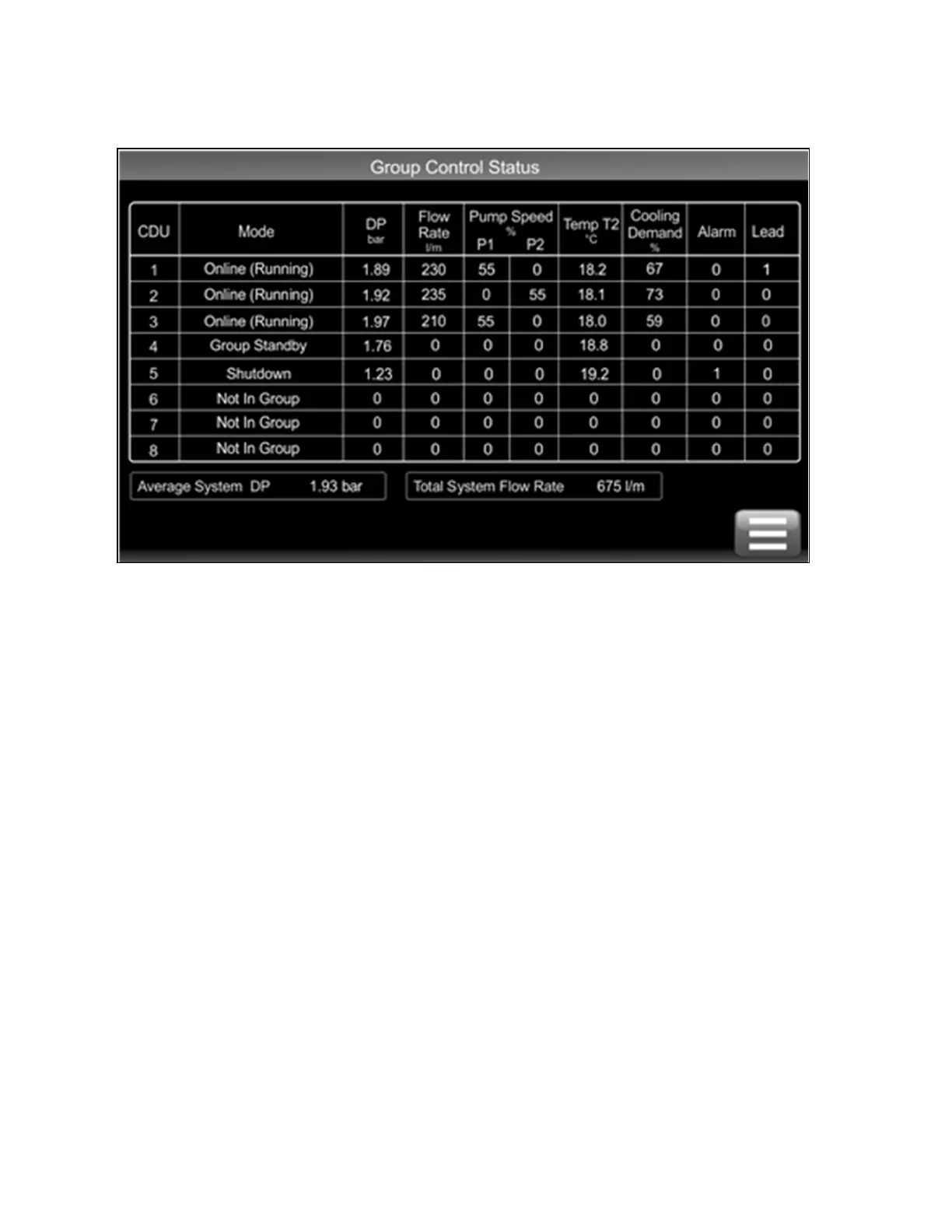

Figure 4.11 Group Control Status Screen
4.2.12 Ethernet and IP Communication Status Screen
The Ethernet and IP Communication Status screen provides information on Ethernet link, speed, and duplex status along with
IPv4 address details and message counts for Ethernet interface A and B. See Figure 4.12 on the facing page . Access this
screen from the home page by selecting the IP address as shown in Figure 4.2 on page17 .
