Vertiv CoolChip CDU 600 - Page 42

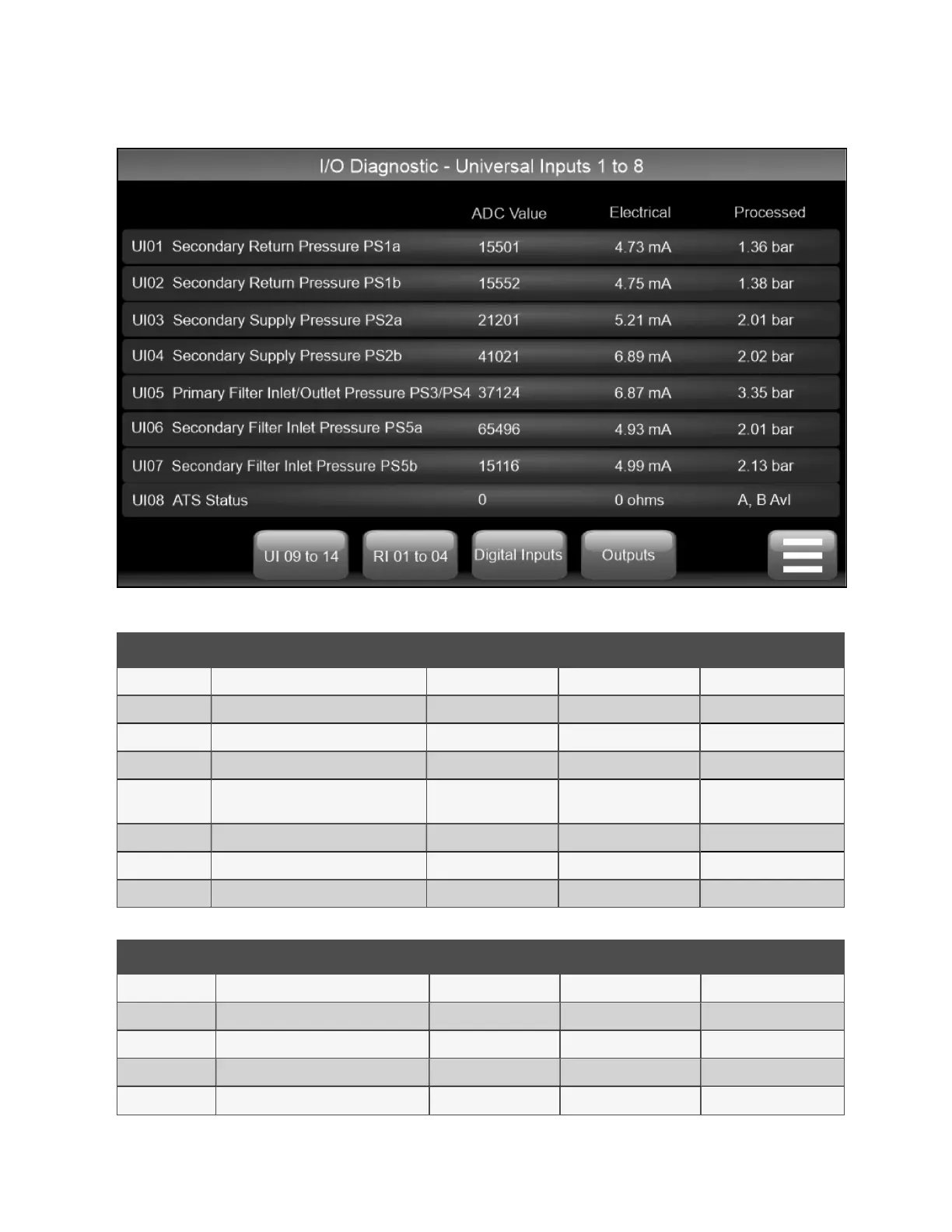

Figure 4.10 Control System Diagnositics Screen
ID Description ADC Value Electrical Processed
UI01 Secondary Return Pressure PS1a 0 0.00 mA 0.00 bar
UI02 Secondary Return Pressure PS1b 0 0.00 mA 0.00 bar
UI03 Secondary Supply Pressure PS2a 0 0.00 mA 0.00 bar
UI04 Secondary Supply Pressure PS2b 0 0.00 mA 0.00 bar
UI05
Primary Filter Inlet/Outlet Pressure
PS3/PS4
0 0.00 mA 0.00 bar
UI06 Secondary Filter Inlet Pressure PS5a 0 0.00 mA 0.00 bar
UI07 Secondary Filter Inlet Pressure PS5b 0 0.00 mA 0.00 bar
UI08 ATS Status 0 0.00 ohms No ATS
Table 4.36 I/O Diagnostics—Universal Inputs 1 to 8
ID Description ADC Value Electrical Processed
UI09 Primary Supply Temperature T1 0 0.00 ohms 0.00 °C
UI10 Secondary Return Temperature T4 0 0.00 ohms 0.00 °C
UI11 Primary Flow Rate 0 0.00 mA 0 l/m
UI12 Secondary Flow Rate 0 0.00 mA 0 l/m
UI13 Ambient Sensor – RH 0 0.00 mA 0 %
Table 4.37 I/O Diagnostics—Universal Inputs 9 to 16
38 Proprietary and Confidential ©2025 Vertiv Group Corp. 4 Operation
Vertiv™ CoolChip CDU 600 Operation and Maintenance Guide
