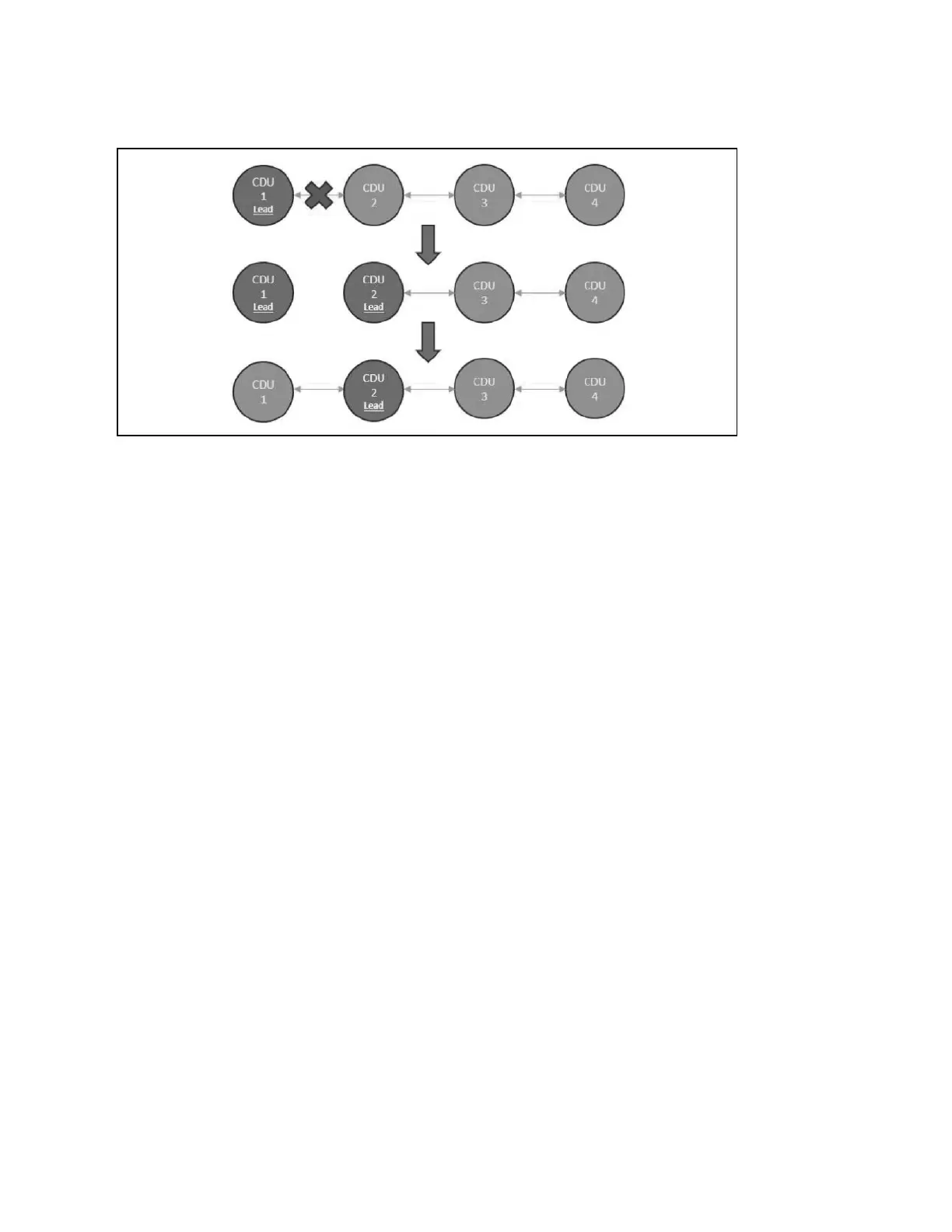

Figure 6.7 Lead Communication Failure
In the event of a sensor failure, all sensors related to control (PS1, PS2 and T2) are redundant at the CDU 600 level, so a single
sensor failure will not impact the operation or the status of the CDU 600, So, if the lead CDU 600 does have a sensor failure it
will not result in a change of lead.
66 Proprietary and Confidential ©2025 Vertiv Group Corp.
Vertiv™ CoolChip CDU 600 Operation and Maintenance Guide
