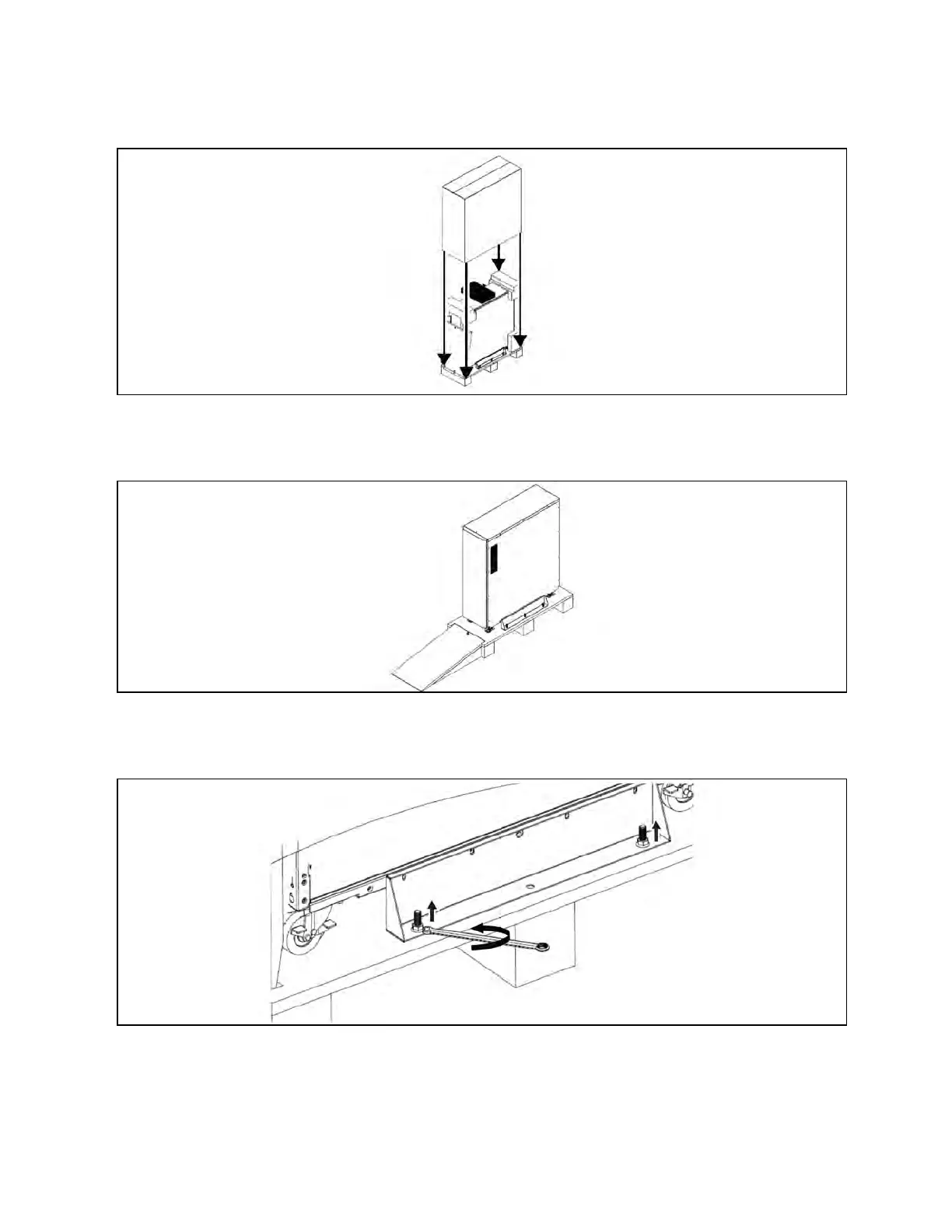

Figure 2.2 Removal of the Carton and foams
3. Put a ramp in front of the cabinet. See Figure 2.3 below .
Figure 2.3 Placement of Ramp
4. Remove two fixing cabinet plates and move the cabinet from the pallet. See Figure 2.4 below .
Figure 2.4 Removal of Two Fixing Cabinet Plates
5. To fix the cabinet in position, step on the roller brake and fix the cabinet board to fix the cabinet in place. See
Figure 2.5 on the facing page .
8 Proprietary and Confidential ©2024 Vertiv Group Corp. 2 Installation and Operation
Vertiv™ Liebert® MTP Online UPS User Manual 20-40-80kVA
