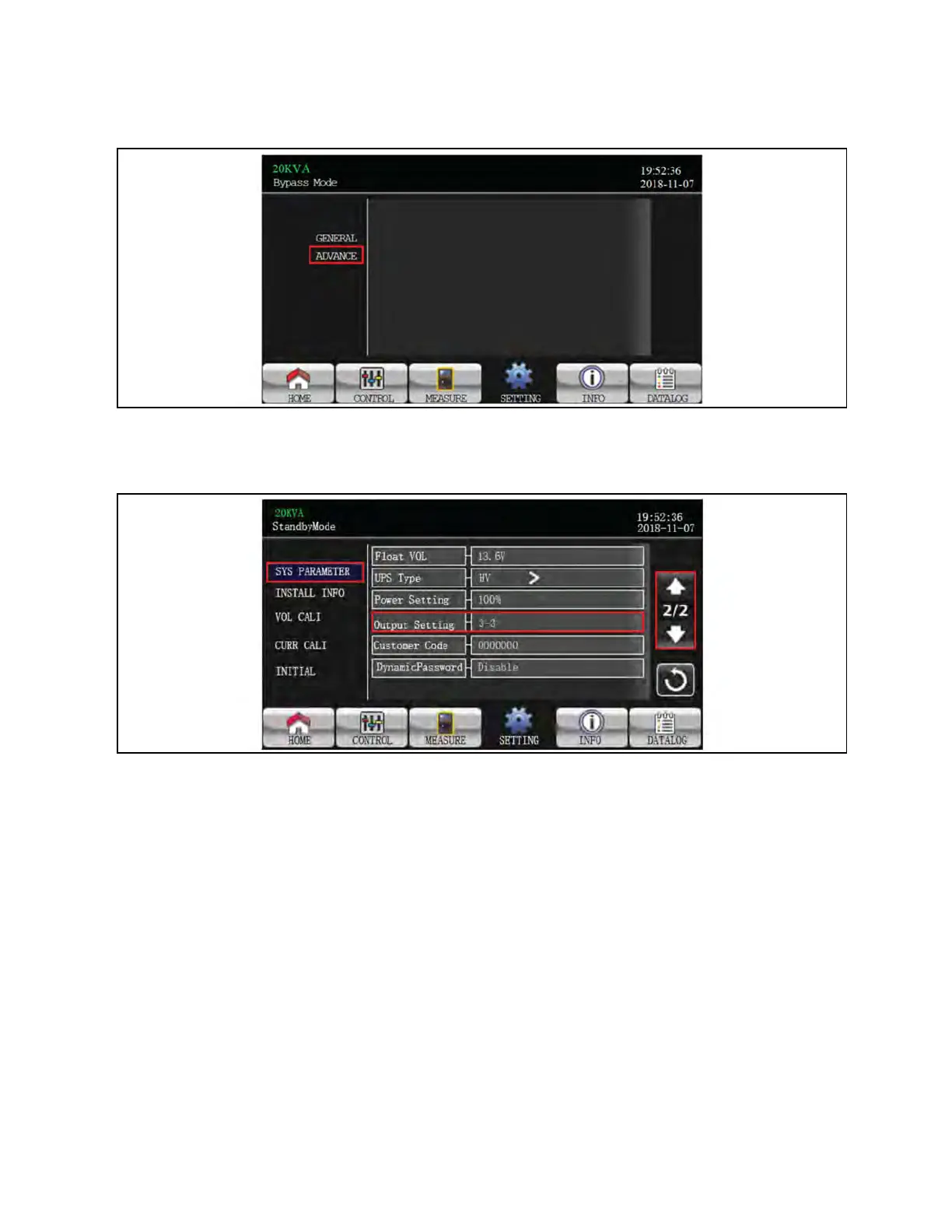

Figure 2.14 Bypass Mode—Advance
5. Go to SYS PARAMETER (Page 2/2) and modify the Output Setting from 3-3 to 3-1.
Figure 2.15 Standby Mode—SYS Parameter
NOTE: The 3-1 parameter settings will be saved only when UPS shutdown normally with battery connected.
6. Turn OFF all the UPS breakers (main input, bypass input, and output).
7. Use the provided bars to short the power terminals according to the Figure 2.16 on the facing page .
20 Proprietary and Confidential ©2024 Vertiv Group Corp. 2 Installation and Operation
Vertiv™ Liebert® MTP Online UPS User Manual 20-40-80kVA
