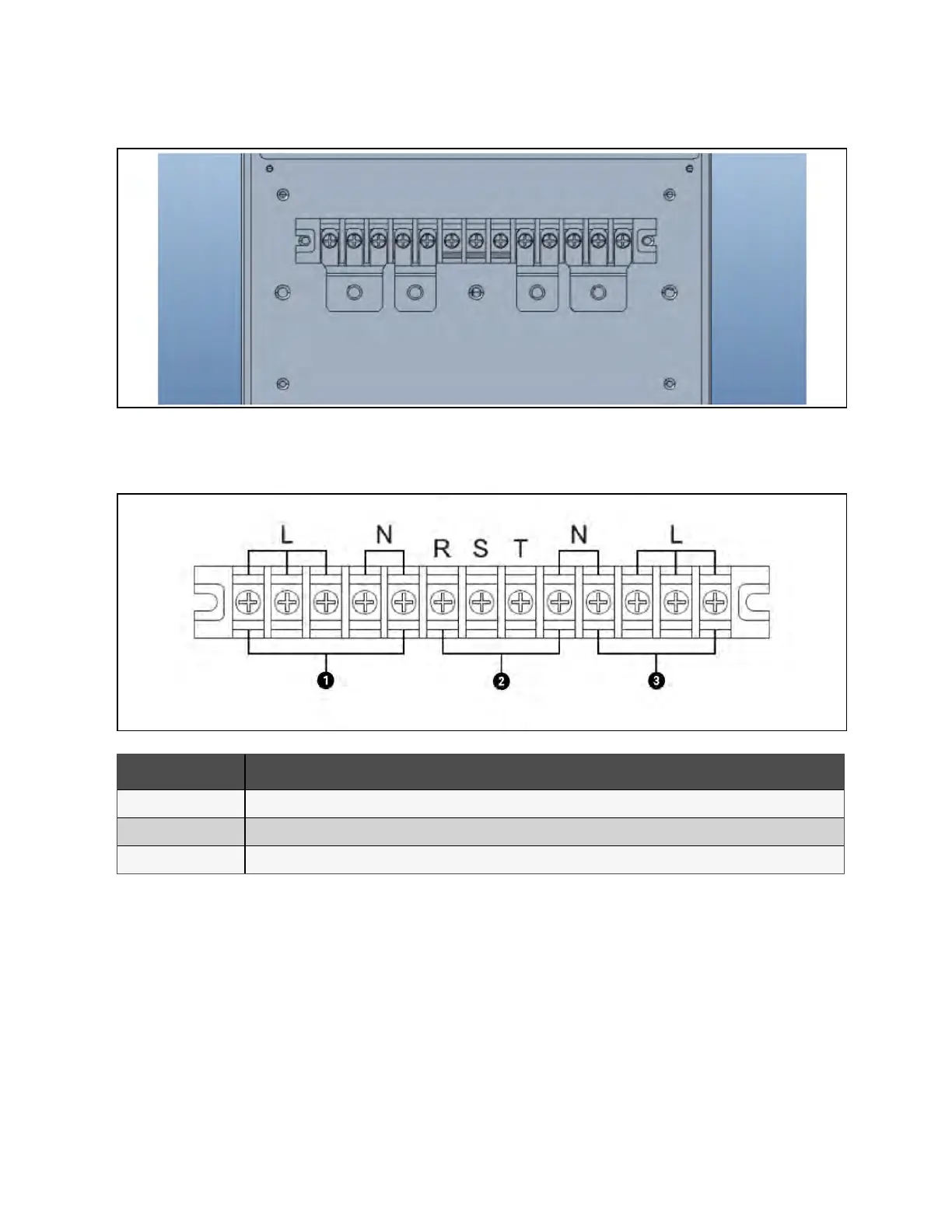

Figure 2.16 Busbars
8. Connect the power lines according to the Figure 2.17 below .
Figure 2.17 Connection of Power Lines
Item Description
1 Output
2 Input
3 Bypass input
9. Keep the EPO connector still disconnected. Then turn ON the output breaker, bypass breaker, and main input
breaker in this order.
10. Confirm on the display main page that the bypass and output are single phase.
