Battery

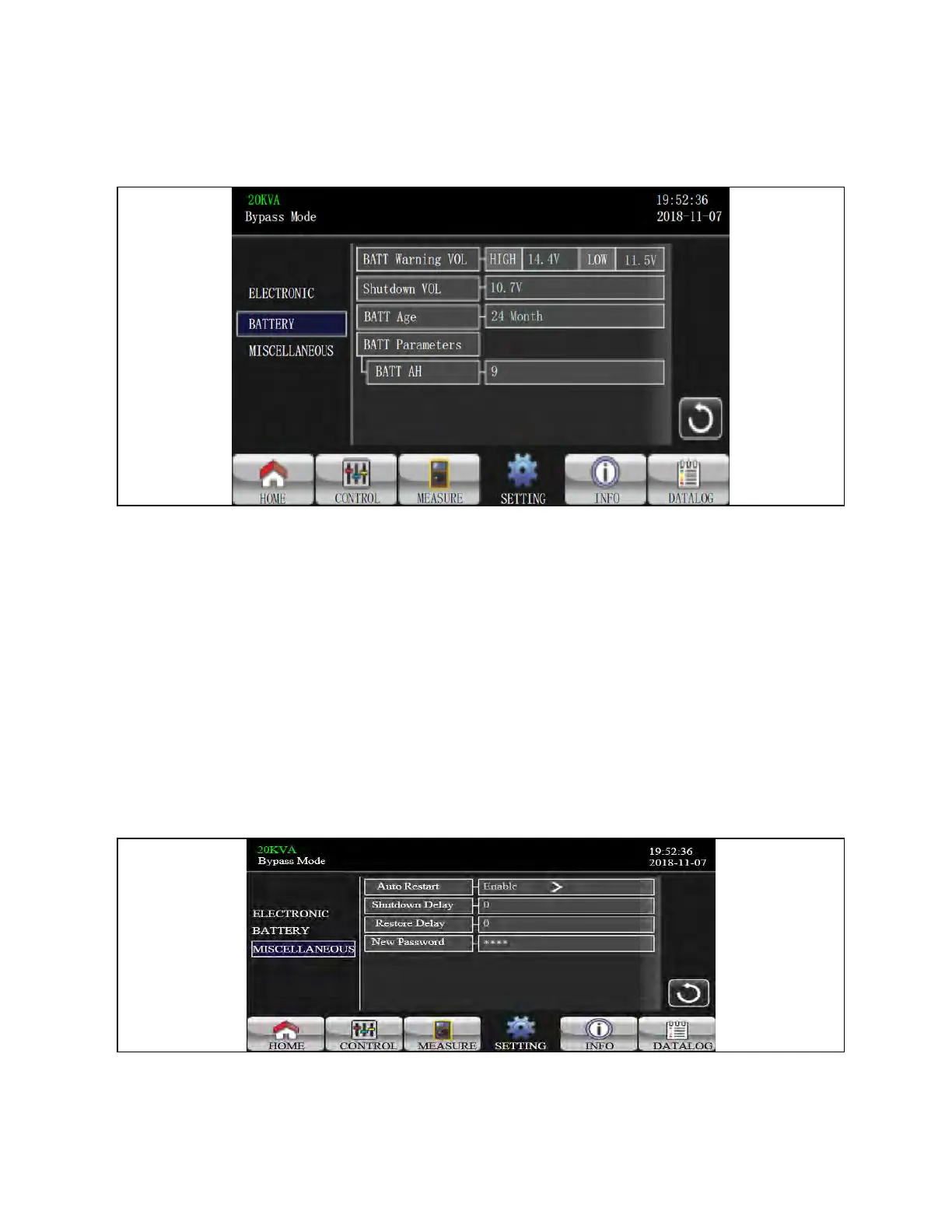

Figure 3.33 Battery Setting Screen
1. BATT Warning VOL:
a. HIGH: High battery warning voltage. The setting range is 14.0V ~ 15.0V per battery block. 14.4V is default
setting.
b. LOW: Low battery warning voltage. The setting range is 10.1V ~ 14.0V per battery block. 11.4V is default
setting. This parameter setting is related to “Shutdown Voltage” setting. This setting value should be
higher than “Shutdown Voltage” setting.
2. Shutdown VOL: If battery voltage is lower than this point in battery mode, inverter will automatically shut down.
The setting range is 10.5V ~ 12V per battery block. 10.7V is default setting.
3. Battery Parameters:
• Battery AH: setting battery capacity.
Miscellaneous
Figure 3.34 Miscellaneous Setting Screen
1. Auto Restart:
