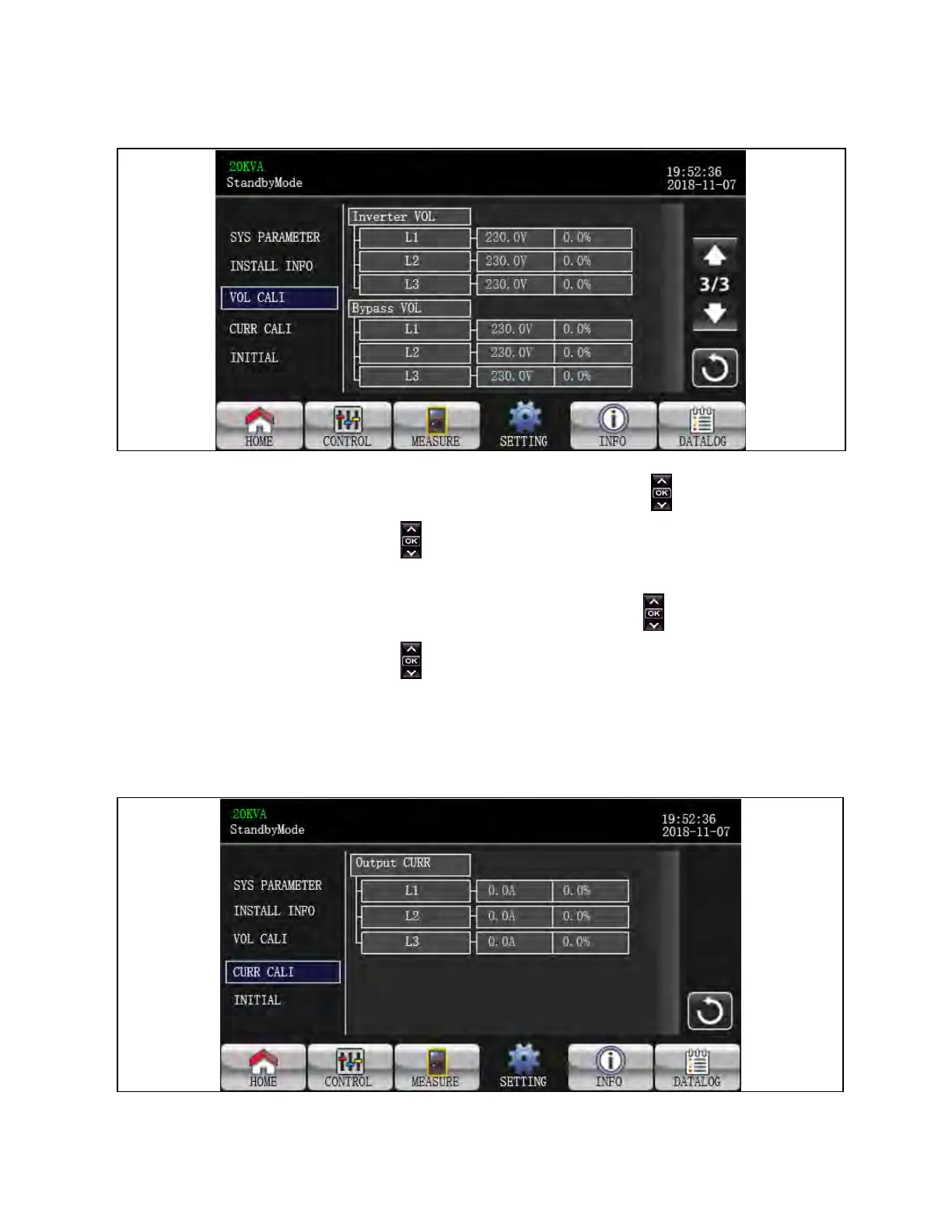

Figure 3.42 VOL CALI Screen 3
1. Inverter VOL: Inverter voltage calibration. Click value columns and it will pop up . Then, each click is 0.1% no
matter it is pressing up or down key . Press “up” key to increase 0.1% and press “down” key to decrease 0.1%.
Press “OK” key to confirm the modification.
2. Bypass VOL: Bypass voltage calibration. Click value columns and it will pop up . Then, each click is 0.1% no
matter it is pressing up or down key . Press “up” key to increase 0.1% and press “down” key to decrease 0.1%.
Press “OK” key to confirm the modification.
CURR CALI
Figure 3.43 CURR CALI Screen
3 Operations Proprietary and Confidential ©2024 Vertiv Group Corp. 55
Vertiv™ Liebert® MTP Online UPS User Manual 20-40-80kVA
