• Output CURR: Output current calibration. Click value columns and it will pop up . Then, each click is 0.1% no
matter it is pressing up or down key . Press “up” key to increase 0.1% and press “down” key to decrease 0.1%.
Press “OK” key to confirm the modification.
Initial

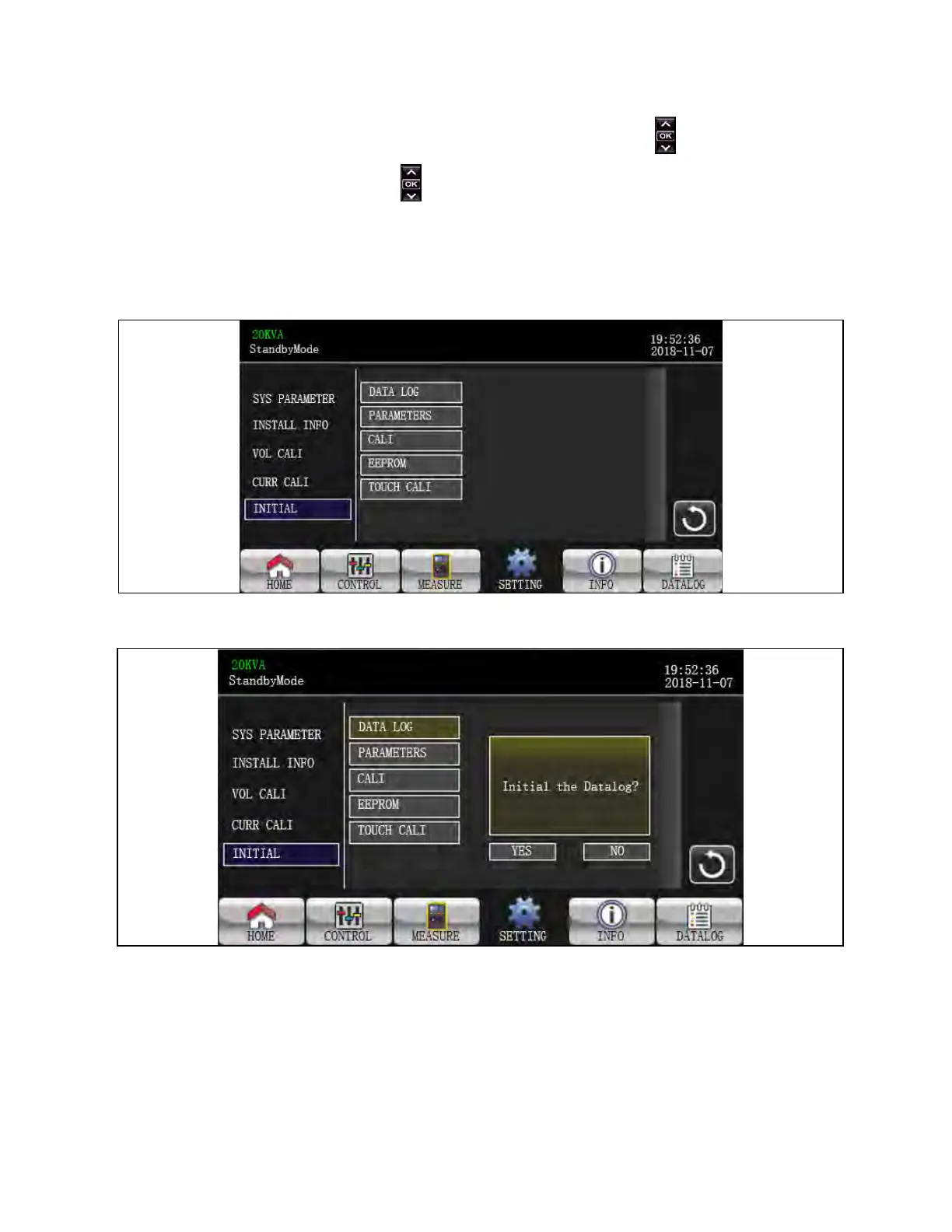

Figure 3.44 Initial Menu Screen
Figure 3.45 Initial Data Log Screen
• DATA LOG: After clicking “DATA LOG”, it will pop up a message board as shown in above screen. Touch “YES” to
clear the DATALOG page. Touch “Back” or “No” to cancel this operation and back to INITIAL menu page.
