Vertiv Liebert APS series User Manual

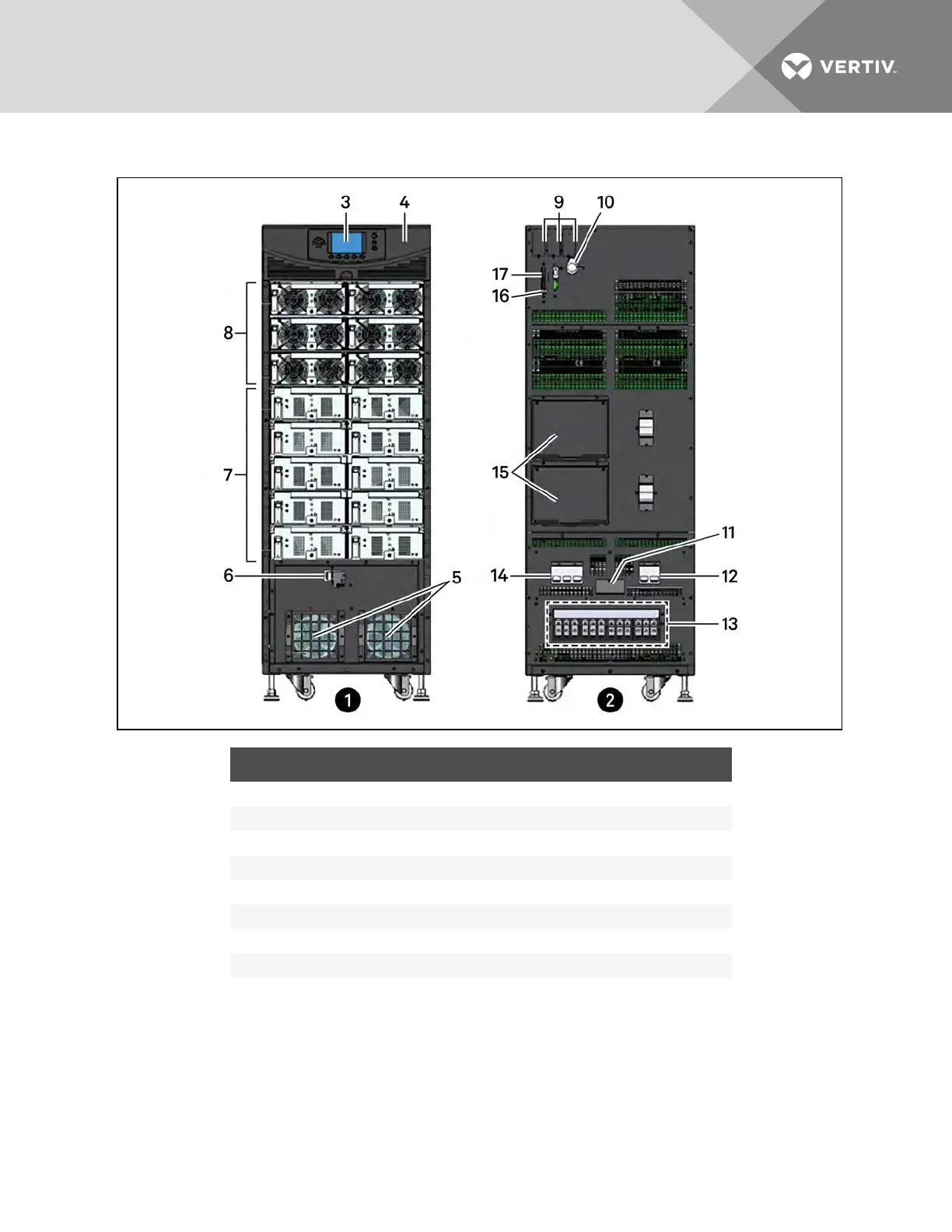

Figure 2.4 16-bay transformer-based UPS
ITEM DESCRIPTION ITEM DESCRIPTION
1 Front view with bezels removed 10 System-enable switch
2 Rear view 11 External-batter-cabinet connector
3 User-interface module 12 Input breaker
4 System-control module (under cover) 13 Power input and output terminals
5 Fans 14 Output breaker
6 Manual bypass breaker 15 PODports
7 Bays for battery modules 16 USB port
8 Bays for power, charger, or battery modules 17 Dry contacts and REPO connections
9 Liebert IntelliSlot ports
Vertiv | Liebert® APS™ Installer/User Guide | 15
