REV : 4
REV DATE : 2/18
DPN003140
Page :1 /1
DOWNFLOW DA080-DA085
Form No.: DPN001040_REV4

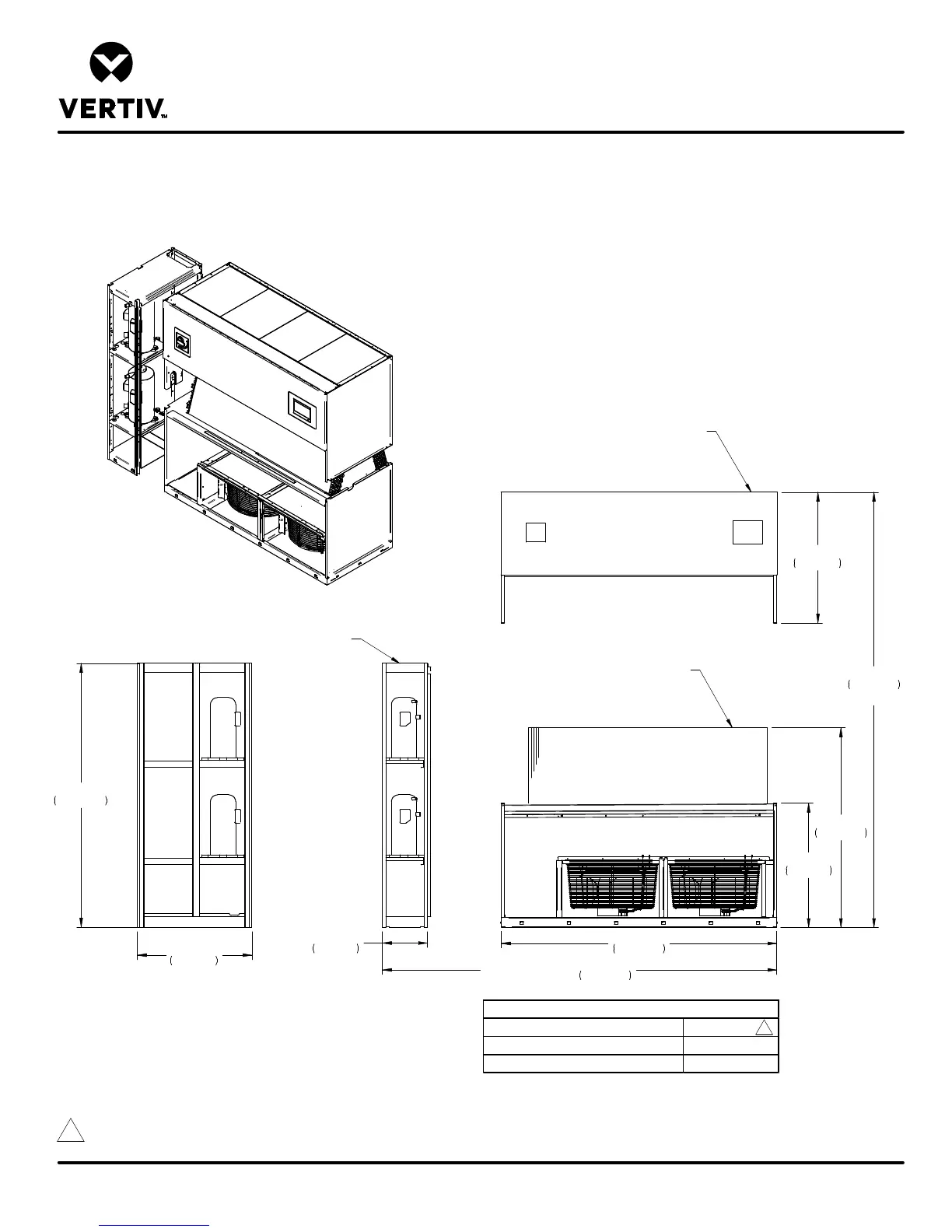

DISASSEMBLY DIMENSIONAL DATA
LIEBERT DSE
COMPRESSOR ASSEMBLY
33"
838mm
76"
1930mm
FILTER & ELECTRIC BOX ASSEMBLY
BLOWER & COIL ASSEMBLY
39"
991mm
COMPRESSOR ASSEMBLY 590 (269)
FILTER & ELECTRIC BOX ASSEMBLY
250 (114)
BLOWER & COIL ASSEMBLY 1410 (641)
APPROXIMATE DRY WEIGHT lb (kg) (Includes Panels)
82"
2083mm
99"
2515mm
Assembled Length
37"
940mm
59 7/16"
1510mm
76"
1930mm
Assembled Height
Notes:
1. Drawing views are simplified with panels removed to show over all dimensions.
2. See disassembly and handling instructions in installation manual.
3. Add 120lbs. (54kg) for 575V Transformer.
17"
432mm
3
