REV : 3
REV DATE : 12/17
DPN003166
Page :1 /1
UPFLOW DA080-DA085
Form No.: DPN001040_REV4

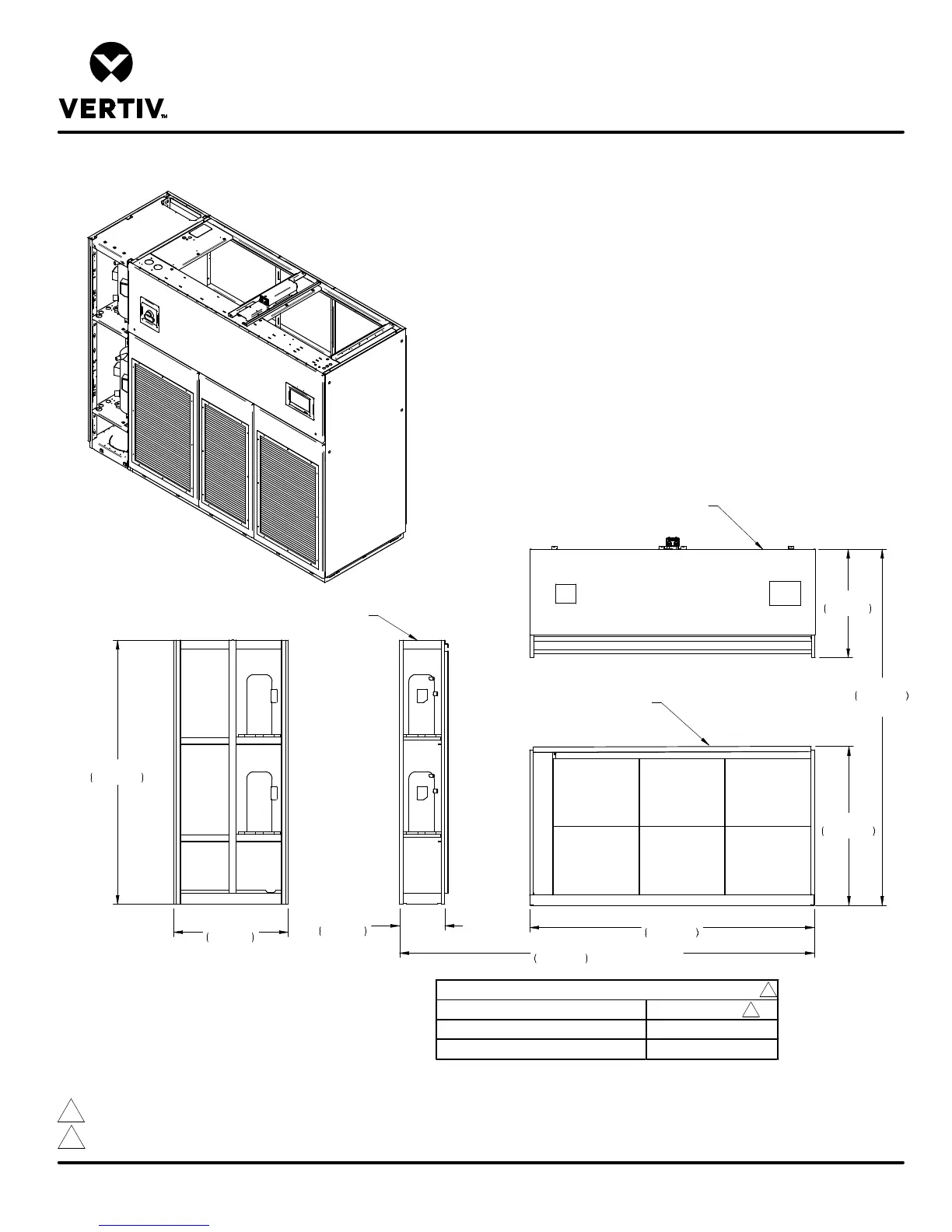

DISASSEMBLY DIMENSIONAL DATA
LIEBERT DSE
COMPRESSOR ASSEMBLY
17"
432mm
33"
838mm
76"
1930mm
ELECTRIC BOX ASSEMBLY
FILTER & COIL ASSEMBLY
45 13/16"
1163mm
31 1/4"
794mm
76"
1930mm
Assembled Height
82"
2083mm
99"
2515mm
Assembled Length
COMPRESSOR ASSEMBLY 590 (269)
ELECTRIC BOX ASSEMBLY 600 (272)
FILTER & COIL ASSEMBLY 960 (436)
APPROXIMATE DRY WEIGHT lb (kg) (Includes Panels)
Notes:
1. Drawing views are simplified with panels removed to show overall dimensions.
2. See disassembly and handling instructions in installation manual.
3. Fan weight not included in this unit weight. Fan is installed in plenum.
4. Add 120lbs. (54kg) for 575V Transformer.
3
4
