REV : 3
REV DATE : 10/17
DPN003452
Page :1 /1
DA050 - DA165
Form No.: DPN001040_REV4

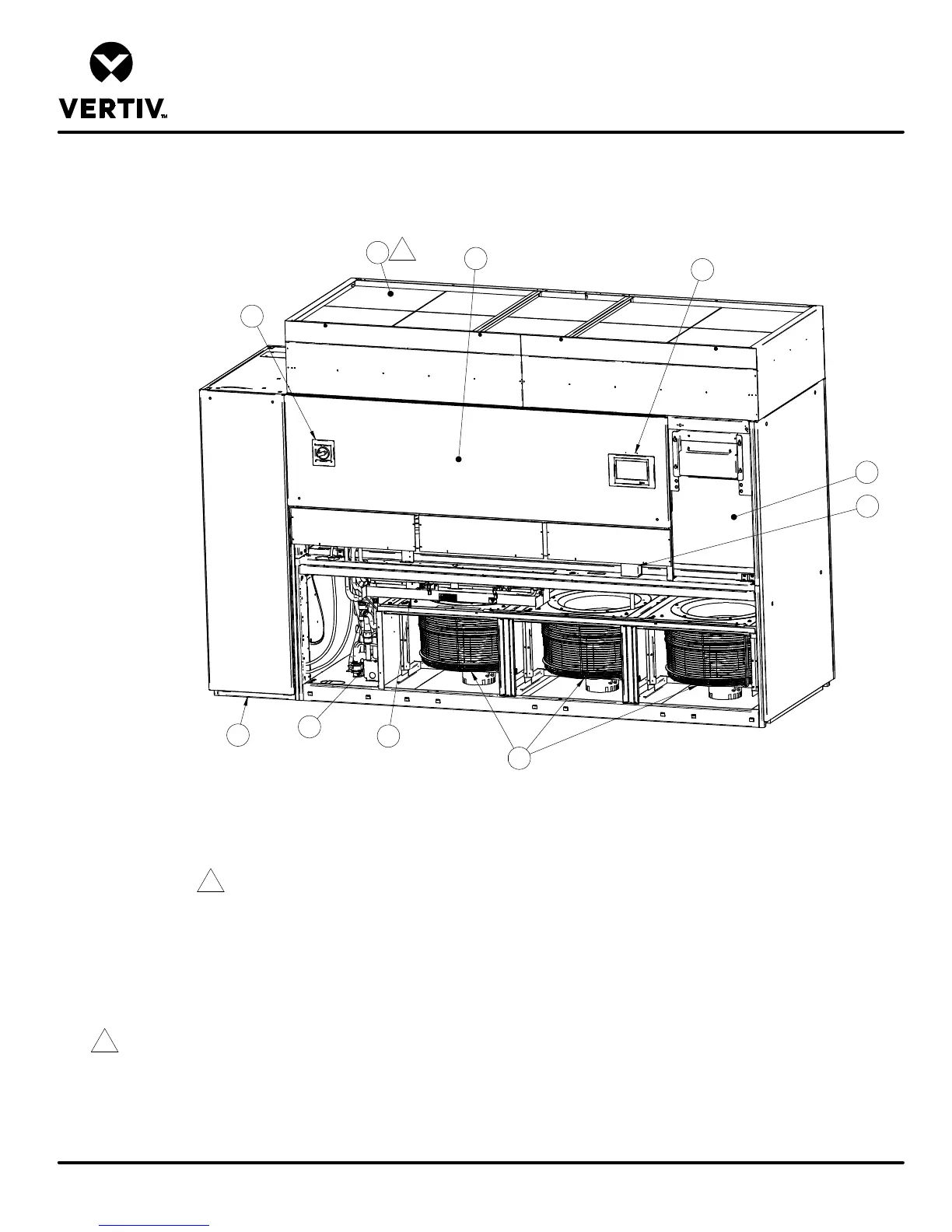

COMPONENT LOCATION DIAGRAM
LIEBERT DSE
1
2
3
4
5
6
10
8
7
9
1. iCOM Control Display
2. Electric Box
3. Filter Plenum (not shipped with unit)
4. Evaporator Coil
5. Fan Modules
6. Compressor Section
7. Infrared Humidifier (optional)
8. Disconnect (optional)
9. Condensate Pump (optional)
10. Smoke Sensor (optional)
Notes:
1. Filter Plenum not available on DA050/080/085 units.
2. DA050/080/085 filters are located above the Electric Panel and can be accessed from the front of the unit.
