USER MANUAL-S600E
22
S600E
2. In the case of standard UPS, simply secure the fastening structural parts removed in step 2 to the cabinet
bottom (See right drawing); in the case of standard UPS without internal batteries, install the fastening
structure parts to both the left and right hand sides (See left drawing) based on the
right drawing to avoid tipping.

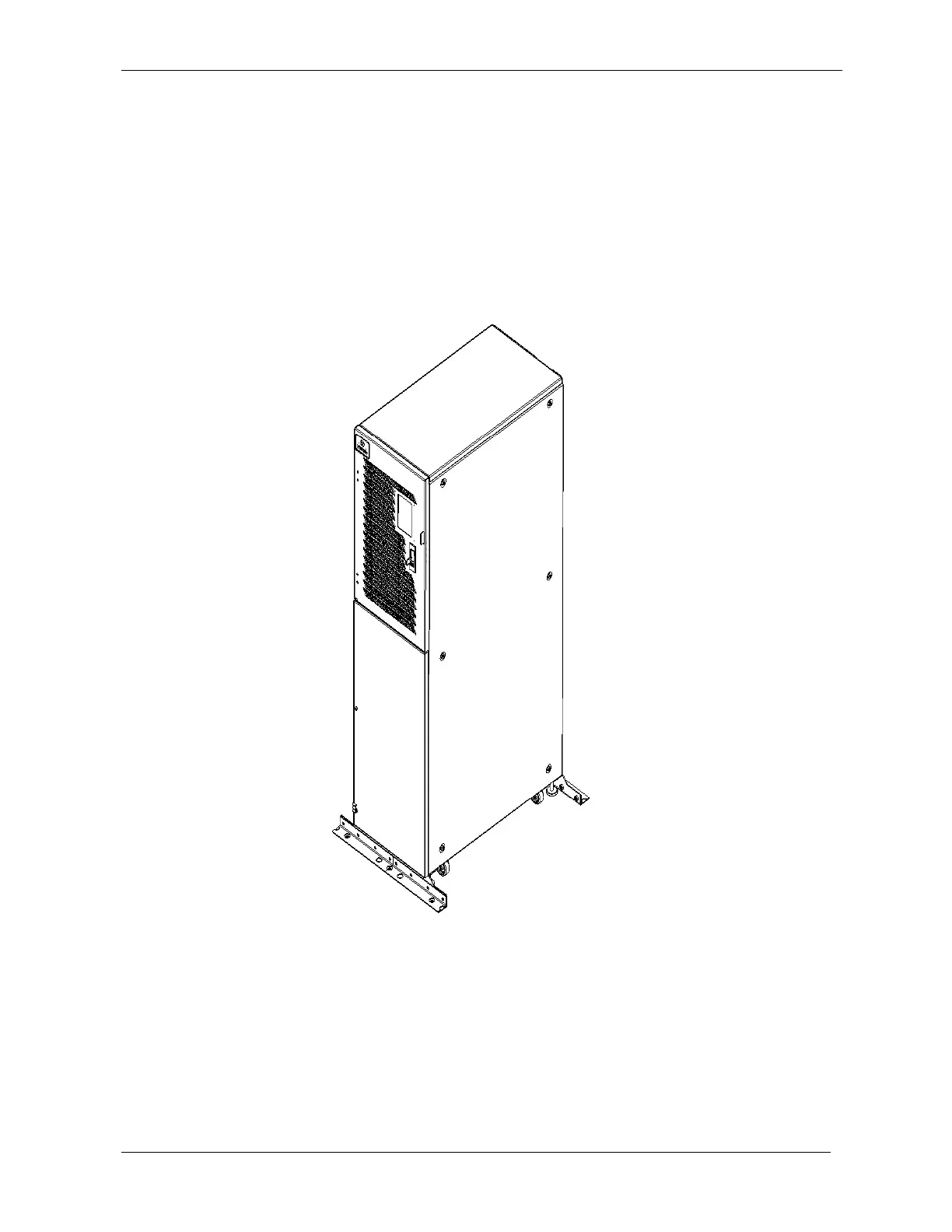

Figure 2-3 Completed installation
