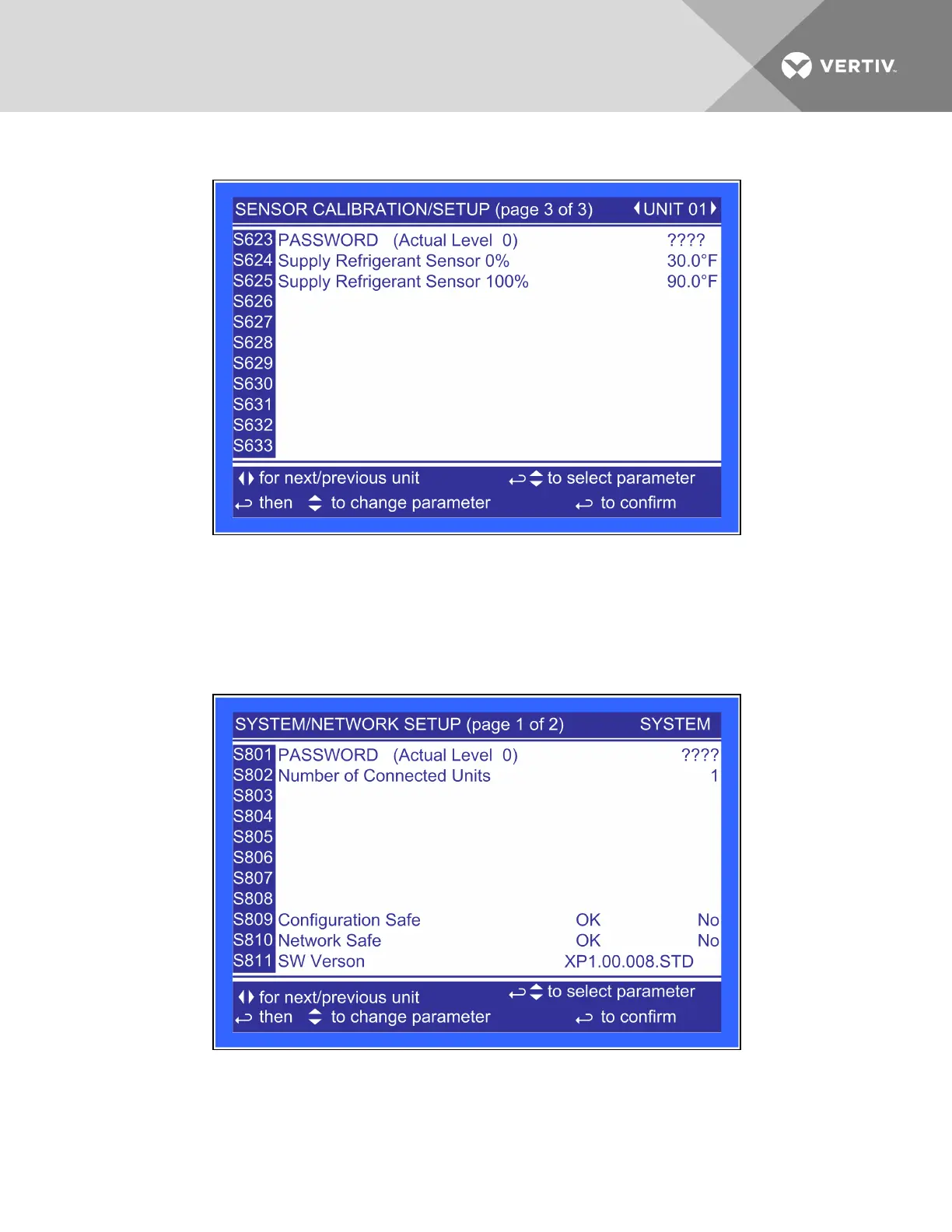

Figure 6.41 Sensor calibration/Setup, page 3 of 3
Supply Refrigerant Sensor 0%—Allows the sensor reading to be calibrated at the lowest reading of the
sensor. This calibration changes the start point of the sensor reading.
Supply Refrigerant Sensor 100%—Allows the sensor reading to be calibrated at the highest reading of the
sensor. This calibration changes the end point of the sensor reading.
Figure 6.42 Network setup display—System/Network setup, page 1 of 2
Number of Connected Units—Shows the number of displays connected. This is always 1.
Vertiv | Liebert® XDC™ User Manual | 103
