U2U Address—A unique identifier for each display on the network. Display addresses range
from 33 to 64. Each display on the U2U network must have a different U2U address. Not
currently used.
U2U Group—Used to create zones or groups within a U2U network. Once a group number is
selected, the display will see only other devices with the same group number. The group
number can be changed to view other devices in different groups. Not currently used.
Bootloader Variables—Indicates the bootloader has changed since it was last loaded. This parameter
should only be activated by an authorized service person.

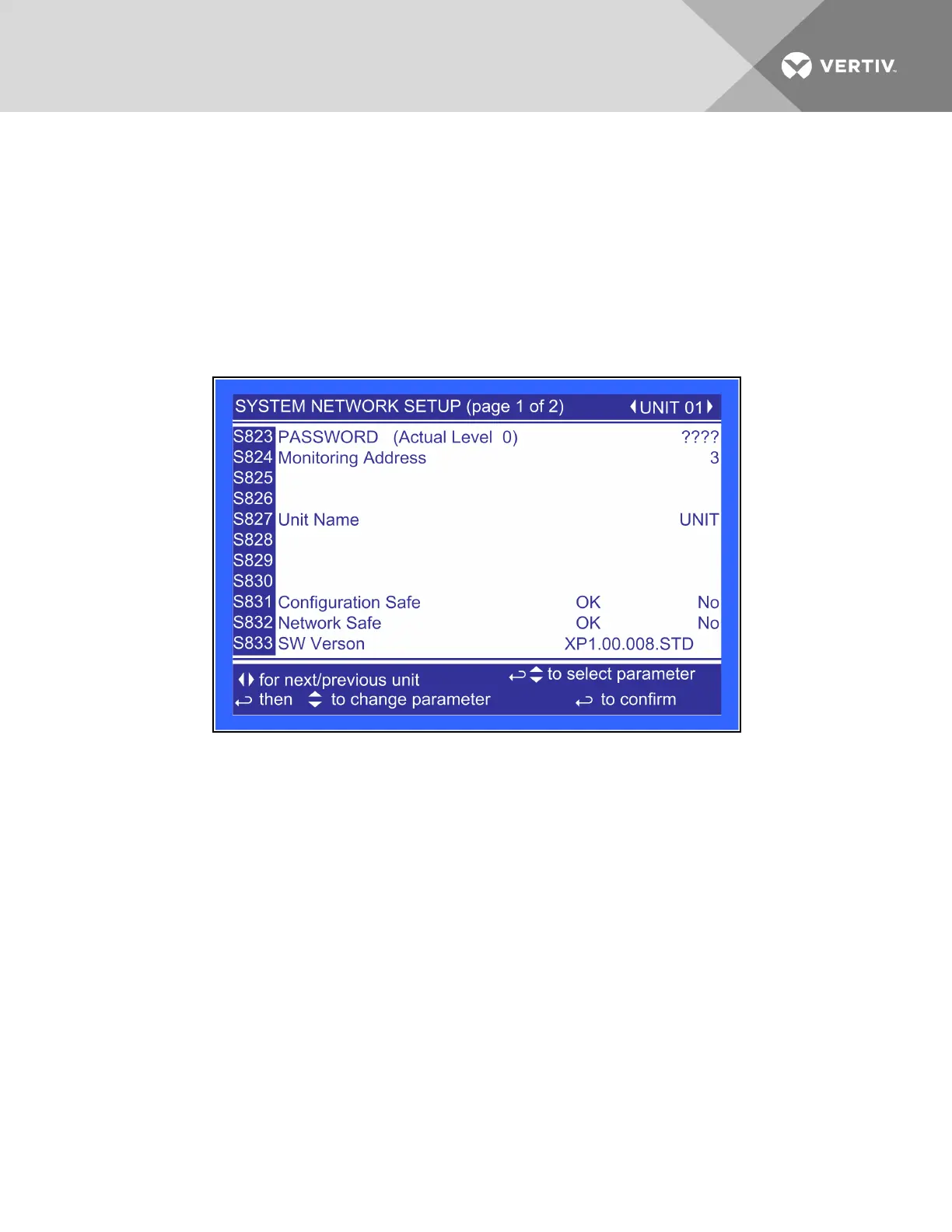

Figure 6.44 Network setup unit—System/Network setup, page 1 of 2
Monitoring Address—Sets the address used by Liebert IntelliSlot cards. This is set to 3 at the factory and
should not be changed.
Unit Name—A label to identify the unit from the local or remote display. This label will show at the top
right of every screen that has monitoring or configuration of that unit.
Configuration Safe—Saves or loads configuration settings for the control board that have been modified
from the factory defaults to an internal file that can be downloaded/uploaded using the Liebert iCOM
Service Tool. Selecting Save will write the settings to the internal storage file and selecting Load will write
the settings from the internal storage file to the application software. The internal file is updated
automatically every 12 hours.
Network Safe—Saves or loads network settings for the control board that have been modified from the
factory defaults to an internal file that can be downloaded/uploaded using the Liebert iCOM Service Tool.
Selecting Save will write the settings to the internal storage file and selecting Load will write the settings
from the internal storage file to the application software.
SW Version—Contains the application software version loaded onto the Liebert iCOM control board.
Vertiv | Liebert® XDC™ User Manual | 105
