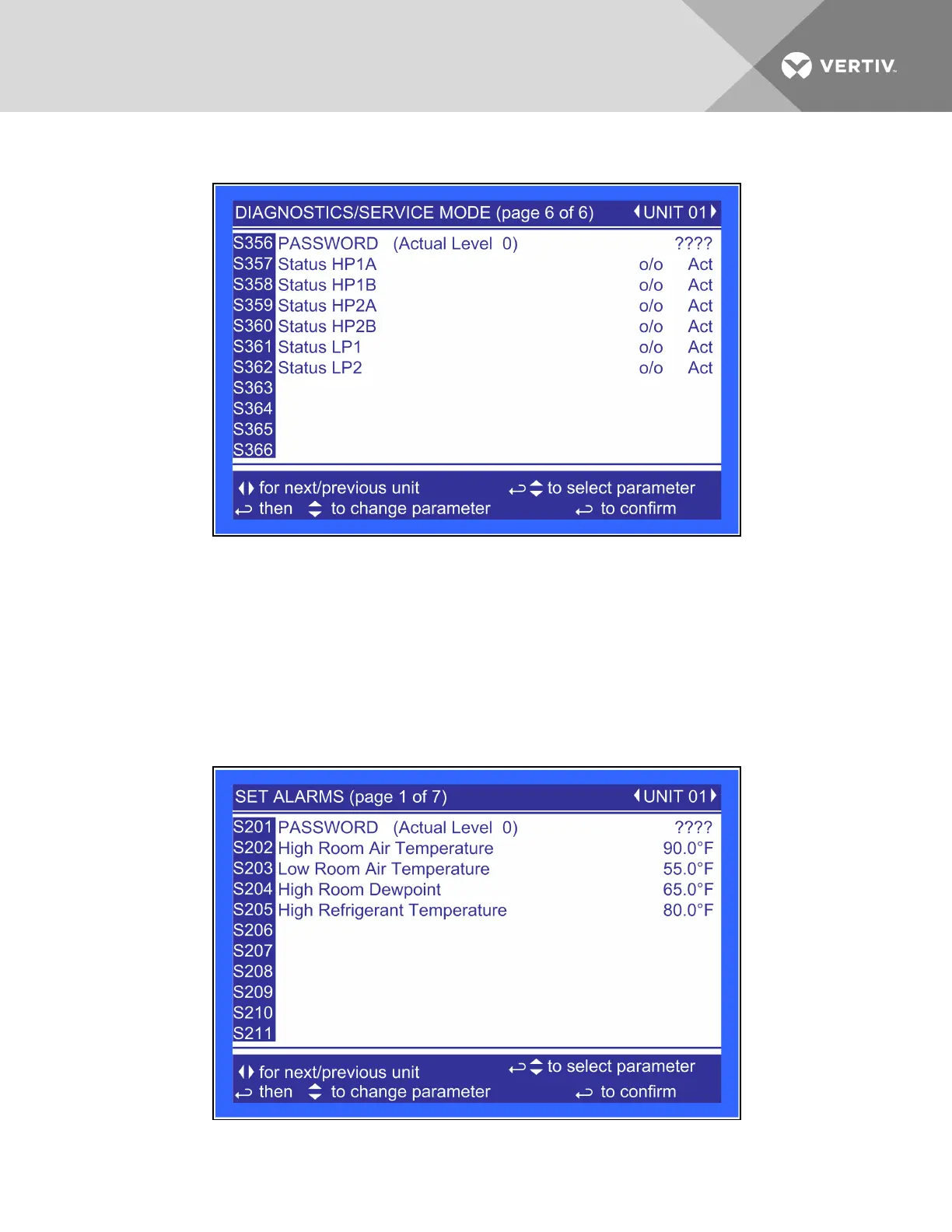

Figure 6.31 Diagnostics/Service mode, page 6 of 6
Status HP1A—Shows the status of the unit’s Compressor 1A high pressure switch input.
Status HP1B—Shows the status of the unit’s Compressor 1B high pressure switch input.
Status HP2A—Shows the status of the unit’s Compressor 2A high pressure switch input.
Status HP2B—Shows the status of the unit’s Compressor 2B high pressure switch input.
Status LP1—Shows the status of the unit’s Compressor Circuit 1 low pressure switch input.
Status LP2—Shows the status of the unit’s Compressor Circuit 2 low pressure switch input.
