Vespa LX 2012 User Manual

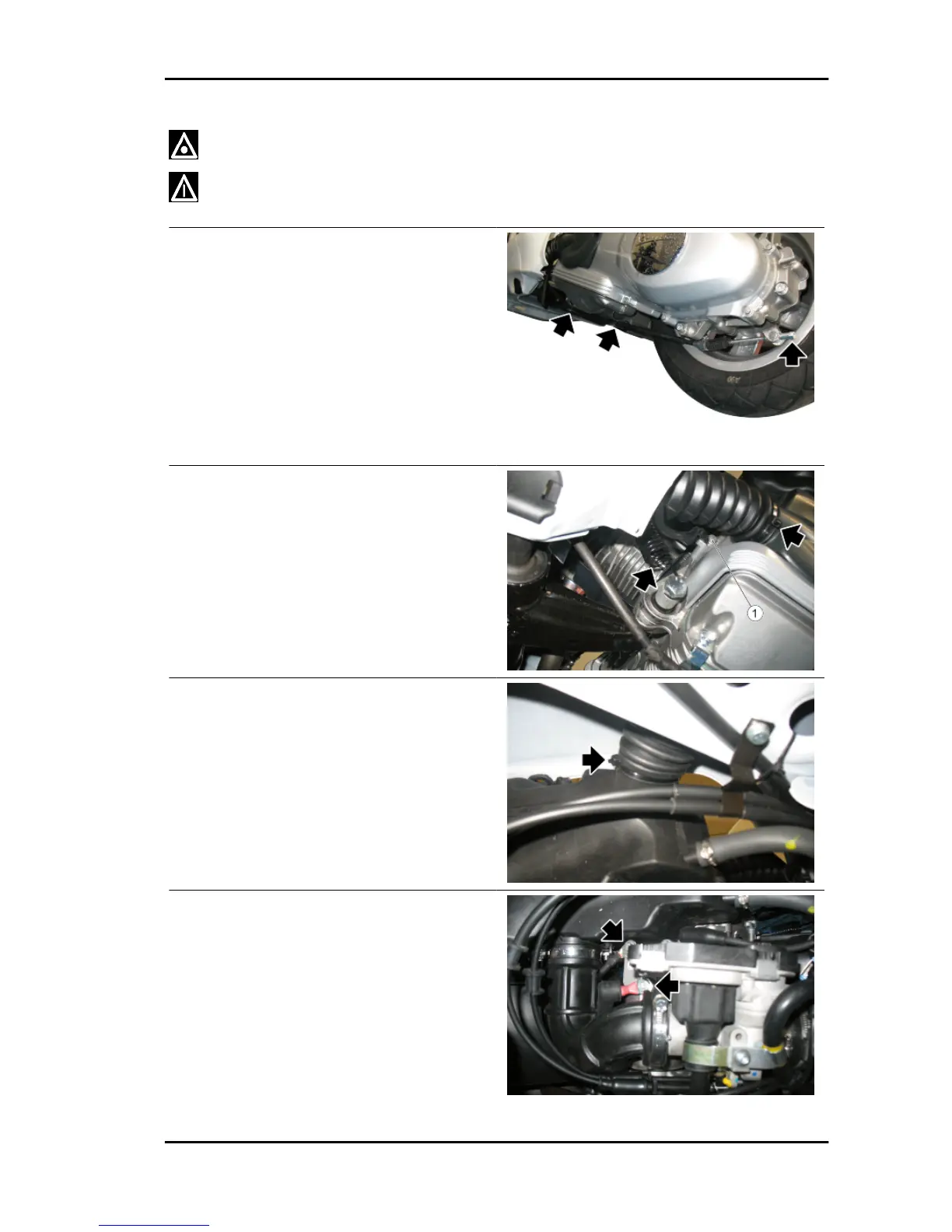

SUPPORT THE VEHICLE ADEQUATELY.
- Disconnect the battery.
- Remove the side fairings and footrest left and
right terminals.
- Remove the helmet compartment.
- Remove the full muffler unit.
- Free the sheath on the 2 rear brake transmission
securing brackets indicated in the photo.
- Disconnect the rear brake transmission by un-
screwing the adjuster screw.
- Disconnect the belt cooling pipe and the swinging
arm retaining spring shown in the picture.
- Disconnect the ground lead (1) from the engine.
- Disconnect the air intake pipe from the filter box.
- Remove the ground lead and the positive cable
from the starter motor shown in the figure.
- Disconnect the cable camp bracket from the throttle body and remove the injection ECU connector.
Vespa LX - S 125 3V ie 150 3V ie (2012) Engine from vehicle
ENG VE - 111

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
