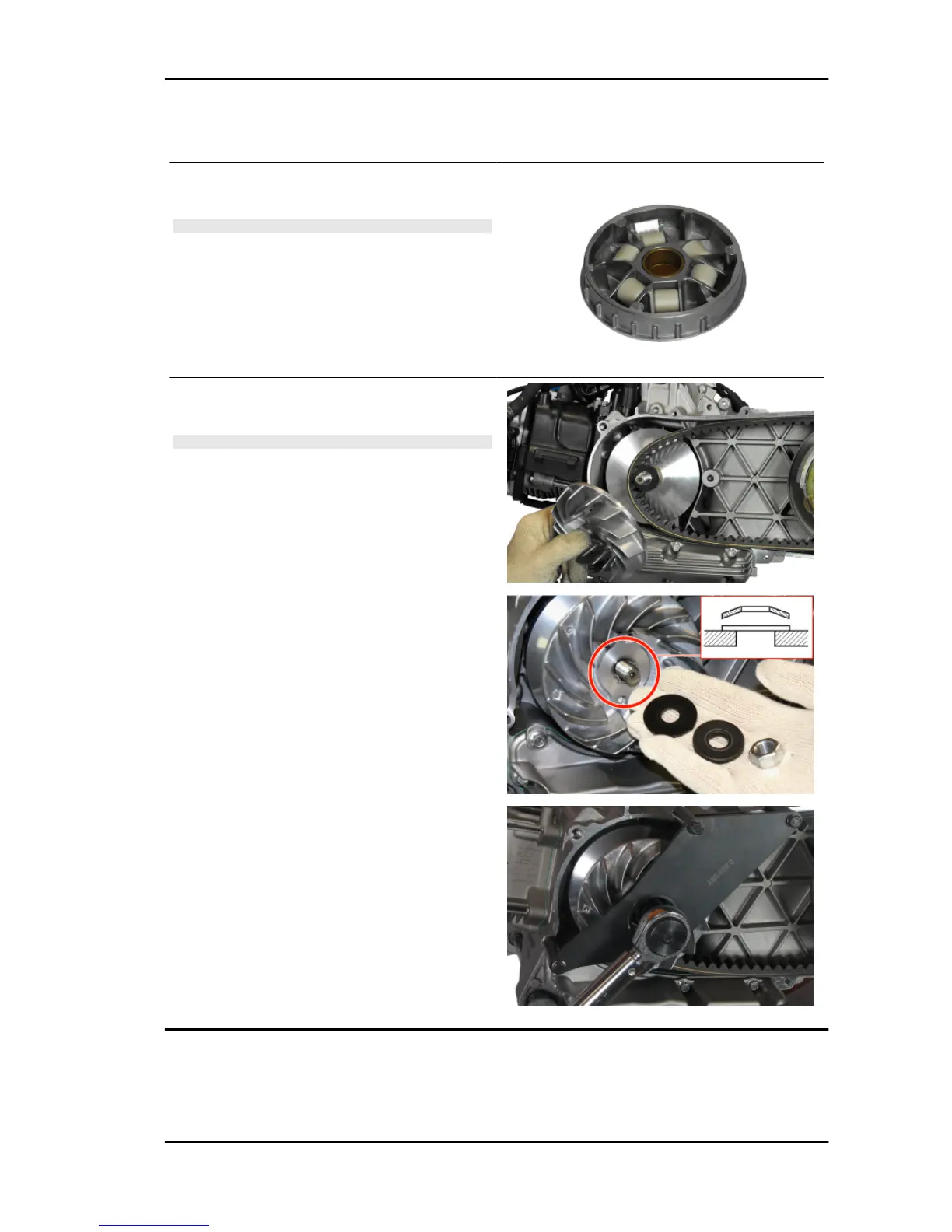

Refitting the driving pulley
- Perform the operations in reverse order of disas-
sembly.
CAUTION
INSERT THE ROLLERS WITH THE LARGEST SUPPORT
SURFACE ACCORDING TO THE DIRECTION OF ROTA-
TION.
- Tighten the torque using the specific tool to lock
the pulley.
CAUTION
DURING THE INSTALLATION PAY SPECIAL ATTENTION
TO THE ASSEMBLY OF THE BELLEVILLE SPRING, AS
SHOWN IN FIGURE.
Specific tooling
020938Y Driving pulley lock
Locking torques (N*m)
Driving pulley retainer nut 75 to 83
Refitting the transmission cover
Follow the removal steps but in reverse order; be careful to tighten to the prescribed torques.
Locking torques (N*m)
Vespa LX - S 125 3V ie 150 3V ie (2012) Engine
ENG - 127

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
