Vespa LX 2012 User Manual

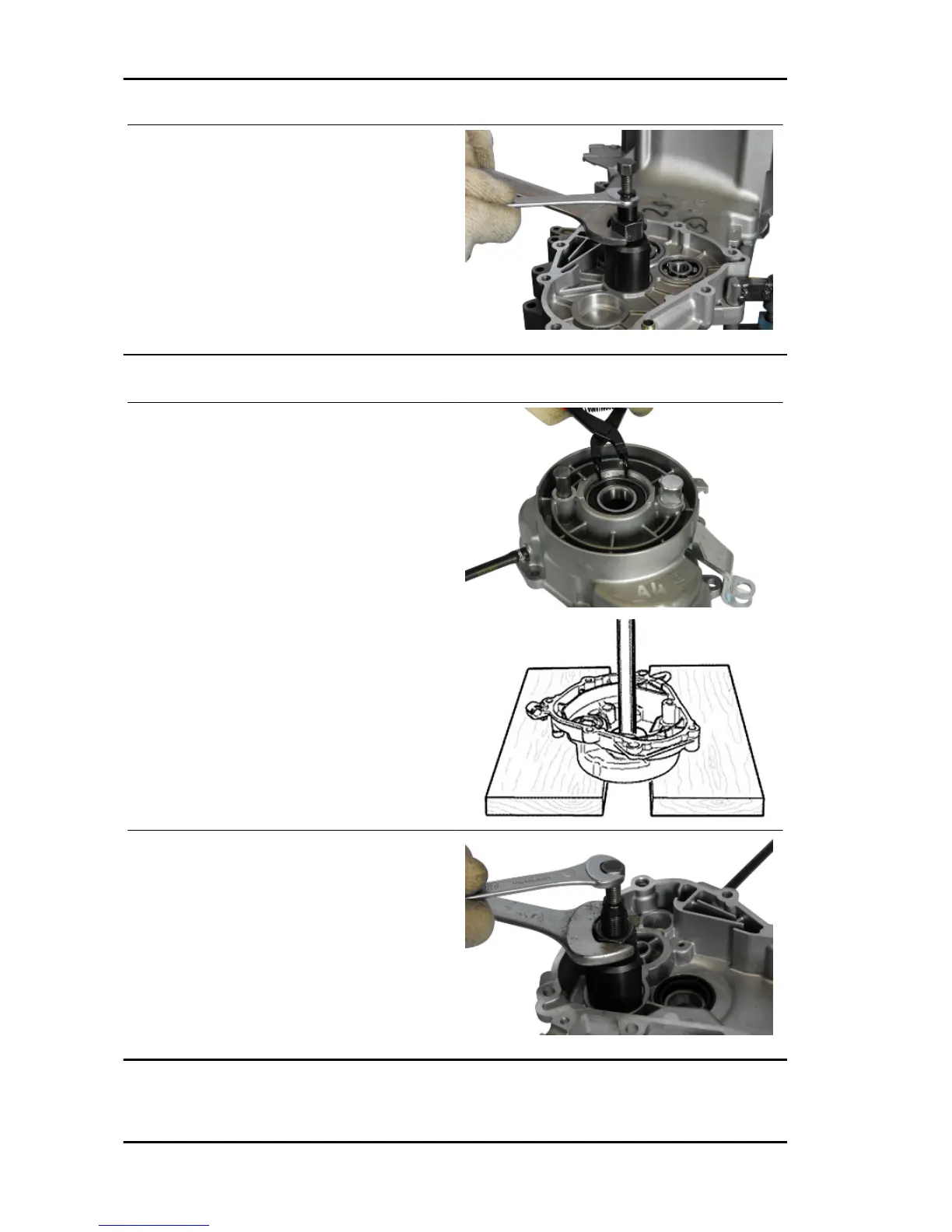

Removing the Wheel axle bearing
- Remove the bearing using the specific tools .
Specific tooling
001467Y009 Bell for OD 42-mm bearings
001467Y013 Calliper to extract ø 15-mm bear-
ings
Removing the wheel axle bearings
- Support the hub cover properly to avoid damag-
ing the sealing surface with the crankcase
- Remove the Seeger ring from the outside.
- Operating on the inside, remove the oil seal.
- Remove the wheel axle bearing using the specific
tool.
Specific tooling
020376Y Adaptor handle
020364Y 25-mm guide
020359Y 42 x 47-mm Adaptor
Removing the intermediate gear bearing
- Using the specific tools remove the bearing.
Specific tooling
001467Y013 Calliper to extract ø 15-mm bear-
ings
001467Y009 Bell for OD 42-mm bearings
Engine Vespa LX - S 125 3V ie 150 3V ie (2012)
ENG - 130
