Vespa LX 2012 User Manual

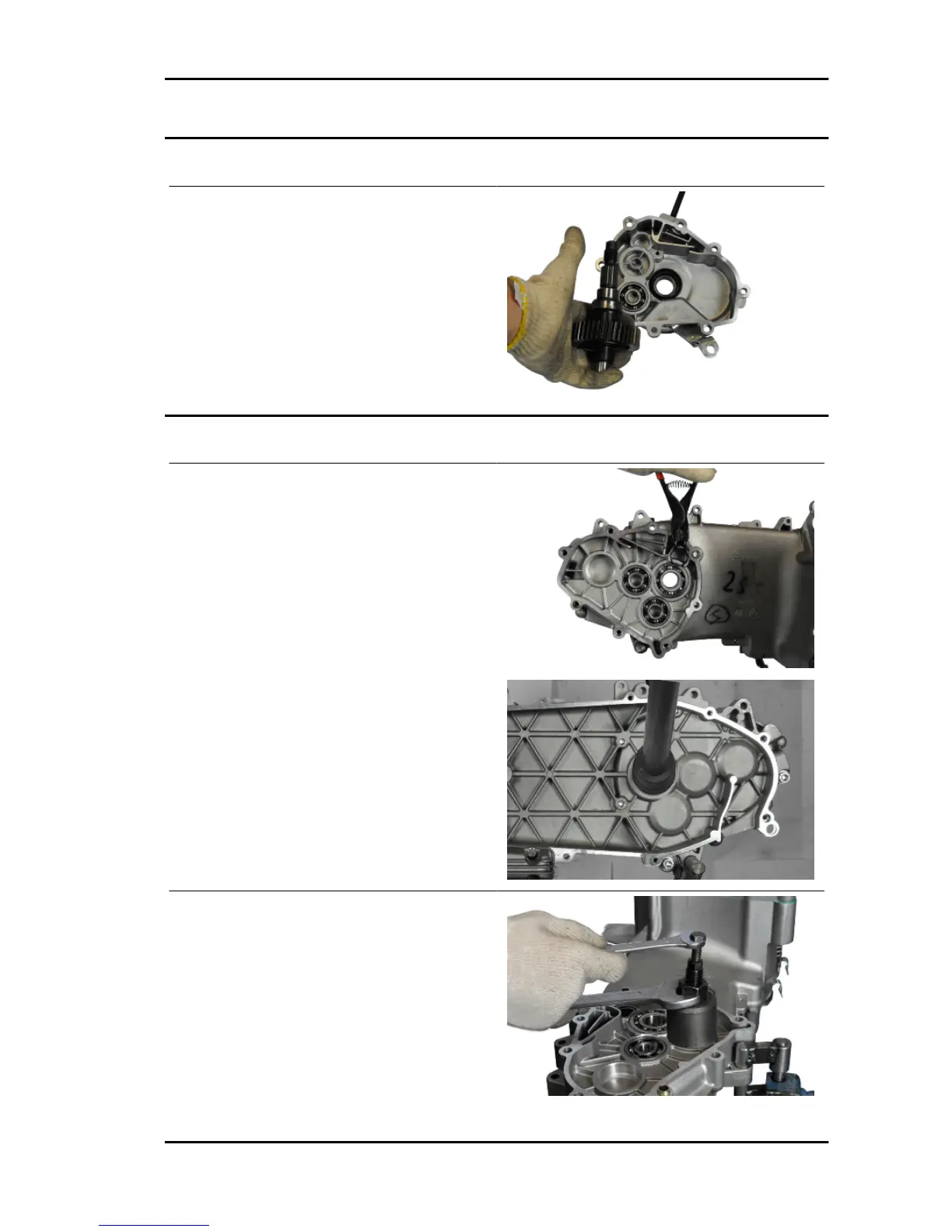

Removing the wheel axle
- Remove the intermediate gear.
- Remove the wheel axle.
Removing the hub bearings
Removing the clutch shaft bearing
- Remove the Seeger ring.
- Remove the oil seal from the opposite side.
- Remove the bearing working from the external
side and using the specific tools.
Specific tooling
020376Y Adaptor handle
020363Y 20-mm guide
020359Y 42 x 47-mm Adaptor
Removing the intermediate gear bearing
- Remove the bearing using the specific tools .
Specific tooling
001467Y009 Bell for OD 42-mm bearings
001467Y013 Calliper to extract ø 15-mm bear-
ings
Vespa LX - S 125 3V ie 150 3V ie (2012) Engine
ENG - 129
