Vespa LX 2012 User Manual

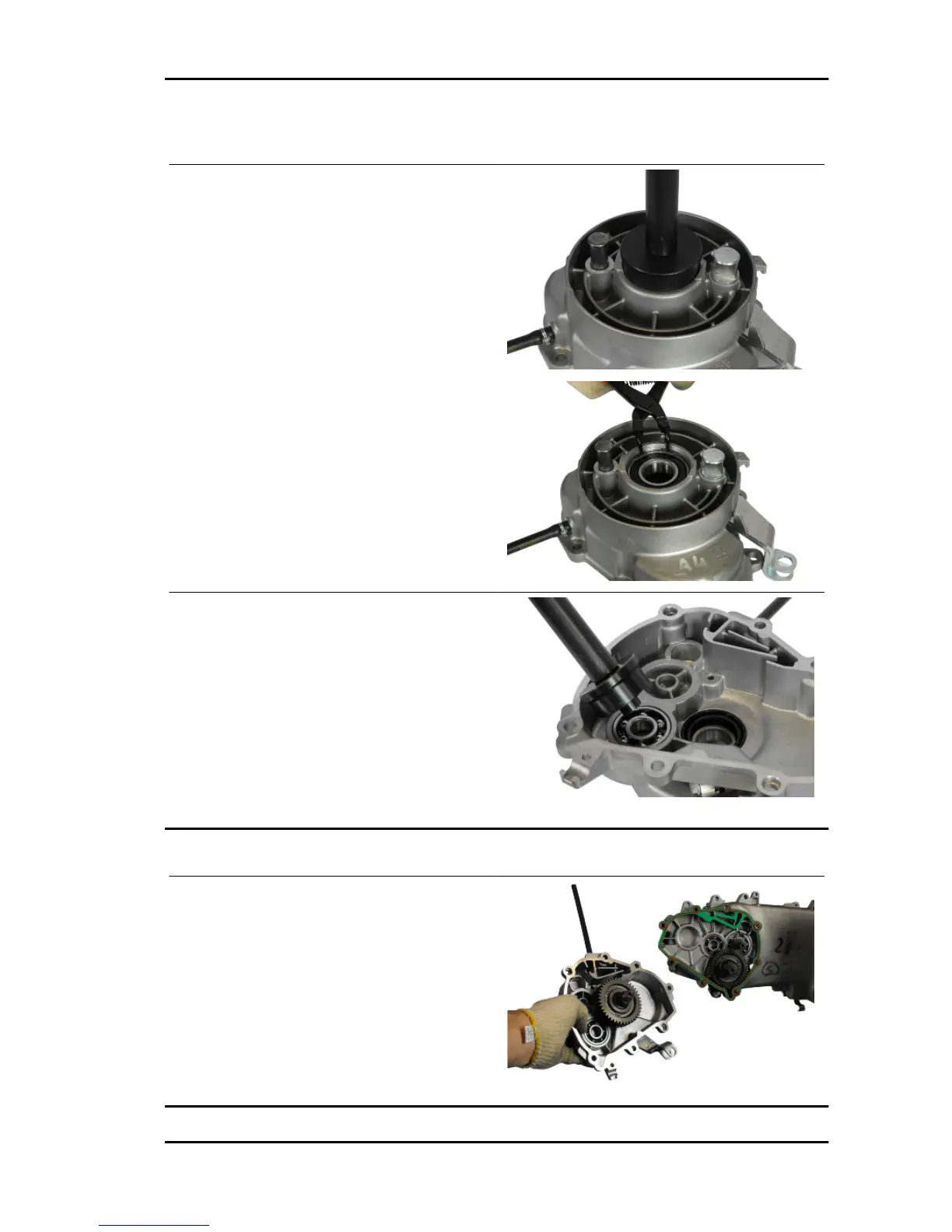

Refitting the hub cover bearings
Fitting the Wheel axle bearing
- Use the heat gun to heat the bearing seat.
- Plant a new bearing using the equipment, apply
grease on the adapter and guide in order to main-
tain the position of the bearing during operation on
the vertical axis.
- Insert the Seeger ring.
Specific tooling
020151Y Air heater
020376Y Adaptor handle
020360Y 52 x 55-mm Adaptor
020364Y 25-mm guide
Fitting the transmission gear bearing
- Use the heat gun to heat the bearing seat.
- Using the equipment set a new bearing.
Specific tooling
020151Y Air heater
020376Y Adaptor handle
020359Y 42 x 47-mm Adaptor
020412Y 15-mm guide
Refitting the hub bearings
- Insert the gears in the cover in order to prevent
abnormal movements during insertion into the en-
gine.
- Insert the wheel axis.
Vespa LX - S 125 3V ie 150 3V ie (2012) Engine
ENG - 133
