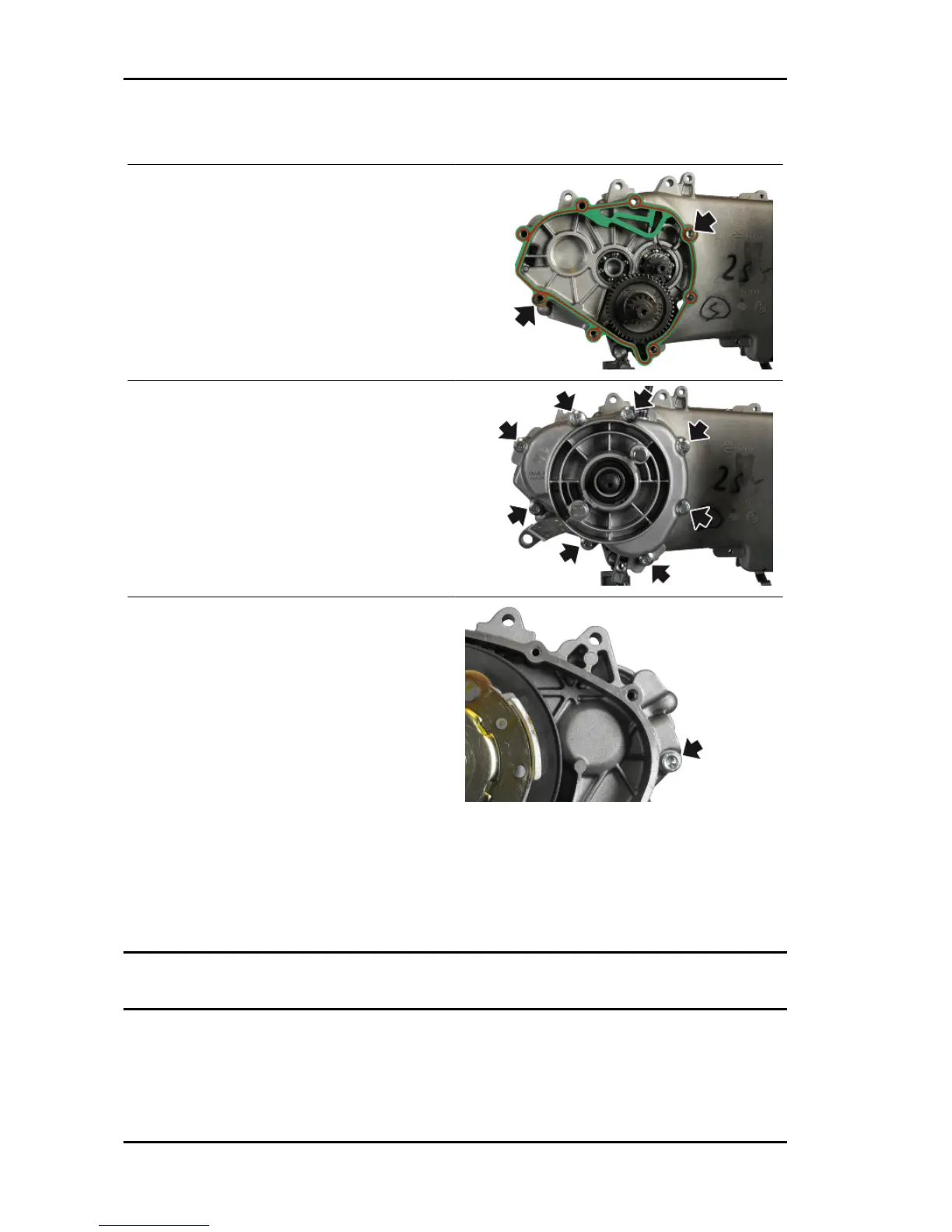

Refitting the ub cover
- Clean the engine crankcase and reduction cover
surfaces adequately.
- Working in reverse with respect to the disassem-
bly, inert the command pinion and the intermediate
gear into the hub box.
- Pay attention to the correct positioning of the
alignment dowels.
- Insert the gasket.
- Insert the gears of the reduction unit in the re-
duction cover and tighten the screws to the speci-
fied torque, tightening in crossed sequence.
- Check the correct the tightening drainage screw.
Locking torques (N*m)
Hub cover fixing screws 23.53 to 26.48 Reduction
unit oil drainage screw 15 to 17
- Restore the level of oil inside duction unit with the
recommended product, acting on the filler screw
until touching.
- Tighten to the specified torque.
Recommended products
AGIP GEAR SAE 80W-90 Lubricant for gear-
boxes and transmissions.
API GL-4
Characteristic
Hub oil
200 cm³
Locking torques (N*m)
Oil relief screw 15 to 17
Flywheel cover
Engine Vespa LX - S 125 3V ie 150 3V ie (2012)
ENG - 134

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
