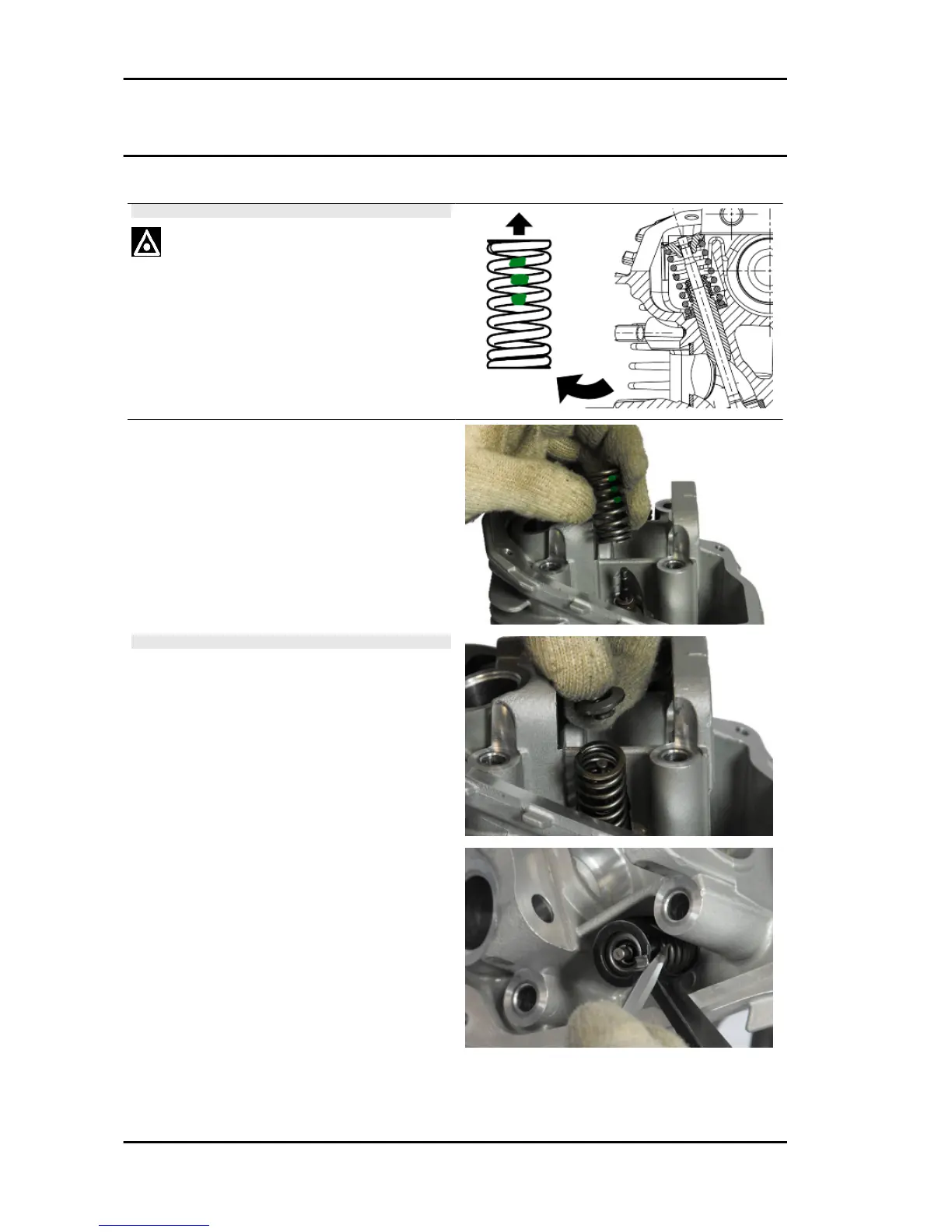

Cylinder Head
Refitting the valves
CAUTION
MOUNT THE VALVE SPRINGS WITH THE GREEN COL-
OURED COIL FACING UPWARD.
- Lubricate the valve guides with engine oil.
- Place the valve spring supports on the head.
- Using the special punch, fit the three valve seal
rings alternately.
- Fit the valves, the springs and the spring retaining
caps. Using the appropriate tool with adapter,
compress the springs and insert the cotters in their
seats.
N.B.
DO NOT CHANGE THE POSITIONS THE VALVES ARE FIT-
TED IN FIT THE VALVE SPONGES WITH THE REFERENCE
COLOUR ON COTTER SIDE (TURNS WITH GREATER
PITCH).
Specific tooling
020382Y Valve fitting/ removal tool
020431Y Valve oil seal extractor
Engine Vespa LX - S 125 3V ie 150 3V ie (2012)
ENG - 158
