Inspecting the cam shaft
N.B.
TO MEASURE WEAR LIMITS AND COUPLING CLEARANCES, SEE THE SPECIFICATIONS CHAP-
TER.
See also
Cylinder Head
Refitting the head and timing system components

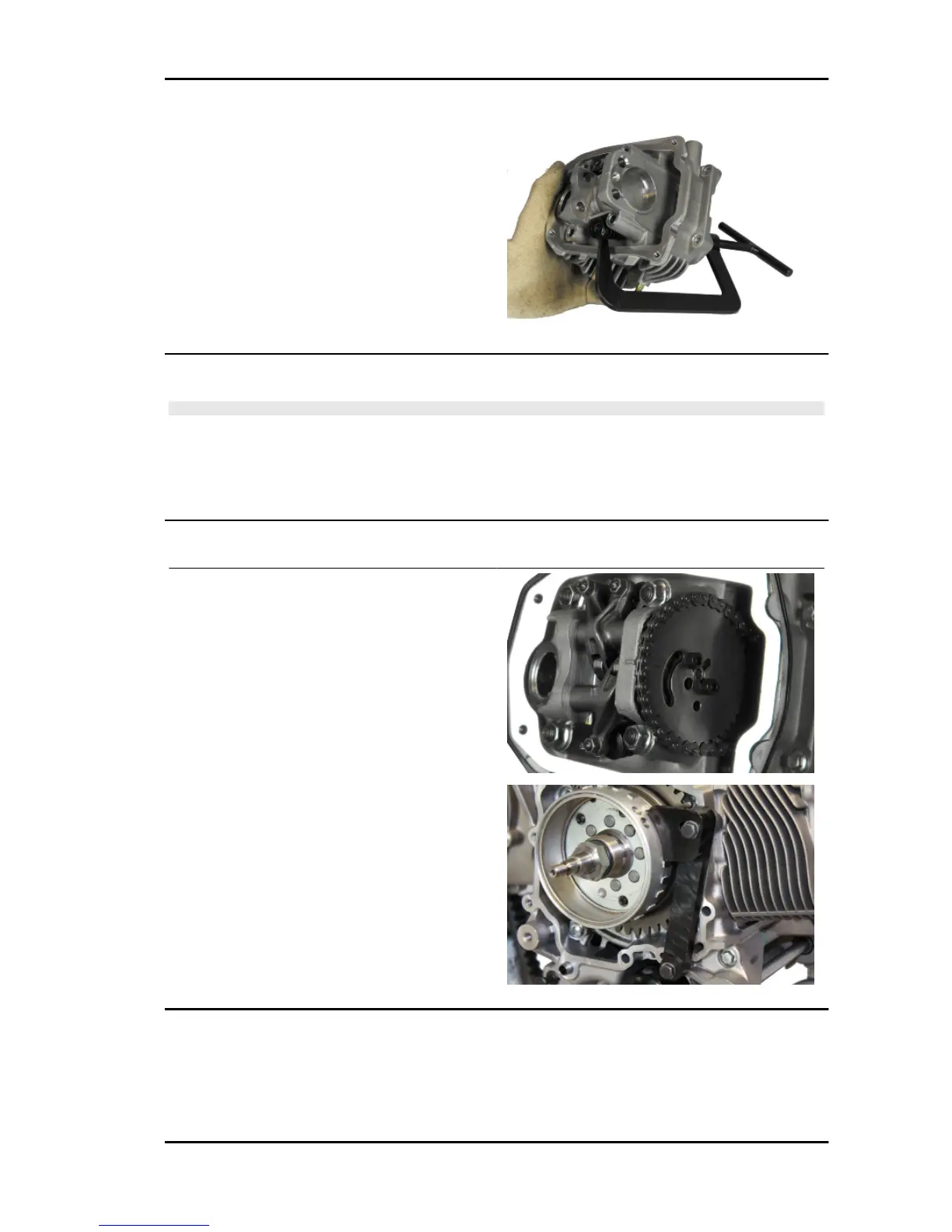

- Position the crankshaft to the TDC in compres-
sion
- Insert the head gasket and check the correct operation of the alignment dowels.
- Insert the chain guide slider.
- Insert the head.
- Lubricate the stud bolt threads with engine oil.
Vespa LX - S 125 3V ie 150 3V ie (2012) Engine
ENG - 159

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
