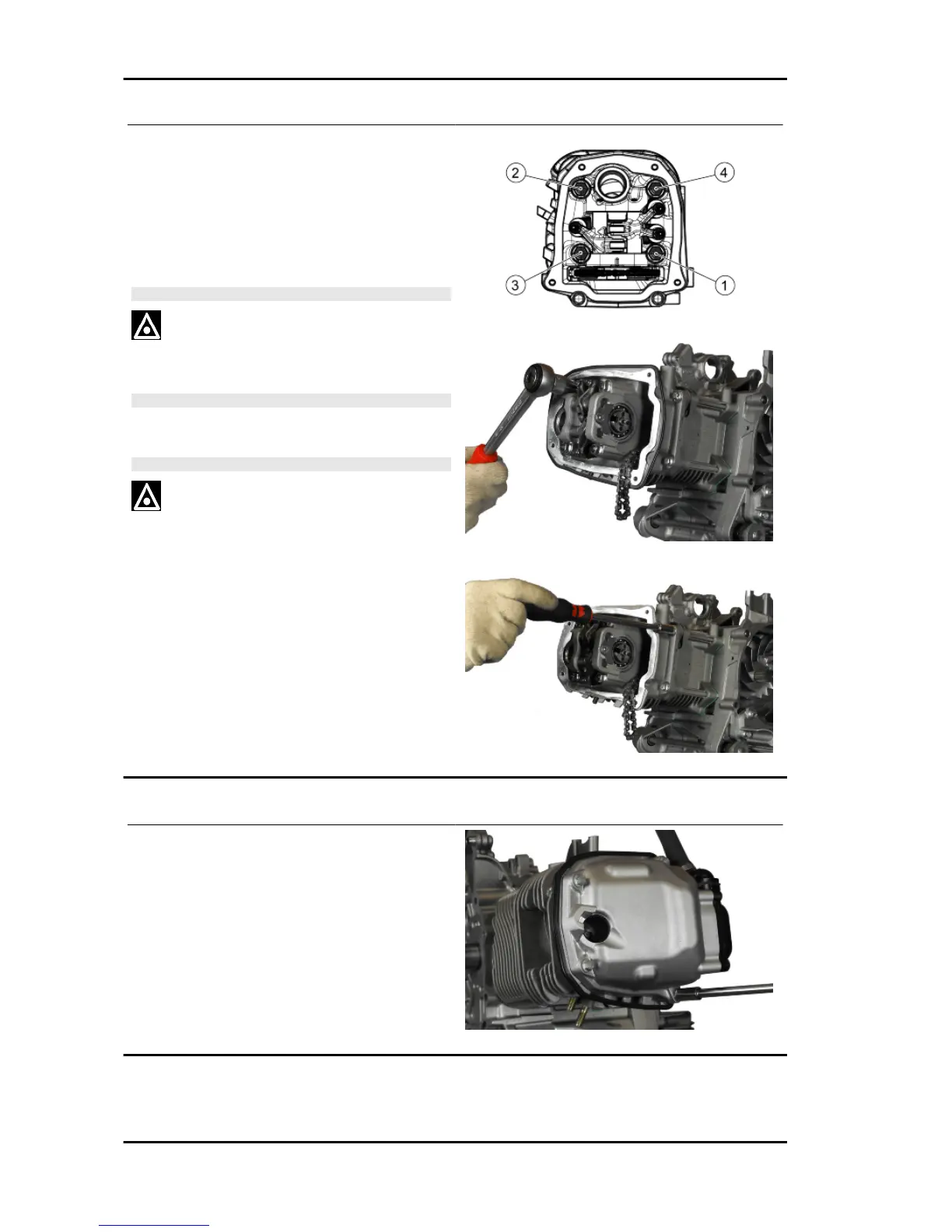

- Tighten the nuts to an initial pre-torque of 9-11
Nm.
- Tighten up the nuts by rotating 270.0±5.0° with
crossed sequence.
- Fit the two screws on the outside of the timing
chain side and tighten them to the specified torque.
CAUTION
DO NOT PERFORM 270° IN ONE ROTATION. PERFORM
WITH THREE GRADUAL ROTATIONS, OBSERVING THE
SEQUENCE INDICATED ON THE STUD BOLTS.
N.B.
BEFORE INSTALLING THE HEAD, MAKE SURE THAT THE
LUBRICATION CHANNEL IS CLEAN USING A COM-
PRESSED AIR JET.
CAUTION
ALWAYS USE A NEW HEAD GASKET UPON REFITTING.
Locking torques (N*m)
Cylinder head nut (TIGHTENING) 9 to 11 (Tighten
to the prescribed torque and then proceed with 270.0°±5.0°
rotation) Screws fixing cylinder to crankcase 10.8
to 12.7
Refitting the rocker-arms cover
- Remove the cylinder head cover and tighten the
four clamping screws to the prescribed torque.
- Pay attention to the integrity of rubber gaskets,
replace them if necessary.
- Make sure the gasket is positioned properly.
Locking torques (N*m)
Head cover screws 10.8 to 12.7
Refitting the intake manifold
- Follow the disassembly process in reverse order to refit.
Engine Vespa LX - S 125 3V ie 150 3V ie (2012)
ENG - 160

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
