Vespa LX 2012 User Manual

- Pistons and cylinders are classified according to diameter. The coupling is carried out in pairs (A-A,
B-B, C-C, D-D).
Crankcase - crankshaft - connecting rod
CRANKSHAFT
Titolo Durata/Valore Testo Breve (< 4000 car.) Indirizzo Immagine
Crankshaft Axial clearance between
crankshaft and connecting rod

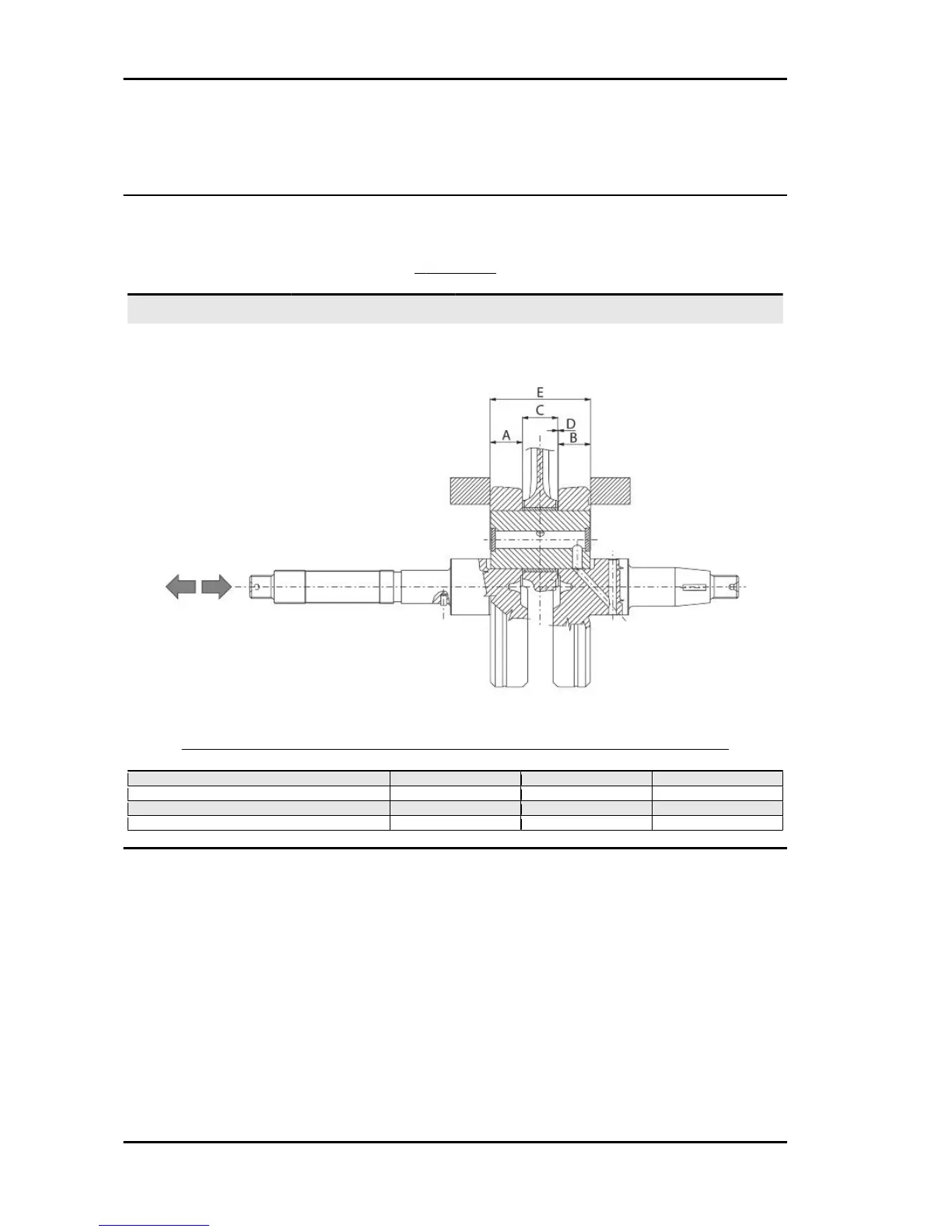

Axial clearance between crankshaft and connecting rod
AXIAL CLEARANCE BETWEEN CRANKSHAFT AND CONNECTING ROD
Name
Code Sizes Assembly clearance
Half-shaft, transmission side A 18.1 (+0; -0.05) mm D = 0.20 - 0.50
Flywheel-side half shaft B 18.1 (+0; -0.05) mm D = 0.20 - 0.50
Connecting rod C 15 (-0.10; -0.15) mm D = 0.20 - 0.50
Spacer tool E 51.4 (+0; +0.05) mm D = 0.20 - 0.50
Diameter of crankshaft bearings.
Measure the bearings on both axes x-y.
Characteristics Vespa LX - S 125 3V ie 150 3V ie (2012)
CHAR - 16

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
