The fuel system pressure is kept constant in relation to ambient pressure.
The fuel system circuit consists of:
- Fuel pump
- Fuel filter
- Injector
- Pressure regulator
The pump, the filter and the regulator are placed inside the fuel tank on a single support.
The injector is connected by a pipe with fast-release fittings. The pressure regulator is located at the
beginning of the circuit.
The fuel pump is controlled by the MIU; this ensures safety of the vehicle.
The ignition circuit consists of:
- HV coil
- HV cable.
- Shielded cap
- MIU control unit
- Spark plug
The MIU control unit manages ignition with the best advance ensuring four-stroke timing (ignition only
in the compression phase) at the same time.
The MIU injection-ignition system controls engine functions by means of a pre-set program.
Should any input signals fail, an acceptable working order of the engine is ensured to allow the user to
reach a service station.
Of course, this cannot happen when the rpm-timing signal is missing, or when the failure involves the
control circuits:
- Fuel pump
- HV coil
- Injector

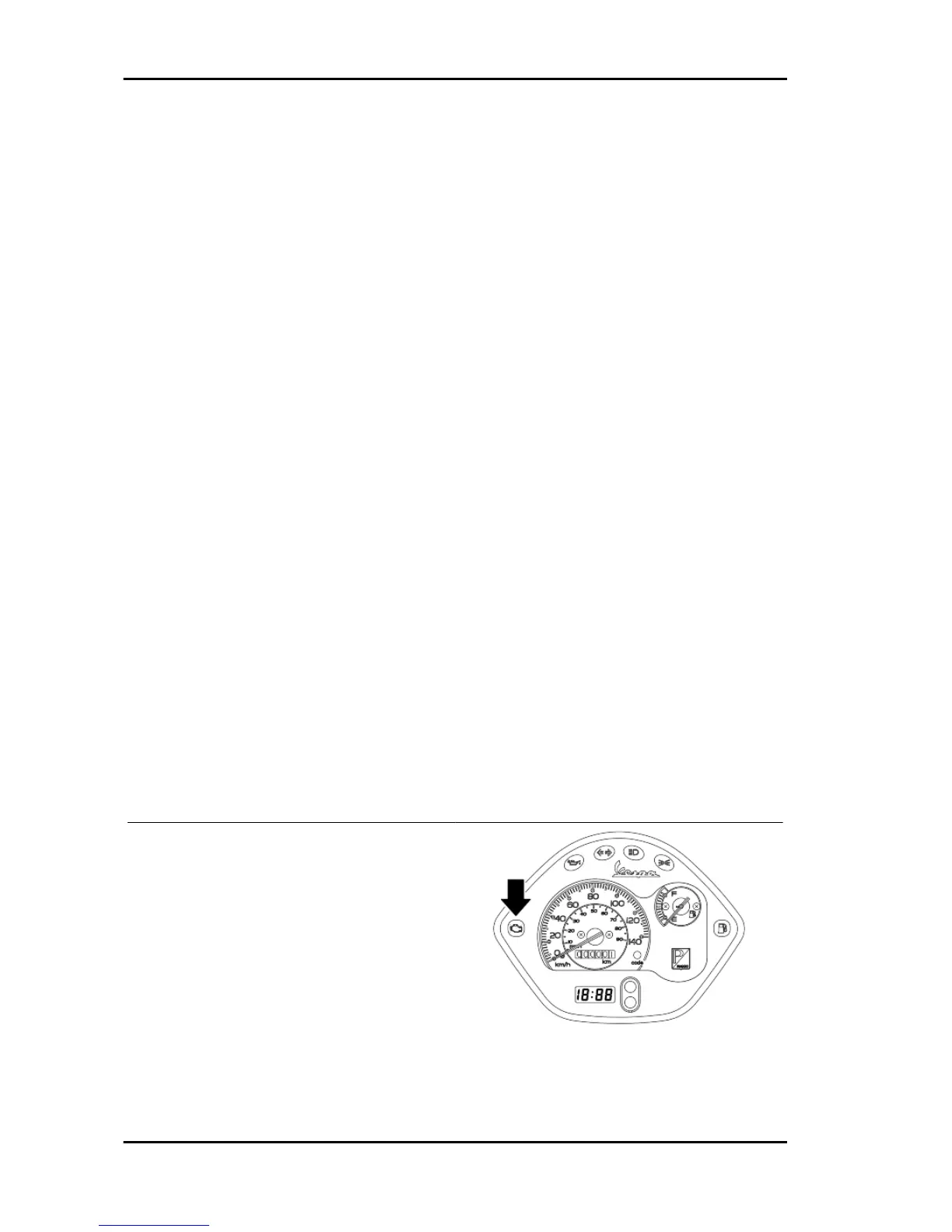

The control unit is provided with a self-diagnosis
system connected to an indicator light in the in-
strument panel.
Injection Vespa LX - S 125 3V ie 150 3V ie (2012)
INJEC - 176

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
