Vespa LX 2012 User Manual

Failures are detected and restored by the diagnostic tester.
In any case, when the fault is no longer present, the data storage is automatically cleared after 16 cycles
of use (cold start, running at regular engine temperature, stop).
The diagnostic tester is also required to adjust the idle mixture.
Specific tooling
020922Y Diagnosis Tool
The MIU control unit has a decoder for the anti-
theft immobilizer system.

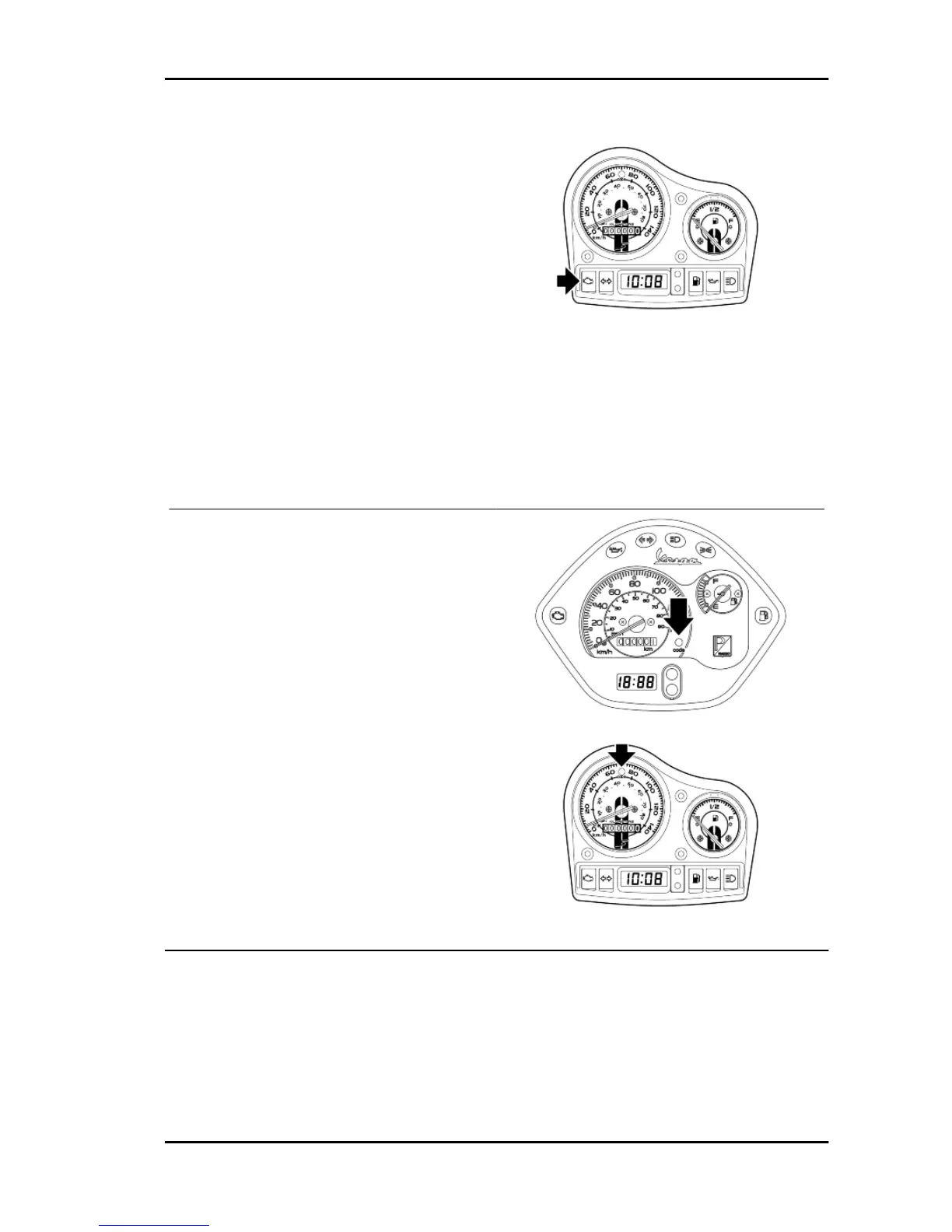

The MIU control unit is connected to a diagnostic
LED on the instrument panel, that also carries out
the deterrent flashing functions.
Precautions
Troubleshooting tips
1 A MIU failure is more likely to be due to the connections than to the components.
Before troubleshooting the MIU system, carry out the following checks:
A: Electrical power supply
a. Battery voltage
Vespa LX - S 125 3V ie 150 3V ie (2012) Injection
INJEC - 177
