Vespa LX 2012 User Manual

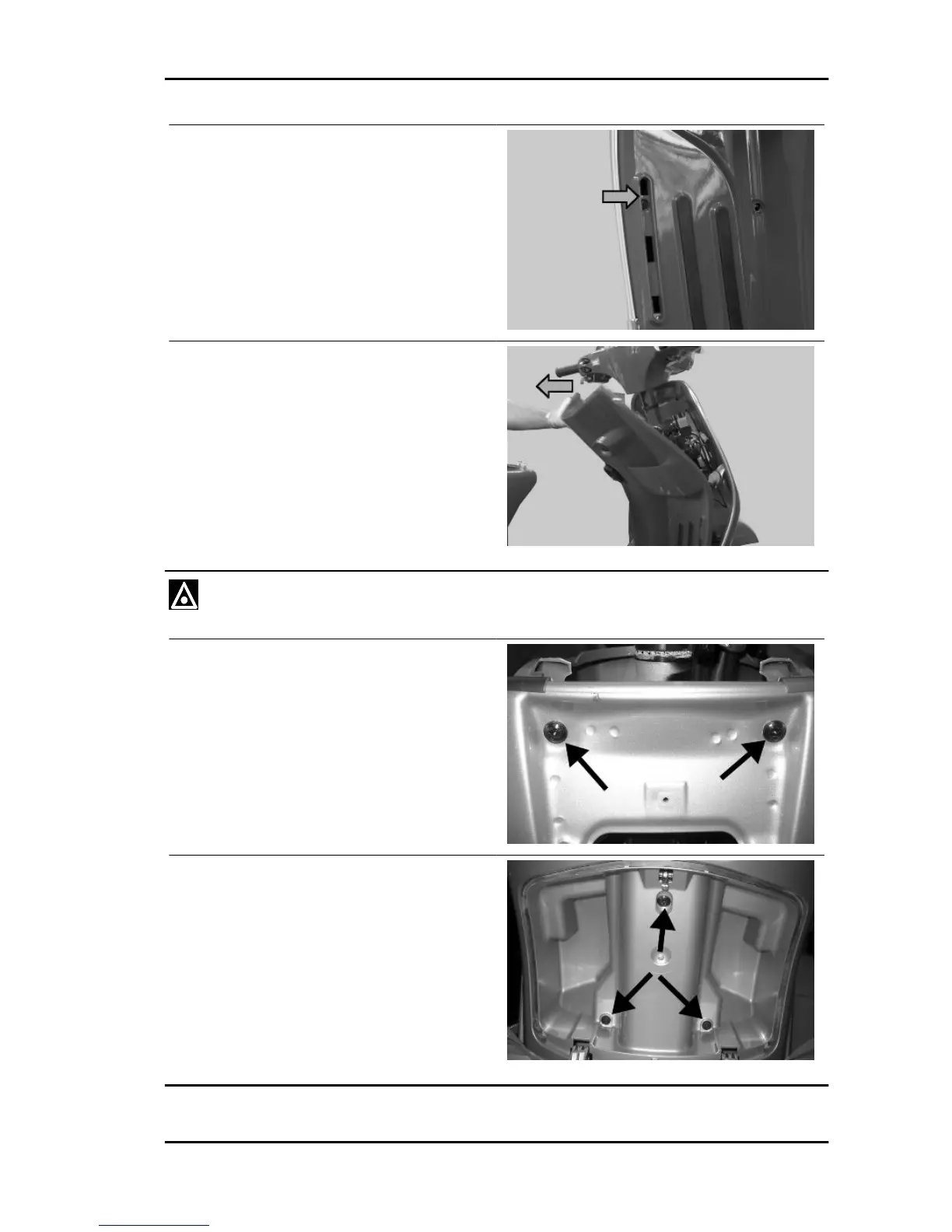

- Remove the rubber strip from both sides and un-
do the indicated screw.
- Remove the leg shield back plate bringing it to
the rear part of the vehicle.
THE FOLLOWING INDICACTIONS REFER TO THE LX VERSION.
- Unscrew the two screws shown in the figure
placed under the front central cover.
- Remove the 3 screws shown in the figure, placed
inside the glove-box; they can be reached opening
the glove-box door.
- Remove the shield back plate by pulling it up-
wards.
Vespa LX - S 125 3V ie 150 3V ie (2012) Chassis
CHAS - 241

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
