Slot packing system
Characteristic
Compression ratio
(10.5±0.5):1

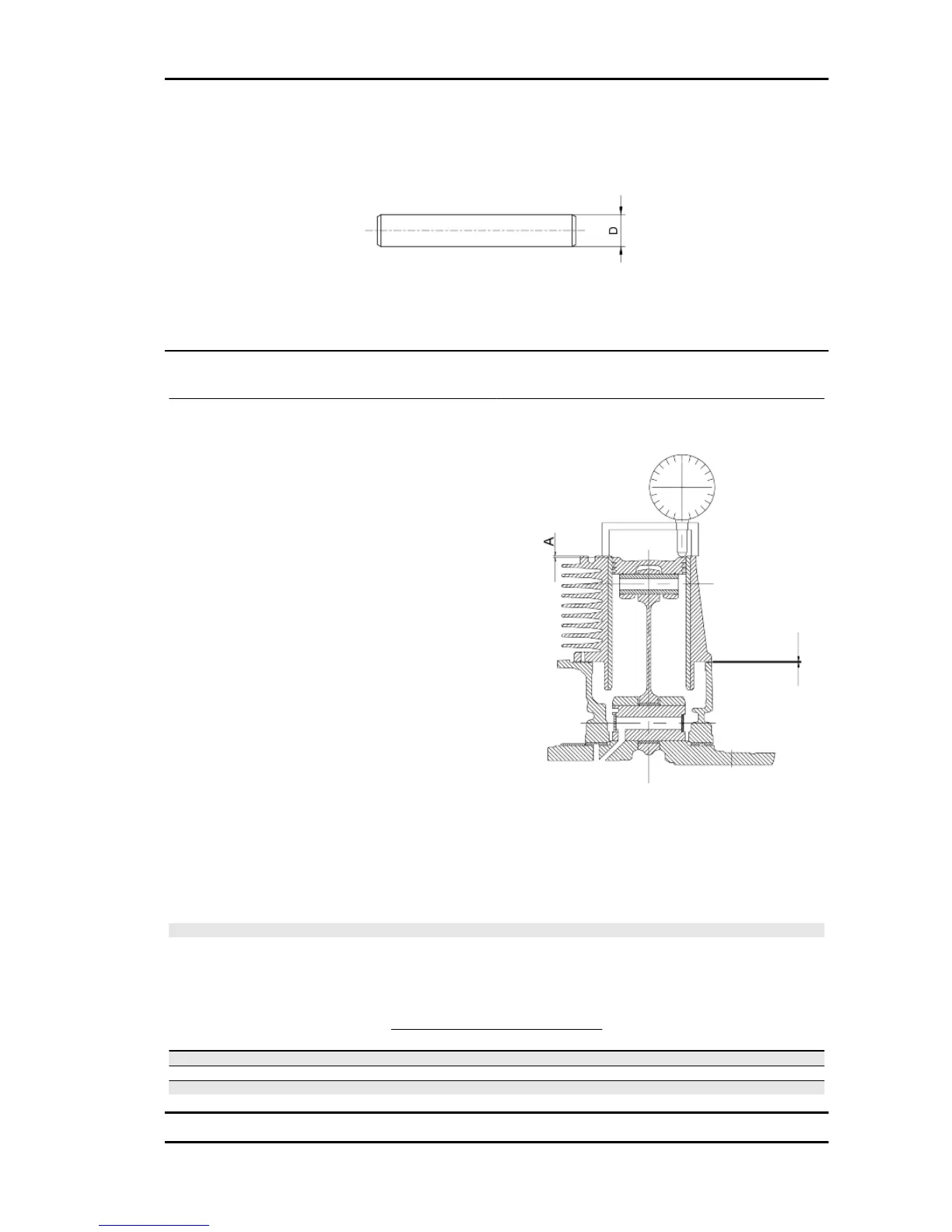

Measurement "A" to be taken is a value of piston re-entry, it indicates by how much the plane formed
by the piston crown falls below the plane formed by the top of the cylinder. The further the piston falls
inside the cylinder, the less the base gasket to be applied (to recover the compression ratio) and vice
versa.
N.B.
MEASUREMENT "A" MUST BE TAKEN WITHOUT ANY GASKET FITTED BETWEEN THE CRANK-
CASE AND CYLINDER AND AFTER RESETTING THE DIAL GAUGE, EQUIPPED WITH A SUP-
PORT, ON A GROUND PLANE
ENGINE 125/150 SHIMMING
Name
Measure A Thickness
Shimming 0 to -0.1 0.8 ± 0.05
Shimming -0.1 to -0.3 0.6 ± 0.05
Shimming -0.3 to -0.4 0.4 ± 0.05
Vespa LX - S 125 3V ie 150 3V ie (2012) Characteristics
CHAR - 25

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
