STANDARD DIAMETER
Specification Desc./Quantity

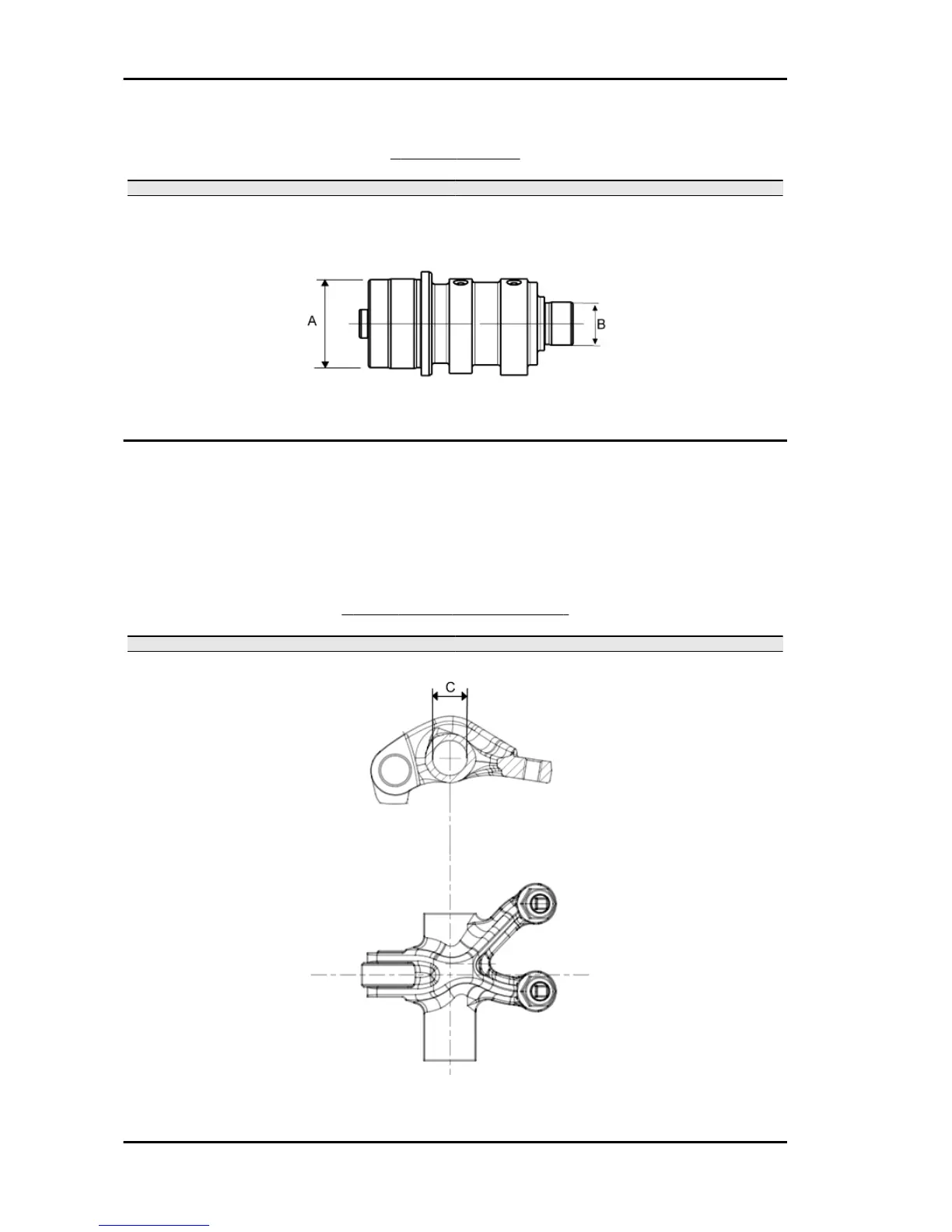

Camshaft check: Standard diameter Bearing A Ø: 25.002 to 25.015 mm
Camshaft check: Standard diameter Bearing B diameter: 12.002 to 12.013 mm
- Measure the outside diameter of the rocking lever pins
- Check the rocking lever pins do not show signs of wear or scoring.
- Measure the internal diameter of each rocker.
Check there are no signs of wear on the slider from contact with the cam and on the jointed adjustment
plate.
ROCKING LEVERS AND PIN DIAMETER:
Specification
Desc./Quantity
Rocking lever inside diameter: Standard diameter (C) Ø 10.015 to 10.035 mm
Rocking lever pin diameter: Standard diameter (D) Ø 10.015 to 10.023 mm
Characteristics Vespa LX - S 125 3V ie 150 3V ie (2012)
CHAR - 24

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
