Vicon Extra 124 - Adjusting Stubble Height

Operation
38
Stubble height
The stubble height is adjusted as follows:
 Lower the cutting unit to the ground.

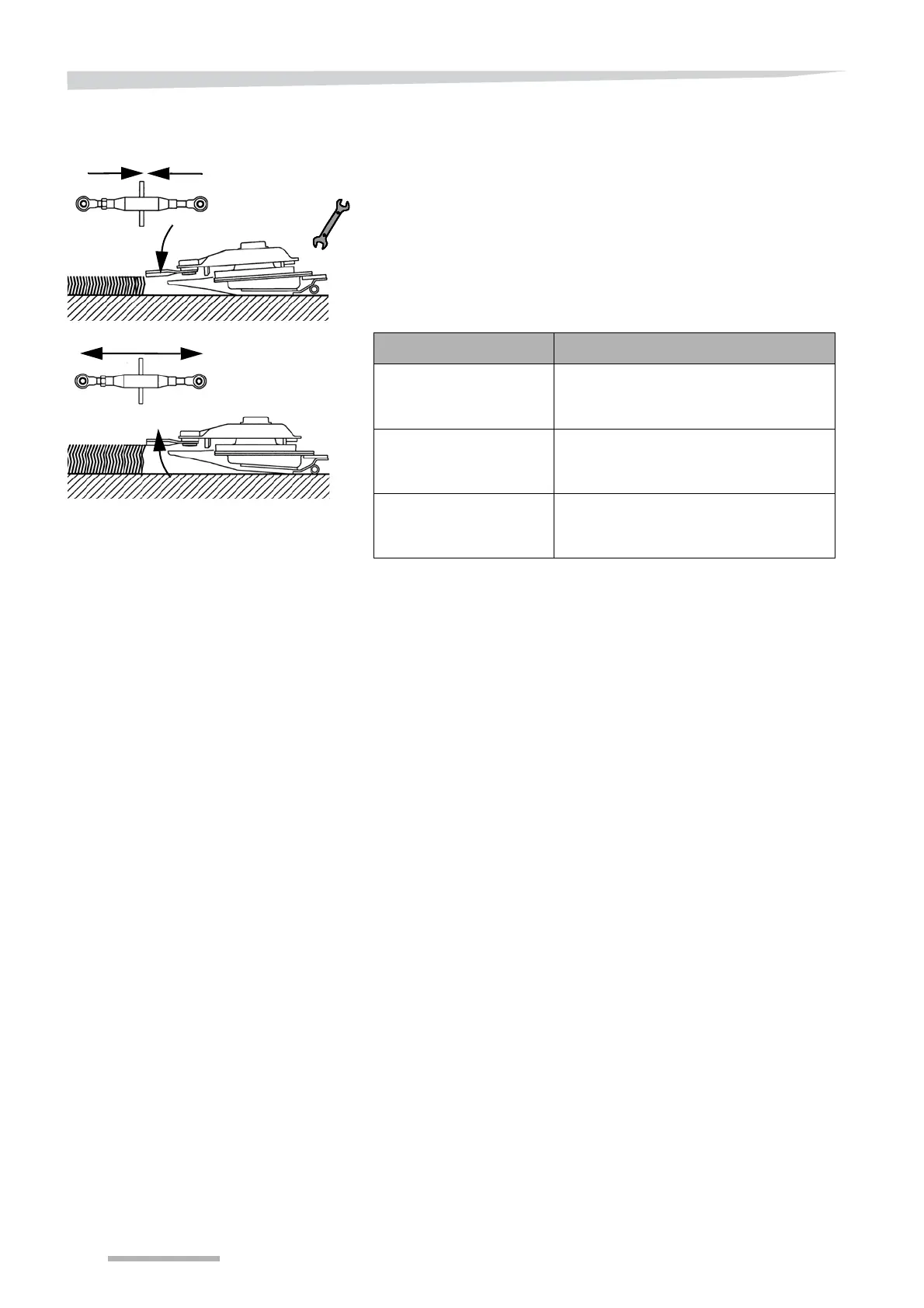

 Set the stubble height by adjusting the top link.
• Making the top link shorter reduces the stubble height
• Making the top link longer increases the stubble height.
The stubble height can be combined with fitting high skids* which can
be used to set the stubble height as follows:
* Extra equipment.
 »Optional equipment« page 84
Stubble height Note
25  70 mm 20 mm skids fitted
1”  2
3
/4”
3
/4” skids fitted
50  100 mm 40 mm skids fitted
2”  4”
1
9
/16” skids fitted
100 mm  80 mm skids fitted
4” 
3
1
/8” skids fitted
