Vicon Extra 124 - Mowing on Slopes and Turning at Headlands

Operation
41

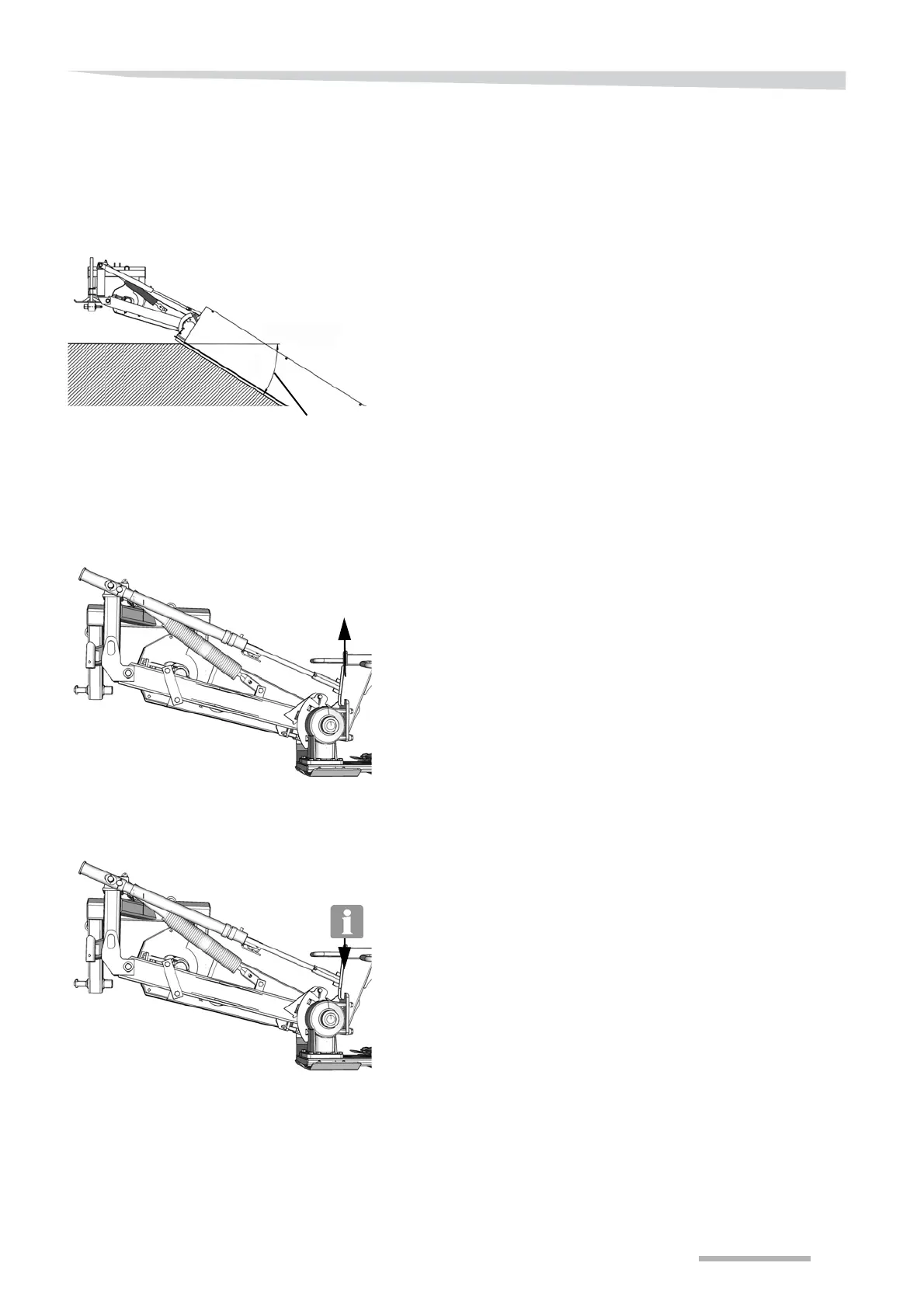

Mowing upwards on
sloping ground
Grass can be mown upwards on a slope, where the tractor is running
on a horizontal plane and the cutterbar is running upwards on a slope,
in the following way:
 Pull in the nylon string and release the lock catch.
 Activate the tractor's hydraulic system and tilt the cutterbar up with
the hydraulic cylinder.
 Release the nylon string.
Grass can be mown downwards on a slope in the following way:
 Activate the tractor's hydraulic system and tilt the cutterbar down
with the hydraulic cylinder.
The cutterbar can be tilted up to a maximum of 45
o
from horizontal.
Turning at headlands
Turning at the headland is performed in the following way:
 Activate the tractor's hydraulic system and raise the cutting unit.
 Turning at the headlands.
 Activate the tractor's hydraulic system and lower the cutting unit
down.
Ensure that the moving parts are lubricated. Otherwise, the lift function
will not function correctly.
 »Lubrication« page 54
Max 45
o
